Industrial
A1
Accessories and Spare Parts
Accessories
Strainer – To improve priming and minimize debris entering the pump, it is recommended that a strainer be used with the system. A strainer is provided with the pump. Additional foot valve and strainer options are available.
Injector – An injector is provided with the pump for injecting into piping and vessels. It can also be used to prevent siphoning when pumping downhill. A standard injector is provided with the pump. Additional injector options are available.
Tubing (Suction and Discharge) – A 5’ length of clear PVC suction tubing and PE discharge tubing are provided with the pump. Additional tubing options and lengths are available.
Wall Mount Bracket (Shelf) – Blue-White offers a sturdy polyethylene Wall Mount Bracket for easy mounting on a shelf.
Tanks – Blue-White has a variety of tank systems and cylindrical tanks available.
Additional piping accessories– Blue-White can provide additional items for your system including pressure gauges, pressure switches, pressure relief valves, calibration columns, back-pressure valves, pulsation dampeners, and strainers.
Complete Skids – Blue-White manufactures complete skids systems for ease in installation and set-up. Visit our skid page for options.
Spare Parts

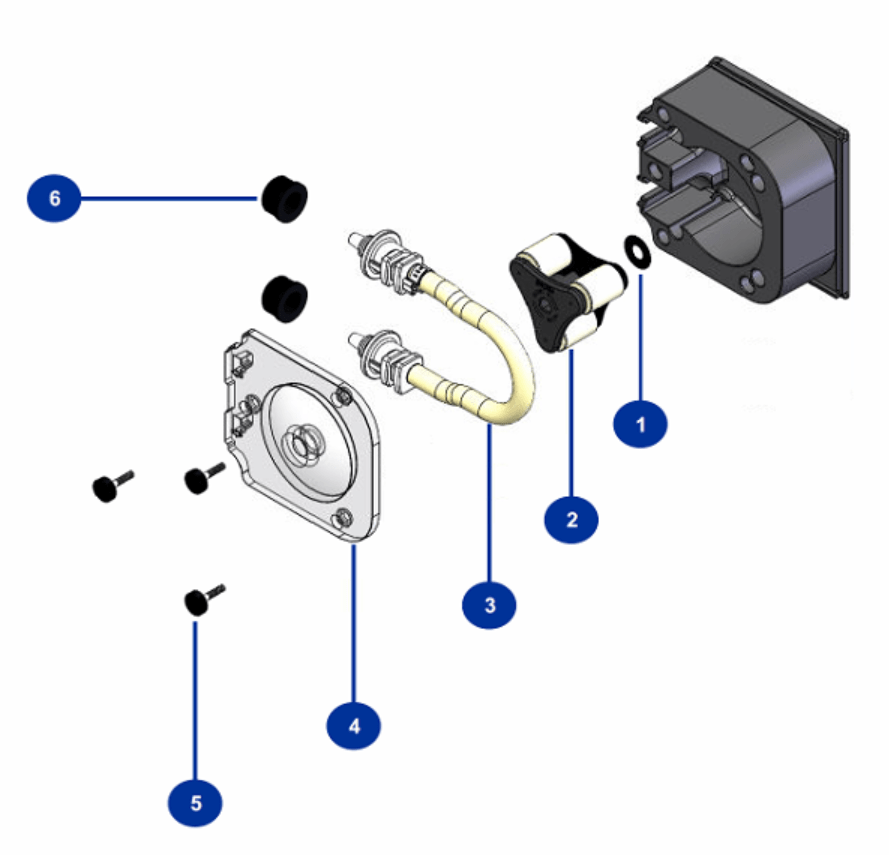

The A1 Pump complete spare parts list is located in the Instruction Manual. Recommended spare parts are list below:
| ITEM NO. | PART NUMBER | DESCRIPTION | QTY |
| 1 | 90011-014 | Spacer, Back | 1 |
| 2 | 71000-350 | Roller Assembly (Rotor) for use with A1-1T, A1-2T, A1-3T, and A1-7T tubes | 1 |
| 2 | 71000-159 | Roller Assembly (Rotor) for use with A1-4T, and A1-6T tubes | 1 |
| 2 | 71000-255 | Roller Assembly (Rotor) for use with A1-8T tubes | 1 |
| 3 | A1-1* | Tube Assembly, ¼” OD, Flex-A-Thane® | 1 |
| 3 | A1-3* | Tube Assembly, 7/16” OD, Flex-A-Thane® | 1 |
| 3 | A1-4* | Tube Assembly, ¼” OD, Flex-A-Prene® | 1 |
| 3 | A1-6* | Tube Assembly, 3/8 OD, Flex-A-Prene® | 1 |
| 3 | A1-7* | Tube Assembly, 7/16” OD, Flex-A-Prene® | 1 |
| 3 | A1-8* | Tube Assembly, 7/16” OD, Flex-A-Chem® | 1 |
| 4 | A1-SXX-C | Pump Head Cover, Acrylic | 1 |
| 5 | 90011-160 | Thumb Screw with 9/64” key drive (maximum torque 6-8 in-lbs) | 3 |
| 6 | C-330-6 | Tube Nut, Compression, for 3/8” Tubing | 2 |
| 7 | 90002-684 | Touchpad Cover, Polycarbonate | |
| * specify fitting T = ¼” x 3/8” tubing connection, M = ½” MNPT, MB = ½” Male BSPT (example, A1-1M) | |||
FAQs
Frequently Asked Questions
A1 Accessories and Spare Parts
- Do I have to buy M12 cables from Blue-White or can I buy from other vendor?
No, it is not required to use Blue-White's M12 cables but it is recommended to use M12 cables supplied by Blue-White. The wires are color coded to the Blue-White instruction manual tables.
