MS6

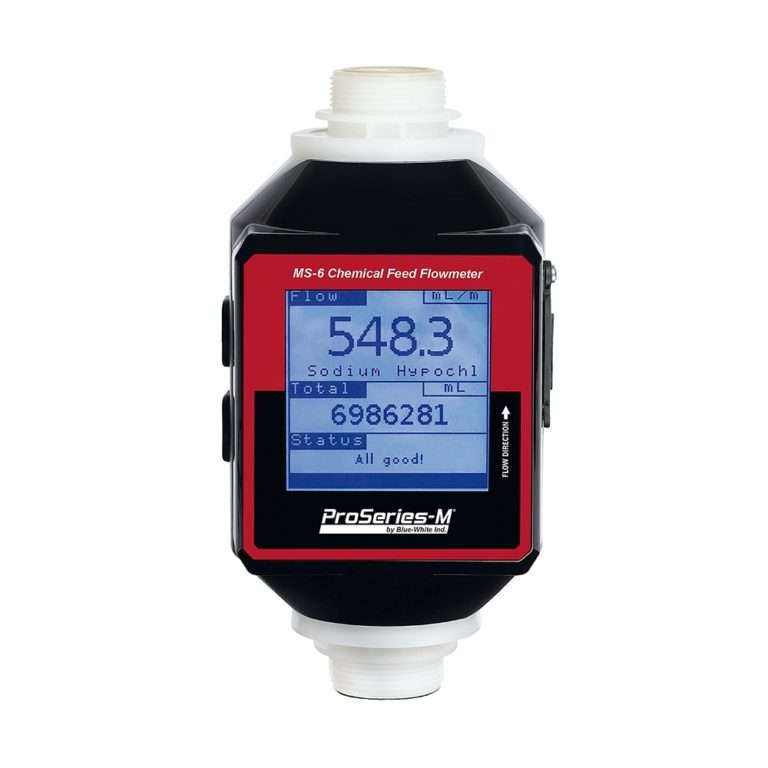

SONIC-PRO® Chemical Feed Flow Meter

The MS6 accurately measures liquid chemical feed from ranges of 10 – 5,000 mL/min and 100 -10,000 mL/min.  This plug-and-play flow meter works right out of the box, but is easily configurable via Blue-Central® desktop software.

Pre-calibrated chemicals include Water, Aqueous Ammonia 10%, Ammonium Hydroxide 30%, Ferric Chloride 40%, Sodium Hydroxide 40%, Sodium Hypochlorite 12.5%, Sodium Permanganate 40%, Hydrofluorosilicic Acid 25%, and Ammonium Sulfate 10%.  Additional chemicals can be calibrated by performing a custom chemical calibration.

Technical Overview:

mL/min
10 - 10000
GPH
.158 - 158.5
PSI
200
Bar
13.78
Fahrenheit (°F)
104
Celsius (°C)
40
Body Material
PVDF, PEEK
Pipe Sizes
½” barb, ½” M/NPT, ½” PVC slip
Literature
3D Visualizer

Features

Benefits:
  • Flow Range 1: 10 – 5,000 mL/min (0.158 – 79.2 GPH)
  • Flow Range 2: 100 – 10,000 mL/min (1.58 – 158.5 GPH)
  • Sensor is NSF 61 Listed
  • Inline pipe fittings for easy installation
  • Configurable via Blue-Central® desktop software
  • Isolated 4-20 mA output – fully configurable
  • 0-10000Hz Pulse output – fully configurable
  • User configurable flow rate and total set-point triggers
  • Flow-rate readings as low as 10 mL/min
  • Included wetted end fittings allow for more than 14 inlet and outlet configurations
  • True unions for ease of maintenance
  • Wetted components constructed out of PVDF and PEEK
  • Quick visual inspection with built in status LED light
  • Process control via configurable solid state relay, which can be configured to close or open trigger at a flow-rate or to flow total for batching operation

Specifications

Electronics/Hardware

SPU (Signal Processing Unit):

Enclosure
  • NEMA 4X (IP66) Polycarbonate, SS hardware.
  • Dimensions: 10.02H x Ø3.79 inches (254.5H x Ø96.1 mm)
  • Weight 1.5 lb. (.68 Kg.)
Power Requirements
  • 5 VDC; 5 watts maximum
Environmental Conditions
  • Operating temp: 14 F to 104 F (-10 C to 40 C)
  • Storage: -40 F to 158 F (-40 C to 70 C)
  • Relative humidity: 0% – 90%
Display
  • Type: Liquid Crystal Display
  • Backlight: White LED backlight
Software Language
  • English
Volume Units
  • Independently configurable Rate and Total units in: U.S. Gallons, Liters, or Milliliters.
Time Units
  • Seconds, minutes, hours, days.
Flow Rate Averaging
  • Selectable: 1, 4, 8, 16, and 32 seconds.
Data Outputs
  • Isolated 4-20 mA output – fully configurable
  • 0-10000 Hz Pulse output – fully configurable
Process Control
  • One Solid State Relay
  • Load capacity: 24VDC, 100mA max (ex. supplied)
  • Configure to flow rate for high/low/range rate trigger. Programmable release values enable auto release or manual latching operation.
  • Configure to flow total for automatically triggered, timed batch operations for proportional feed applications.
Power Supply (user configurable)
  • Includes each of the following:
  • U.S. Transformer, 115VAC 60HZ / 5VDC, NEMA 5/15 plug
  • Europe Transformer, 230VAC 50HZ / 5VDC, CEE 7/V11 plug
  • Australia / New Zealand Transformer, 240VAC 50HZ / 5VDC, AS 3112 plug
  • U.K. Transformer, 230VAC 50Z / 5VDC, BS 1363/A plug

Blue-Central® Software

Software Features
  • Configurable 4-20mA, Pulse Output, Frequency Output,
  • Solid State Relay Set-Point
  • Monitor flow rate in real time
  • Monitor total volume in real time
  • Monitor meter diagnostics
  • Field Upgradable Firmware
  • Factory Resettable
  • TDS #85000-137 rev.17 20191203
Compatible Operating Systems
  • Windows 7, 8, and 10
  • Mac (OSX 10.11/10.12/10.13)
Computer Connector
  • USB-C (USB-A to USB-C cable included)

Wetted Materials

Transducer
  • PEEK
Body
  • PVDF & PEEK
O-Rings
  • TFE/P
  • EP
Fittings (Included)
  • PVDF 1/2” I.D. Barb
  • PVDF 1/2” I.D. Barb Elbow
  • PVDF 1/2” M/NPT
  • PVDF 1/2” M/NPT Elbow
  • PVC 1/2” Slip

General Operation

Pre-Calibrated Chemical Profiles
  • Water
  • Aqueous Ammonia
  • Ammonium Hydroxide
  • Ferric Chloride 40%
  • Sodium Bisulfite 40%
  • Sodium Hypochlorite 12.5%
  • Sodium Permanganate
  • Hydrofluorosilicic Acid 25%
  • Ammonium Sulfate 10%
Compatible Fluid Types
  • Acoustically conductive fluids
  • Particulate and bubbles with 50,000 ppm or less

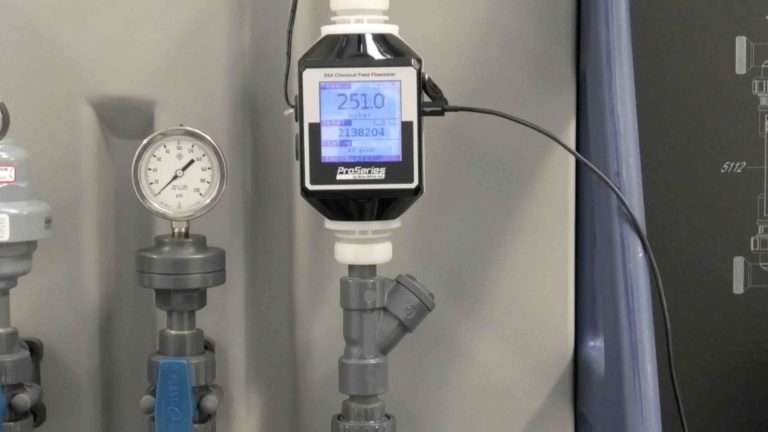

Videos

Replacement Parts

ImageNameCatalog Number

Downloads

Title
Municipal Brochure
287 downloads
95653 11.69 MB July 6, 2022
MS6 Replacement Parts List
52 downloads
78132 515.00 KB February 10, 2022
MS6 Engineering Specifications
179 downloads
76165 30.14 KB February 16, 2022
MS6 Technical Data Sheet – 85000-135
1250 downloads
76164 1.73 MB February 9, 2022
MS6 Instruction Manual – 80000-593
852 downloads
76162 6.94 MB February 8, 2022
MS6 Meter Mount Display Quickstart Guide – 80000-603
59 downloads
76161 991.65 KB April 21, 2022
MS6 Quickstart Guide – 80000-602
101 downloads
76160 1,022.35 KB May 2, 2022
