F-410

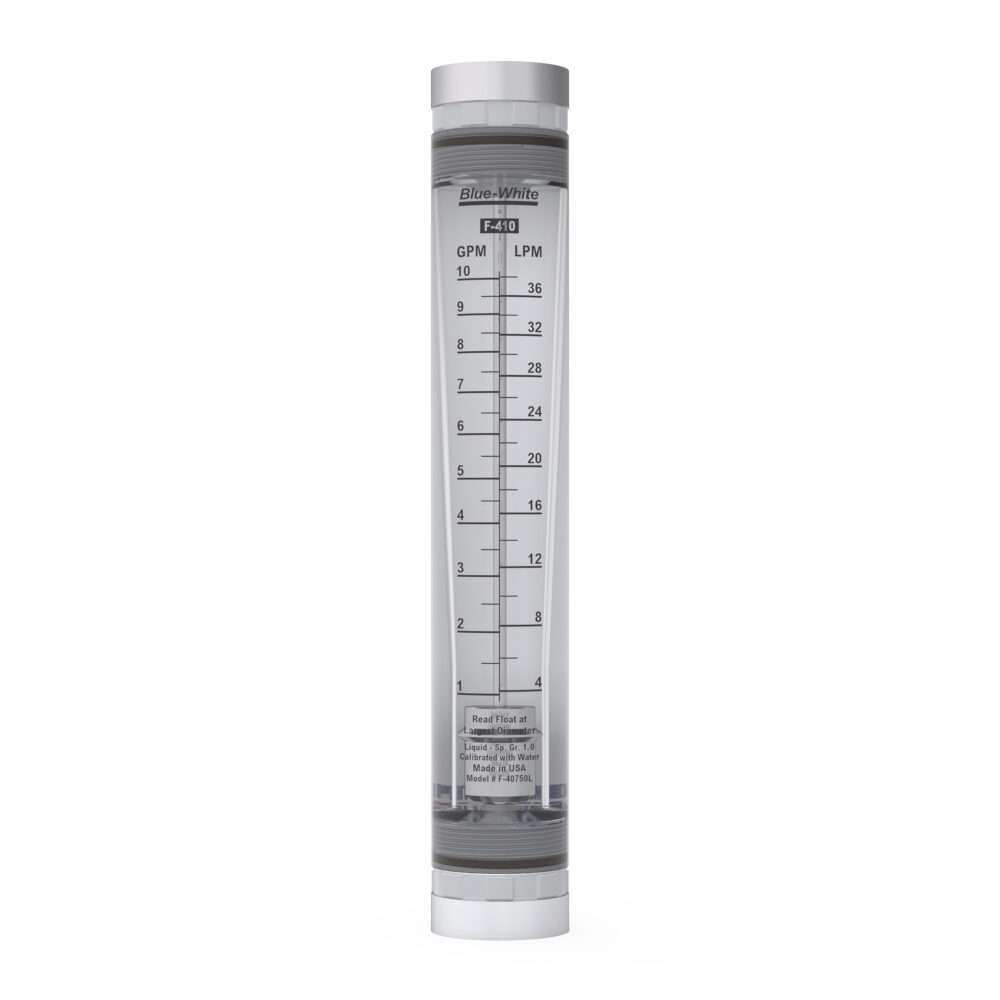

Acrylic Flow Meter

  • Standard 316 stainless floats and guide rods, optional Hastelloy-C for more corrosive environments.
  • Acceptable for outdoor installations (direct sunlight okay)
Technical Overview:

GPM 1 - 20 Fahrenheit (°F) 150*
LPM 4 - 80 Celsius (°C) 65*
PSI 150 Body Material Acrylic
Bar 10.3 Pipe Sizes ¾”, 1” F/NPT
Literature

Features

  • Tough machined acrylic meter body, highly polished to a clear finish.
  • Direct reading permanent scale.
  • White back reflector for easy reading.
  • F/NPT adapters with high grade Viton o-ring seals and aluminum “stress ring” thread supports.
  • 316 stainless steel or Hastelloy rod guided floats.
  • Acceptable in direct sunlight applications.
What’s Included:
  • Flowmeter x1
  • Instruction Manual

Specifications

Max. working pressure:
  • 150 PSI (10.3 bar) @ 70 F (21 C)
Max. Fluid Temperature:
  • 150 F (65 C) @ 0 PSI
Full scale accuracy:
  • +/- 5%
Calibration fluid:
  • water, specific gravity 1.0
Scale length:
  • 5” (127mm)
Environment:
  • Acceptable for direct sunlight exposure.
Maximum pressure drop:
  • 2 PSI
Approximate shipping wt:
  • 2 lb. (.91 kg)
Meter Body:
  • Cast Acrylic Rod
Adapters:
  • Polypropylene
Guide Rod Holder:
  • Polypropylene
O-ring seals:
  • FKM (optional EP)
Float:
  • Standard Series
    • 316SS
  • K- Series
    • Hastelloy
Guide Rod:
  • Standard Series
    • 316SS
  • K- Series
    • Hastelloy

Meter Ranges

Standard Series:

Equipped with 316 SS guide rod

Model Number GPM LPM Adapter F/NPT Adapter Material Float Material
F-40750LN-12 1 to 10 4 to 38 3/4” Polypropylene 316 SS
F-40750LN-16 1 to 10 4 to 38 1” Polypropylene 316 SS
F-41000LN-12 2 to 20 8 to 80 3/4” Polypropylene 316 SS
F-41000LN-16 2 to 20 8 to 80 1” Polypropylene 316 SS

K-Series:

Equipped with Hastelloy guide rod K-Series models are specially equipped for highly corrosive applications.

Model Number GPM LPM Adapter F/NPT Adapter Material Float Material
F-40750LK-12 1 to 10 4 to 38 3/4” Polypropylene Hastelloy
F-40750LK-16 1 to 10 4 to 38 1” Polypropylene Hastelloy
F-41000LK-12 2 to 20 8 to 80 3/4” Polypropylene Hastelloy
F-41000LK-16 2 to 20 8 to 80 1” Polypropylene Hastelloy

Replacement Parts

ImageNameCatalog Number

Downloads

Title
F-410 Replacement Parts List
10 downloads
78024 420.27 KB September 8, 2021
F-410 Instruction Manual – 80000-611
199 downloads
55609 1.13 MB May 25, 2021
F-410N Technical Data Sheet – 85000-033
7601 downloads
46513 129.74 KB May 25, 2021
