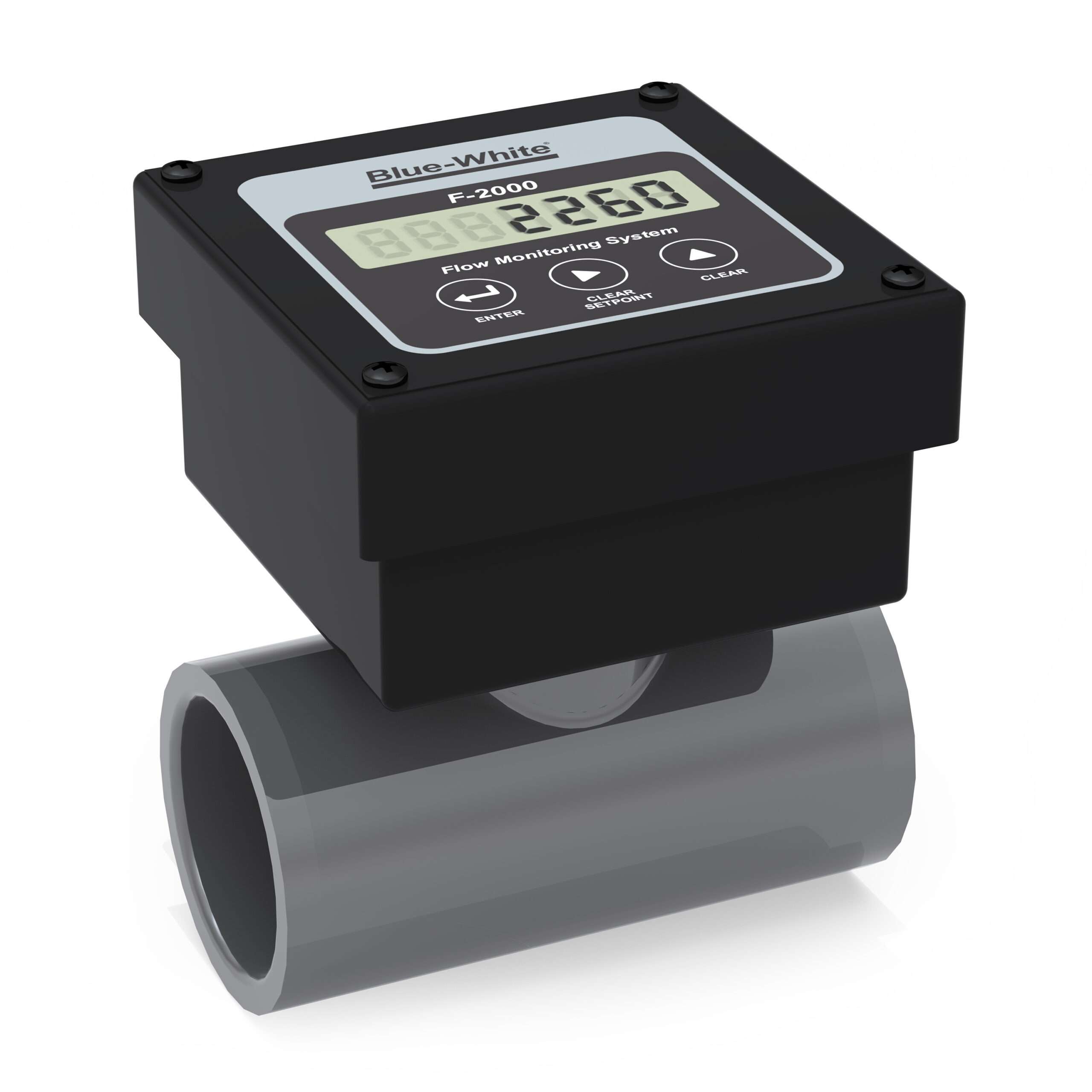

F-2000

Digital Paddlewheel Flow Meter

  • Sensor, Pipe, Panel or Wall mount options available. Up to 200ft. range.
Technical Overview:

GPM
.4 - 8000
LPM
1 - 27000
PSI
300
Bar
20
Fahrenheit (°F)
200
Celsius (°C)
93
Body Material
PVC, PVDF, 316 Stainless Steel
Pipe Sizes
⅜”, up to 12”

Features

Benefits:
  • Easy to read 8 digit LCD, up to 4 decimal positions
  • Flow rate and Total flow display
  • AC/DC transformer or battery operated (RT models only). 4 AA batteries
  • Factory programmed with calibration certificate
  • Front panel security lockout
  • Total reset function can be disabled
  • Weather resistant ABS enclosure. NEMA 4X
  • Panel mounting option available (ships with 25ft of cable)
  • Custom calibration units available. Contact the factory.
  • Standard models ship with pipe fitting
  • 4-20 mA output (AO option)

Note: LCD is not recommended for direct sunlight applications.

Available Models

Molded Fittings

GPM0.4 - 200Pipe Sizes⅜”, ½”, ¾”, 1″, 1½”, and 2″ male NPT
LPM1 - 760

Panel, Pipe or Sensor Mount

Max. Working Pressure:
  • 300 psig (20 bar) @ 70°F (21°C)
Max. Fluid Temperature:
  • 200° F (93° C) @ 0 PSI
Full Scale Accuracy:
  • +/- 1%
Pipe Fitting Body Material:
  • PVDF or Polypropylene
Sensor/ Paddle/ Axel Material:
  • PVDF
O-ring Material:
  • FKM (Optional EP)
Max. Pressure Drop:
  • 8 psi (varies per model)
Approx. Shipping Weight:
  • 2 lb. (0.91 kg)

Saddle Mount Fittings

GPM15 – 8,000Pipe Sizes1½”, 2″, 2½”, 3″, 4″, 6″, 8″, 10″, 12″
LPM70 – 27,000

Sensor mount, battery operated

Max. Working Pressure:
  • 300 psig (20 bar) @ 70°F (21°C)
Full Scale Accuracy:
  • +/- 1%
Sensor/ Paddle/ Axel Material:
  • PVDF
O-ring Material:
  • FKM (Optional EP)
Max. Pressure Drop:
  • 0 psi (no significant pressure drop)
Approx. Shipping Weight:
  • 4 lb. (1.8 kg)
Max. Fluid Temperature:
  • 200° F (93° C) @ 0 PSI (PVDF sizes)
  • 140°F (60°C) @ 0 PSI (PVC sizes)
Saddle Material:
  • PVDF (1½”, 2″, 3″, 50mm, 63mm, 90mm sizes)
  • PVC (all other sizes)

Solvent Weld PVC Fittings

GPM6 – 600Pipe Sizes1″, 1½”, 2″ and 3″
LPM25 – 2300

Panel, Pipe or Sensor Mount

Max. Working Pressure:
  • 200 psig (13.8 bar) @ 70°F (21°C)
Max. Fluid Temperature:
  • 140° F (60° C) @ 0 PSI
Full Scale Accuracy:
  • +/- 1%
Pipe Fitting Body Material:
  • PVC
Sensor/ Paddle/ Axel Material:
  • PVDF
O-ring Material:
  • FKM (Optional EP)
Max. Pressure Drop:
  • 0 psi (no significant pressure drop)
Approx. Shipping Weight:
  • 4 lb. (1.8 kg)

Stainless Steel Tee Fittings

GPM6 - 300Pipe Sizes1″, 1½”, and 2″ female NPT
LPM25 - 1000

Panel, Pipe or Sensor Mount

Max. Working Pressure:
  • 300 psig (20 bar) @ 70°F (21°C)
Max. Fluid Temperature:
  • 200° F (93° C) @ 0 PSI
Full Scale Accuracy:
  • +/- 1%
Sensor/ Paddle/ Axel Material:
  • PVDF
O-ring Material:
  • FKM (Optional EP)
Max. Pressure Drop:
  • 0 psi (no significant pressure drop)
Approx. Shipping Weight:
  • 4 lb. (1.8 kg)

Sensor

GPM .4 - 8000 Pipe Sizes ⅜″, up to 12″
LPM 1 - 27000

Compatible with Blue-White® BW DIGI-METER® F-2000 Display, or other PLC units, SCADA, etc.

FH = Digital Hall Effect

    • Transformer operated
    • Digital Square Waves
    • TTL/CMOS compatible
    • Current sinking output signal
    • One Mile Signal Range
    • NEMA 4X rated

FC = AC Sine Wave Output Signal

    • No Power required
    • Recommended for use with Blue-White® Metering Pumps
    • 200ft Signal Range
    • NEMA 4X rated

Max. Working Pressure:
  • 300 psig (20 bar) @ 70°F (21°C)
Max. Fluid Temperature:
  • 200°F (93°C) @ 0 psig (inline PolyPro and PVDF saddles)
  • 140°F (60°C) @ 0 psig (PVC saddles and TEE fittings)
Full scale accuracy:
  • +/- 1%
Power Requirements:
  • FH: 6-24 VDC, AC/DC transformer sold separately
  • FC: None
Sensor/Paddle/Axle material:
  • PVDF
O-ring seals:
  • FKM (Optional EP)
Approximate shipping weight:
  • 2 lb. (0.9 kg)

Replacement Parts

ImageNameCatalog Number

Downloads

Title
F-2000 Technical Data Sheet – 85000-171
1238 downloads
79288 708 KB February 14, 2022
F-2000 Replacement Parts List
70 downloads
78011 688 KB February 10, 2022
F-2000 Pipe Fitting Installation Instruction Manual – 80000-437
526 downloads
76746 1.10 MB February 8, 2022
F-2000 Exploded View (PDF)
1014 downloads
46556 623.66 KB February 8, 2022
F-2000 PC, PB, and AO Options BW DIGI-METER (PDF) 80000-390
8594 downloads
46502 214.43 KB February 8, 2022
F-2000 RT BW DIGI-METER (PDF) 80000-355
9942 downloads
46454 527.74 KB February 8, 2022
F-2000 BW DIGI-METER Pipe Fittings (PDF) 80000-389
3411 downloads
46453 162.04 KB February 8, 2022
F-2000 OPT D Installation Instructions (PDF) 80000-374
2327 downloads
45965 34.73 KB February 8, 2022
F-2000 Paddlewheel Flowmeter Engineering Spec. Sheet (DOC)
3749 downloads
38063 34.00 KB February 10, 2022
