A-100N

FLEXFLO® Peristaltic Metering Pump

Peristaltic pump design does not have valves that can clog requiring maintenance, is self-priming, and cannot vapor lock or lose prime.

Features

Variable Speed Pumps

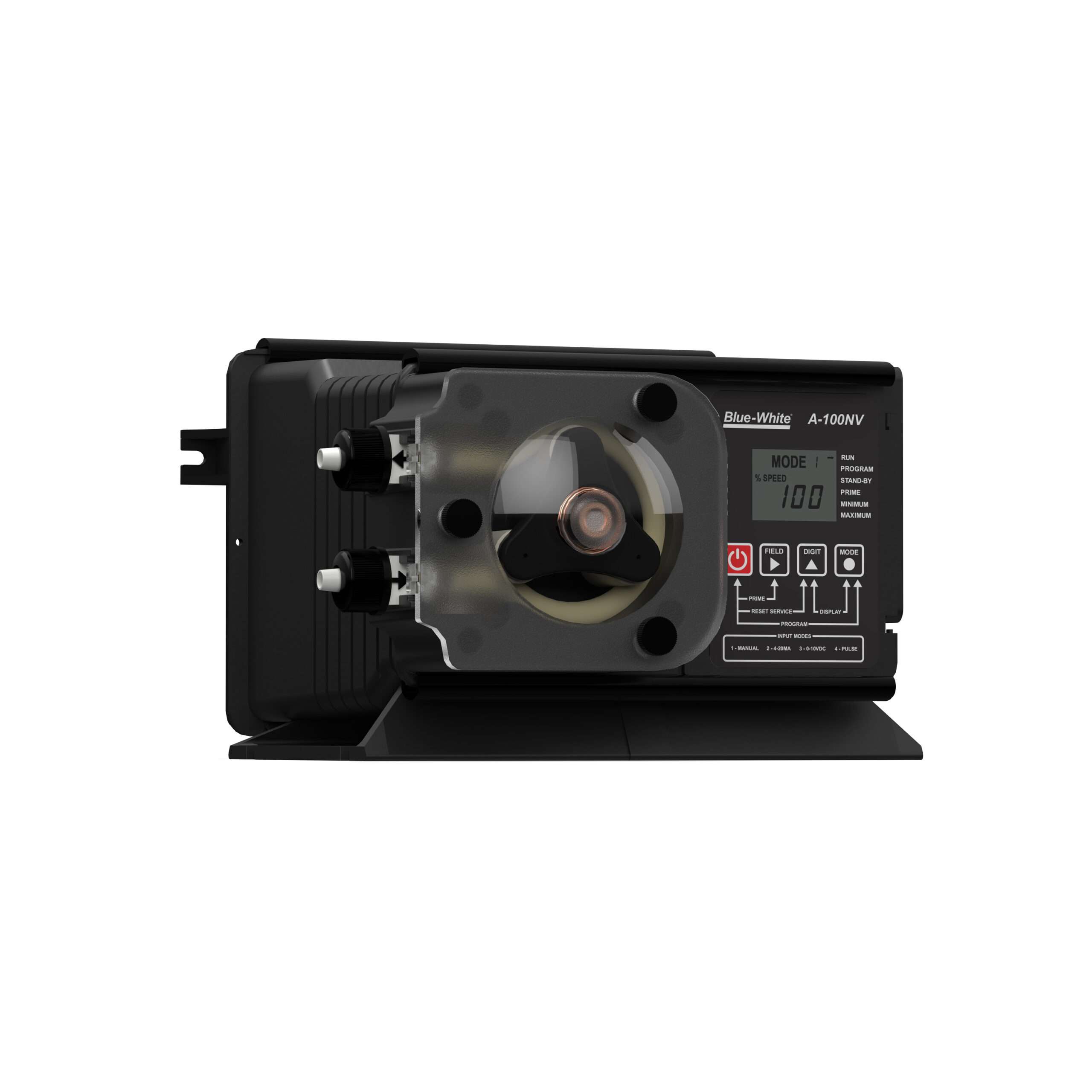

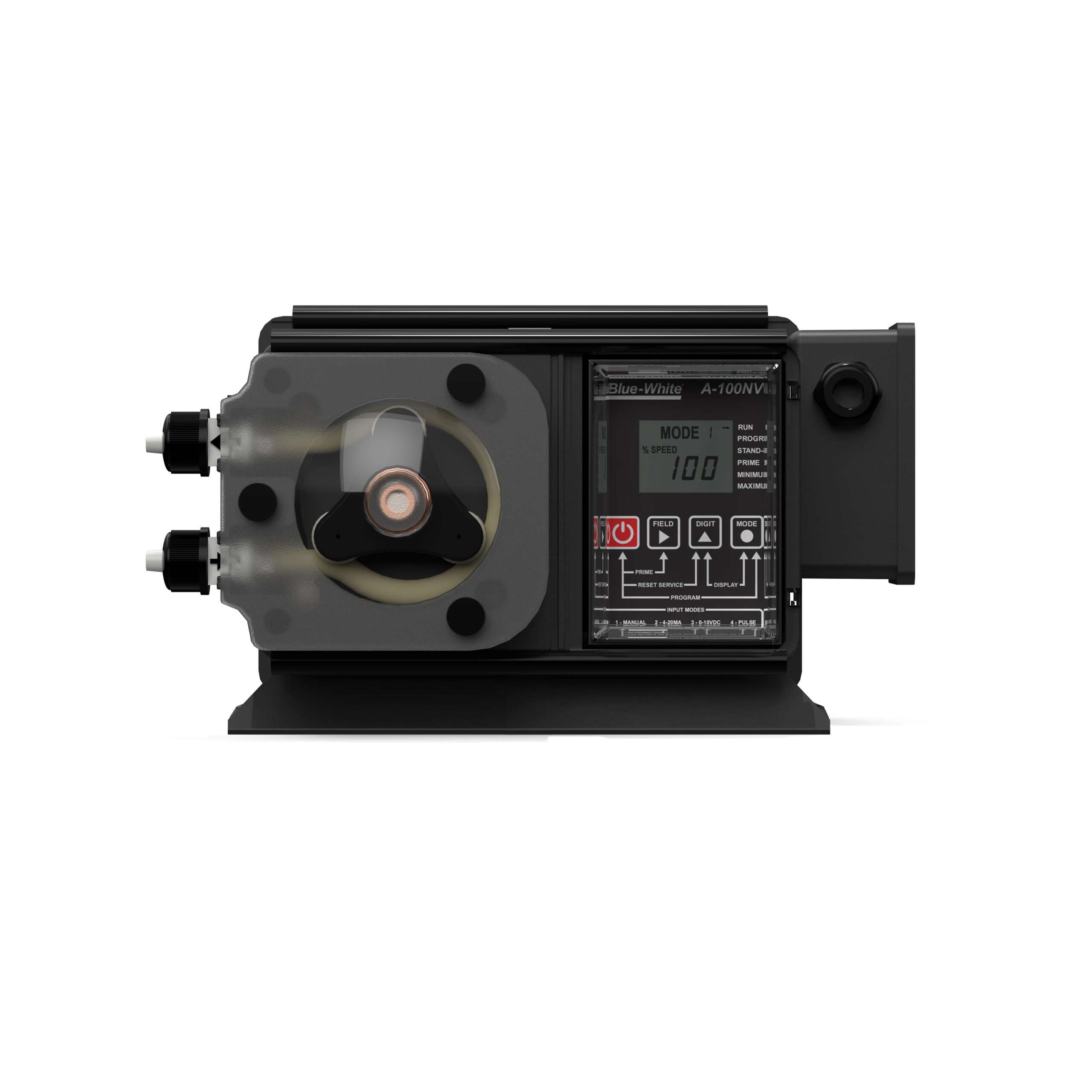

A-100NV (digital display control)
  • Manual or Automatic control
  • Accepts 4-20mA, 0-10VDC, and pulse input signals
  • 1 amp alarm output relay
  • Digital touch-pad with LCD display
  • Easy-to-read Service and Alarm indicator icons on LCD display
  • Flow Verification Sensor (FVS) compatible.
A-100NF (dial knob control)
  • Manual output control
  • Easy Dial knob style – output percentage speed adjustment
  • Nothing to program
  • 10 – 100% output adjustment
  • On-Off power switch
A-100NVP Polymer Pump (digital display control)
  • Digital touch-pad with LCD display
  • Accepts 4-20mA, 0-10VDC, and pulse input signals
  • Enhanced Tube Failure Detection
  • Easy-to-read Service and Alarm indicator icons on LCD display
  • Oil and Water Based Polymers
  • Flow Verification Sensor (FVS) compatible.
A-100NFP Polymer Pump (dial knob control)
  • Manual output control
  • Easy Dial knob style – output percentage speed adjustment
  • Nothing to program
  • 10 – 100% output adjustment
  • On-Off power switch
  • Ehnaced Tube Failure Detection
  • Oil and water based polymers

Fixed Speed Pumps

A-100NE (digital display control)
  • Digital interval timer for near infinite turndown ratio
  • Repeating interval and injection time cycles programmable in seconds, minutes, hours, and days
  • Accepts 4-20mA, 0-10VDC, and pulse input signals
  • Flow Verification Sensor (FVS) compatible.
A-100NC (time interval control – 5 second cycle timer)
  • Precise output control to 20:1 turndown by means of dial knob
  • 5 second repeating timer cycle
  • 0.25 – 5 second adjustable feed (injection) time per cycle
A-100NA (time interval control – 60 second cycle timer) – Swimming Pool
  • Precise output control to 20:1 turndown by means of dial knob
  • 60 second repeating time cycle
  • 3 – 60 second adjustable feed (injection) time per cycle
A-100NS (time interval control – 60 second cycle timer) – Spa
  • 60 second “Spa” repeating time cycle
  • 6 seconds max run time per cycle
  • 0.3 – 6.0 second adjustable on time per 60 second cycle
A-100NX (continuous feed time / always on)
  • Fixed speed – no output control
  • No adjustment mechanism
  • Low cost OEM model
What’s Included:
  • A-100N Peristaltic Metering Pump
  • Two tube assemblies
  • Discharge injection fitting with check valve
  • Suction tube – clear PVC – 5′ length (3/8″ OD, 1/4″ ID)
  • Suction strainer
  • Suction ceramic weight
  • Discharge tube – opaque polyethylene – 5′ length (3/8″ OD, 1/4″ ID)
  • Display shield
  • Tube nuts (x2)
  • Mounting hardware

Specifications

Variable Speed Pumps

Max. working pressure:
  • 100 psig (6.9 bar)
Max. fluid temperature:
  • 130 F (54 C)
Max. ambient temperature:
  • 14 to 110 F/ -10 to 43 C
Duty cycle:
  • Continuous
Maximum viscosity:
  • 5,000 Centipoise
Maximum suction lift:
  • 30 ft. Water 0 psig
Maximum Solids:
  • 50% by volume
Enclosure:
  • NEMA 3R, (IP23)
Output adjustment range:
  • 14 & 30 RPM with -1T, -2T, -4T tubes: 5-100% (20:1 turndown)
  • All other models: 10-100% (10:1 turndown)
Voltage (amp draw):
  • 115VAC/60Hz, 1ph (.350 amp max)
  • 230VAC/60Hz, 1ph (.173 amp max)
  • 220VAC/50Hz, 1ph (.175 amp max)
  • 240VAC/50Hz, 1ph (.193 amp max)
Power Cord Plug Type:
  • 115V60Hz = NEMA 5/15 (USA)
  • 230V60Hz = NEMA 6/15 (USA)
  • 220V50Hz = CEE 7/VII (EUROPE)
  • 240V50Hz = CEE 7/VII (EUROPE)
Approximate shipping wt:
  • 12 lb. (5.4 kg)

Max. working pressure:
  • 100 psig (6.9 bar)
Max. fluid temperature:
  • 130 F (54 C)
Max. ambient temperature:
  • 14 to 110 F/ -10 to 43 C
Output adjustment range:
  • 10-100% in 1% increments
Duty cycle:
  • Continuous
Maximum viscosity:
  • 5,000 Centipoise
Maximum suction lift:
  • 30 ft. Water 0 psig
Maximum Solids:
  • 50% by volume
Enclosure:
  • NEMA 3R, (IP23)
Voltage (amp draw):
  • 115VAC/60Hz, 1ph (.513 amp max)
  • 230VAC/60Hz, 1ph (.563 amp max)
  • 220VAC/50Hz, 1ph (.660 amp max)
  • 240VAC/50Hz, 1ph (.585 amp max)
Power Cord Plug Type:
  • 115V60Hz = NEMA 5/15 (USA)
  • 230V60Hz = NEMA 6/15 (USA)
  • 220V50Hz = CEE 7/VII (EUROPE)
  • 240V50Hz = CEE 7/VII (EUROPE)
Approximate shipping wt:
  • 12 lb. (5.4 kg)

Max. working pressure:
  • 65 psig (4.5 bar)
Max. fluid temperature:
  • 130 F (54 C)
Max. ambient temperature:
  • 14 to 110 F/ -10 to 43 C
Output adjustment range:
  • 14 & 30 RPM with -1T, -2T tubes: 5-100% (20:1 turndown)
  • All other models: 10-100% (10:1 turndown)
Duty cycle:
  • Continuous
Maximum viscosity:
  • 5,000 Centipoise
Maximum suction lift:
  • 30 ft. Water 0 psig
Maximum Solids:
  • 50% by volume
Enclosure:
  • NEMA 3R, (IP23)
Voltage (amp draw):
  • 115VAC/60Hz, 1ph (.350 amp max)
  • 230VAC/60Hz, 1ph (.173 amp max)
  • 220VAC/50Hz, 1ph (.175 amp max)
  • 240VAC/50Hz, 1ph (.193 amp max)
Power Cord Plug Type:
  • 115V60Hz = NEMA 5/15 (USA)
  • 230V60Hz = NEMA 6/15 (USA)
  • 220V50Hz = CEE 7/VII (EUROPE)
  • 240V50Hz = CEE 7/VII (EUROPE)
Approximate shipping wt:
  • 12 lb. (5.4 kg)

Max. working pressure:
  • 65 psig (4.5 bar)
Max. fluid temperature:
  • 130 F (54 C)
Max. ambient temperature:
  • 14 to 110 F/ -10 to 43 C
Output adjustment range:
  • 10-100% in 1% increments
Duty cycle:
  • Continuous
Maximum viscosity:
  • 5,000 Centipoise
Maximum suction lift:
  • 30 ft. Water 0 psig
Maximum Solids:
  • 50% by volume
Enclosure:
  • NEMA 3R, (IP23)
Voltage (amp draw):
  • 115VAC/60Hz, 1ph (.513 amp max)
  • 230VAC/60Hz, 1ph (.563 amp max)
  • 220VAC/50Hz, 1ph (.660 amp max)
  • 240VAC/50Hz, 1ph (.585 amp max)
Power Cord Plug Type:
  • 115V60Hz = NEMA 5/15 (USA)
  • 230V60Hz = NEMA 6/15 (USA)
  • 220V50Hz = CEE 7/VII (EUROPE)
  • 240V50Hz = CEE 7/VII (EUROPE)
Approximate shipping wt:
  • 12 lb. (5.4 kg)

Fixed Speed Pumps

Max. working pressure:
  • 100 psig (6.9 bar)
Max. fluid temperature:
  • 130º F (54º C)
Max. ambient temperature:
  • 14º to 110º F/ -10º to 43º C
Output adjustment range:
  • Adjustable 0.1 - 99 seconds
Duty cycle:
  • continuous
Maximum viscosity:
  • 5,000 Centipoise
Maximum suction lift:
  • 30 ft. Water 0 psig
Maximum Solids:
  • 50% by volume
Enclosure:
  • NEMA 3R, (IP23)
Voltage (max amp):
  • 115VAC/60Hz, 14 & 30 rpm = 1.37 amp
  • 45 & 60 rpm = 1.87 amp
  • 230VAC/60Hz, 14 & 30 rpm = 0.64 amp
  • 45 & 60 rpm = 0.74 amp
  • 220VAC/50Hz, 14 & 30 rpm = 0.68 amp
  • 45 & 60 rpm = 1.14 amp
  • 240VAC/50Hz, 14 & 30 rpm = 0.66 amp
  • 45 & 60 rpm = 1.04 amp
Power Cord Plug Type:
  • 115V60Hz = NEMA 5/15 (USA)
  • 230V60Hz = NEMA 6/15 (USA)
  • 220V50Hz = CEE 7/VII (EUROPE)
  • 240V50Hz = CEE 7/VII (EUROPE)
Approximate shipping wt:
  • 10 lb. (4.5 kg)

Max. working pressure:
  • 100 psig (6.9 bar)
Max. fluid temperature:
  • 130º F (54 C)
Max. ambient temperature:
  • 14º to 110º F / -10º to 43º C
Output adjustment range:
  • 5-100%
Duty cycle:
  • Continuous
Maximum viscosity:
  • 5,000 Centipoise
Maximum suction lift:
  • 30 ft. Water 0 psig
Maximum Solids:
  • 50% by volume
Enclosure:
  • NEMA 3R, (IP23)
Voltage (max amp):
  • 115VAC/60Hz, 14 & 30 rpm = 1.37 amp
  • 45 & 60 rpm = 1.87 amp
  • 230VAC/60Hz, 14 & 30 rpm = 0.64 amp
  • 45 & 60 rpm = 0.74 amp
  • 220VAC/50Hz, 14 & 30 rpm = 0.68 amp
  • 45 & 60 rpm = 1.14 amp
  • 240VAC/50Hz, 14 & 30 rpm = 0.66 amp
  • 45 & 60 rpm = 1.04 amp
Power Cord Plug Type:
  • 115V60Hz = NEMA 5/15 (USA)
  • 230V60Hz = NEMA 6/15 (USA)
  • 220V50Hz = CEE 7/VII (EUROPE)
  • 240V50Hz = CEE 7/VII (EUROPE)
Approximate shipping wt:
  • 10 lb. (4.5 kg)

Max. working pressure:
  • 100 psig (6.9 bar)
Max. fluid temperature:
  • 130º F (54º C)
Max. ambient temperature:
  • 14º to 110º F/ -10º to 43º C
Output adjustment range:
  • 5-100%
Duty cycle:
  • Continuous
Maximum viscosity:
  • 5,000 Centipoise
Maximum suction lift:
  • 30 ft. Water 0 psig
Maximum Solids:
  • 50% by volume
Enclosure:
  • NEMA 3R, (IP23)
Voltage (max amp):
  • 115VAC/60Hz, 14 & 30 rpm = 1.37 amp
  • 45 & 60 rpm = 1.87 amp
  • 230VAC/60Hz, 14 & 30 rpm = 0.64 amp
  • 45 & 60 rpm = 0.74 amp
  • 220VAC/50Hz, 14 & 30 rpm = 0.68 amp
  • 45 & 60 rpm = 1.14 amp
  • 240VAC/50Hz, 14 & 30 rpm = 0.66 amp
  • 45 & 60 rpm = 1.04 amp
Power Cord Plug Type:
  • 115V60Hz = NEMA 5/15 (USA)
  • 230V60Hz = NEMA 6/15 (USA)
  • 220V50Hz = CEE 7/VII (EUROPE)
  • 240V50Hz = CEE 7/VII (U.K)
Approximate shipping wt:
  • 10 lb. (4.5 kg)

Max. working pressure:
  • 100 psig (6.9 bar)
Max. fluid temperature:
  • 130º F (54º C)
Max. ambient temperature:
  • 14º to 110º F/ -10º to 43º C
Output adjustment range:
  • 0.5-10%
Duty cycle:
  • 6 seconds per minute max
Maximum viscosity:
  • 5,000 Centipoise
Maximum suction lift:
  • 30 ft. Water 0 psig
Maximum Solids:
  • 50% by volume
Enclosure:
  • NEMA 3R, (IP23)
Voltage (max amp):
  • 115VAC/60Hz, 14 & 30 rpm = 1.37 amp
  • 45 & 60 rpm = 1.87 amp
  • 230VAC/60Hz, 14 & 30 rpm = 0.64 amp
  • 45 & 60 rpm = 0.74 amp
  • 220VAC/50Hz, 14 & 30 rpm = 0.68 amp
  • 45 & 60 rpm = 1.14 amp
  • 240VAC/50Hz, 14 & 30 rpm = 0.66 amp
  • 45 & 60 rpm = 1.04 amp
Power Cord Plug Type:
  • 115V60Hz = NEMA 5/15 (USA)
  • 230V60Hz = NEMA 6/15 (USA)
  • 220V50Hz = CEE 7/VII (EUROPE)
  • 240V50Hz = CEE 7/VII (U.K)
Approximate shipping wt:
  • 10 lb. (4.5 kg)

Max. working pressure:
  • 100 psig (6.9 bar)
Max. fluid temperature:
  • 130º F (54º C)
Max. ambient temperature:
  • 14º to 110º F/ -10º to 43º C
Output adjustment range:
  • Not adjustable
Duty cycle:
  • Continuous
Maximum viscosity:
  • 5,000 Centipoise
Maximum suction lift:
  • 30 ft. Water 0 psig
Maximum Solids:
  • 50% by volume
Enclosure:
  • NEMA 3R, (IP23)
Voltage (max amp):
  • 115VAC/60Hz, 14 & 30 rpm = 1.37 amp
  • 45 & 60 rpm = 1.87 amp
  • 230VAC/60Hz, 14 & 30 rpm = 0.64 amp
  • 45 & 60 rpm = 0.74 amp
  • 220VAC/50Hz, 14 & 30 rpm = 0.68 amp
  • 45 & 60 rpm = 1.14 amp
  • 240VAC/50Hz, 14 & 30 rpm = 0.66 amp
  • 45 & 60 rpm = 1.04 amp
Power Cord Plug Type:
  • 115V60Hz = NEMA 5/15 (USA)
  • 230V60Hz = NEMA 6/15 (USA)
  • 220V50Hz = CEE 7/VII (EUROPE)
  • 240V50Hz = CEE 7/VII (U.K)
Approximate shipping wt:
  • 10 lb. (4.5 kg)

Videos

Accessories

Replacement Parts

ImageNameCatalog Number

Downloads

Title
A-100N Replacement Parts List
27 downloads
77920 1.33 MB September 3, 2021
A-100NE Technical Data Sheet – 85000-037
2341 downloads
46430 299.22 KB May 21, 2021
Retro-fit Kit Instructions – 80000-561
2021 downloads
48167 675.80 KB May 21, 2021
80000-560 A-100N Tube Assembly – New Style Tube
2906 downloads
48126 582.94 KB October 14, 2015
80000-559 A-100N Tube Assembly – Old Style Tube
3276 downloads
48125 543.00 KB October 14, 2015
New A-100N pump head cutsheet – 80000-574
4128 downloads
48085 4.91 MB July 27, 2021
FLEXFLO Tube and Roller Selection Guide
1663 downloads
47700 232.22 KB July 27, 2021
A-100 to A-100N Conversion Chart
1929 downloads
47033 578.72 KB July 21, 2014
A-100N Exploded View
7618 downloads
46532 693.97 KB May 29, 2014
A-100NX Technical Data Sheet – 85000-044
1833 downloads
46435 5.61 MB May 21, 2021
A-100NS Technical Data Sheet – 85000-042
1136 downloads
46434 527.48 KB May 21, 2021
A-100NA Technical Data Sheet – 85000-038
2592 downloads
46433 522.63 KB July 27, 2021
A-100NC Technical Data Sheet – 85000-039
1530 downloads
46432 528.98 KB May 21, 2021
A-100NE Instruction Manual – 80000-358
2308 downloads
46431 10.26 MB May 21, 2021
A-100N (A, C, F, S, X) Instruction Manual – 80000-327
9366 downloads
46429 9.51 MB July 27, 2021
A-100NF Technical Data Sheet – 85000-043
5180 downloads
46428 633.15 KB May 21, 2021

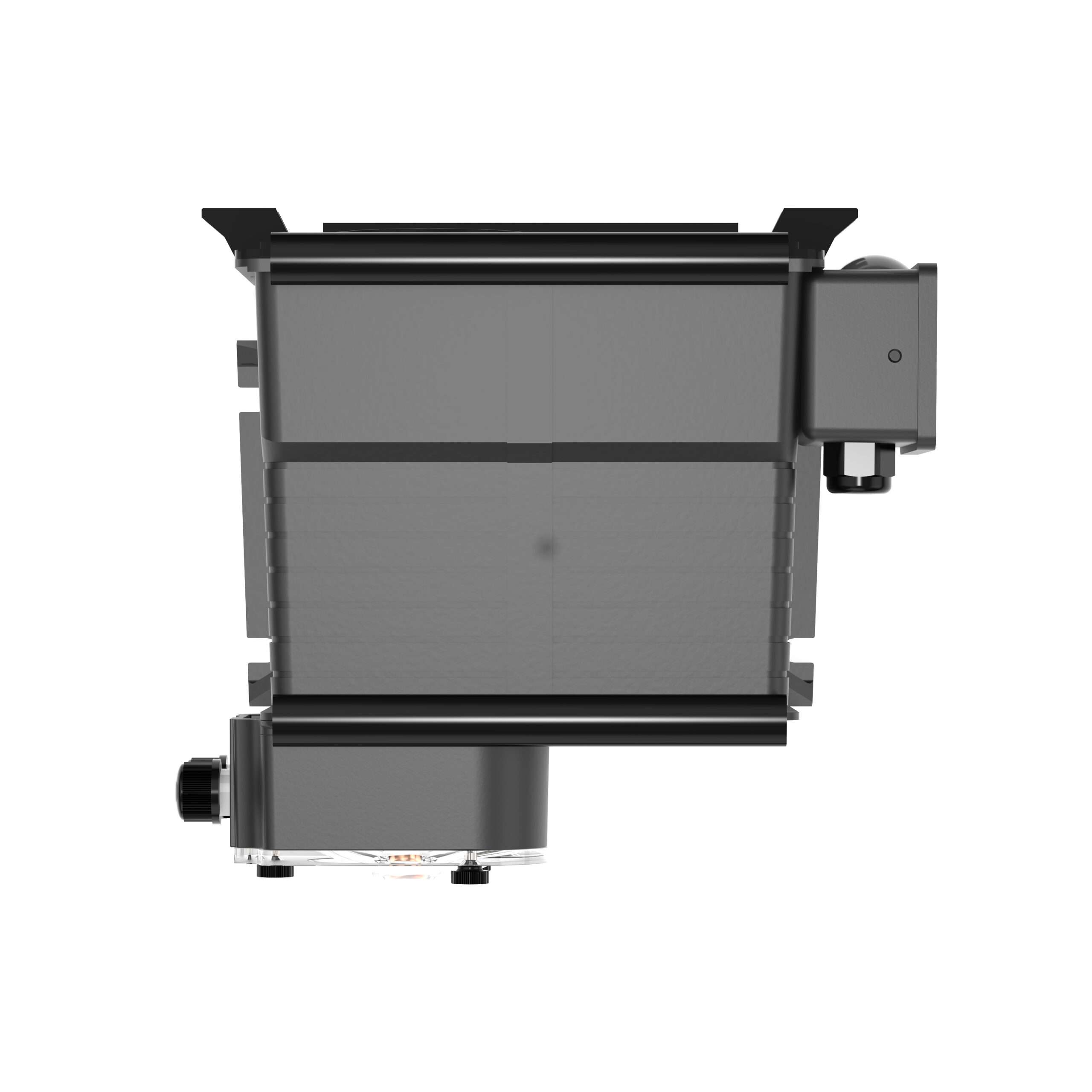

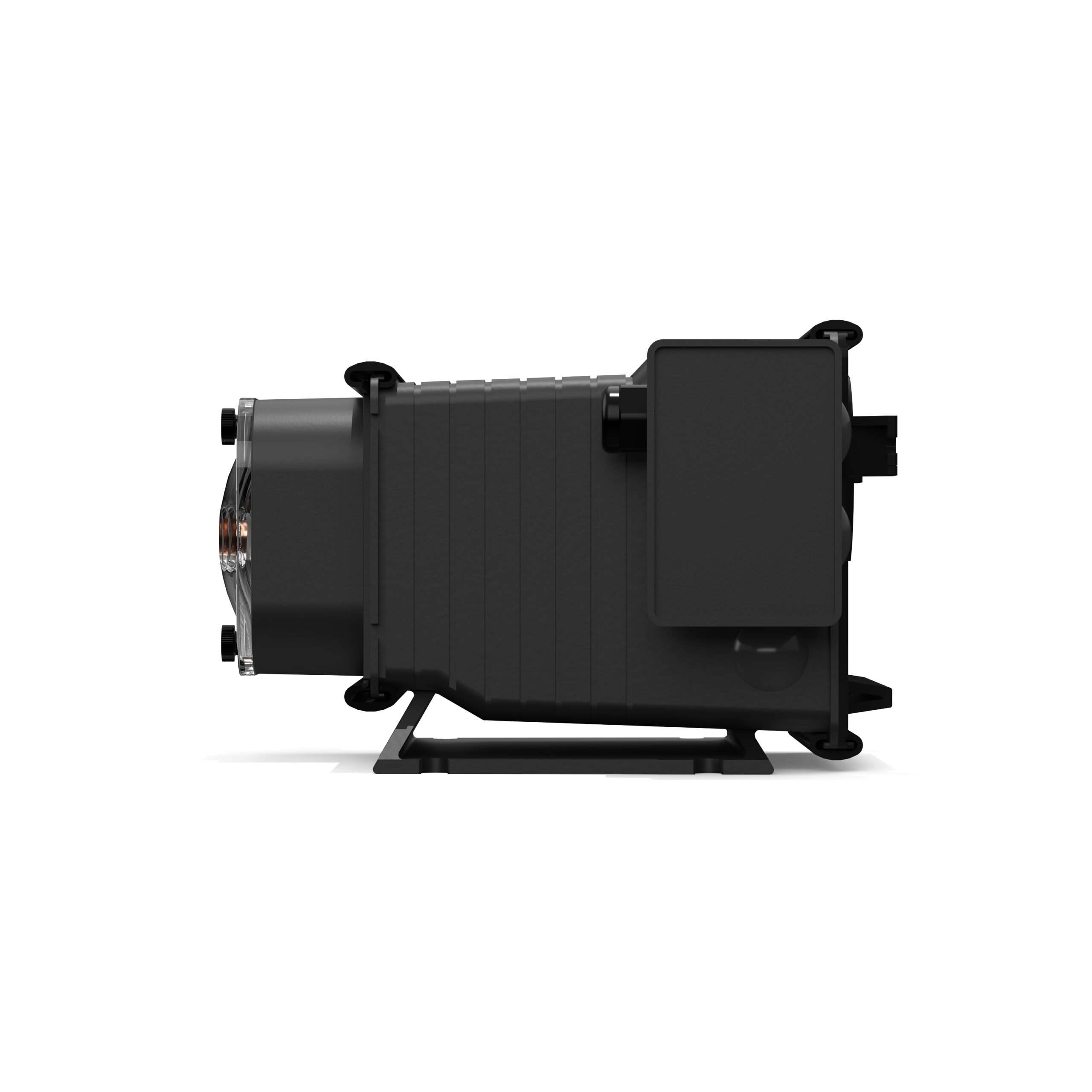

A-100NV Technical Data Sheet – 85000-040
11629 downloads
46241 656.38 KB May 21, 2021
A-100NV Instruction Manual – 80000-381
9349 downloads
46240 9.88 MB July 1, 2021
A-100NV Engineering Spec.
3072 downloads
46239 167.00 KB July 2, 2021
A-100N STAR III Technical Data Sheet – 85000-045
1233 downloads
46135 145.79 KB July 27, 2021

    Request a quote

    Please fill out the form to request a quote.
    A sales rep will reach out to you.

    Select your industry:
    How did you hear about us?
    Select your industry:
    How did you hear about us?

    Request a quote

    Please fill out the form to request a quote.
    A sales rep will reach out to you.

    To select or deselect multiple products–desktop users hold [ctrl] on Windows or [cmd] on Mac and click products.

    Select Products

    Pumps
    Flow Meters
    Skid Systems

    Please review your selections before continuing.

    Product Details
    Select your industry:
    How did you hear about us?
