C3

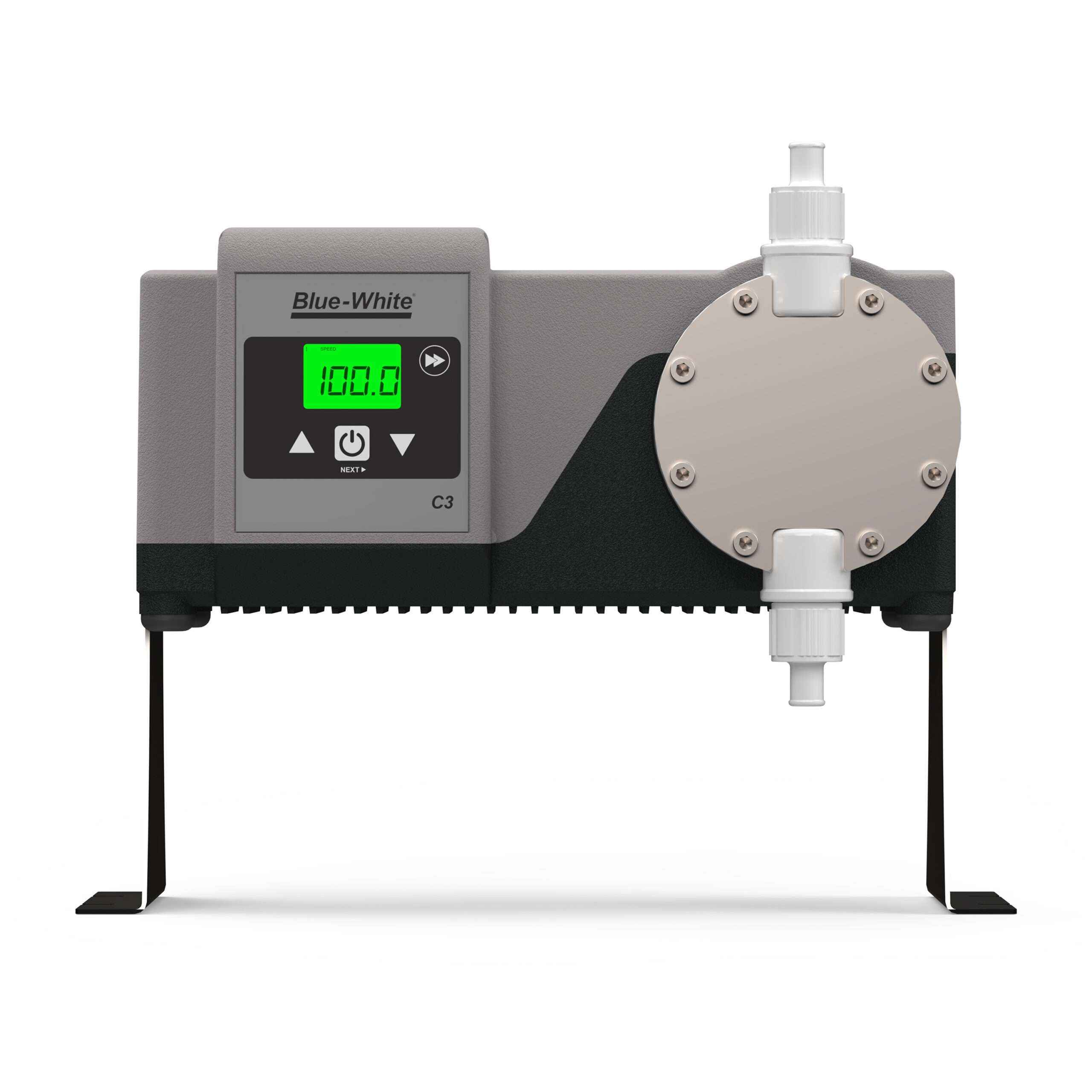

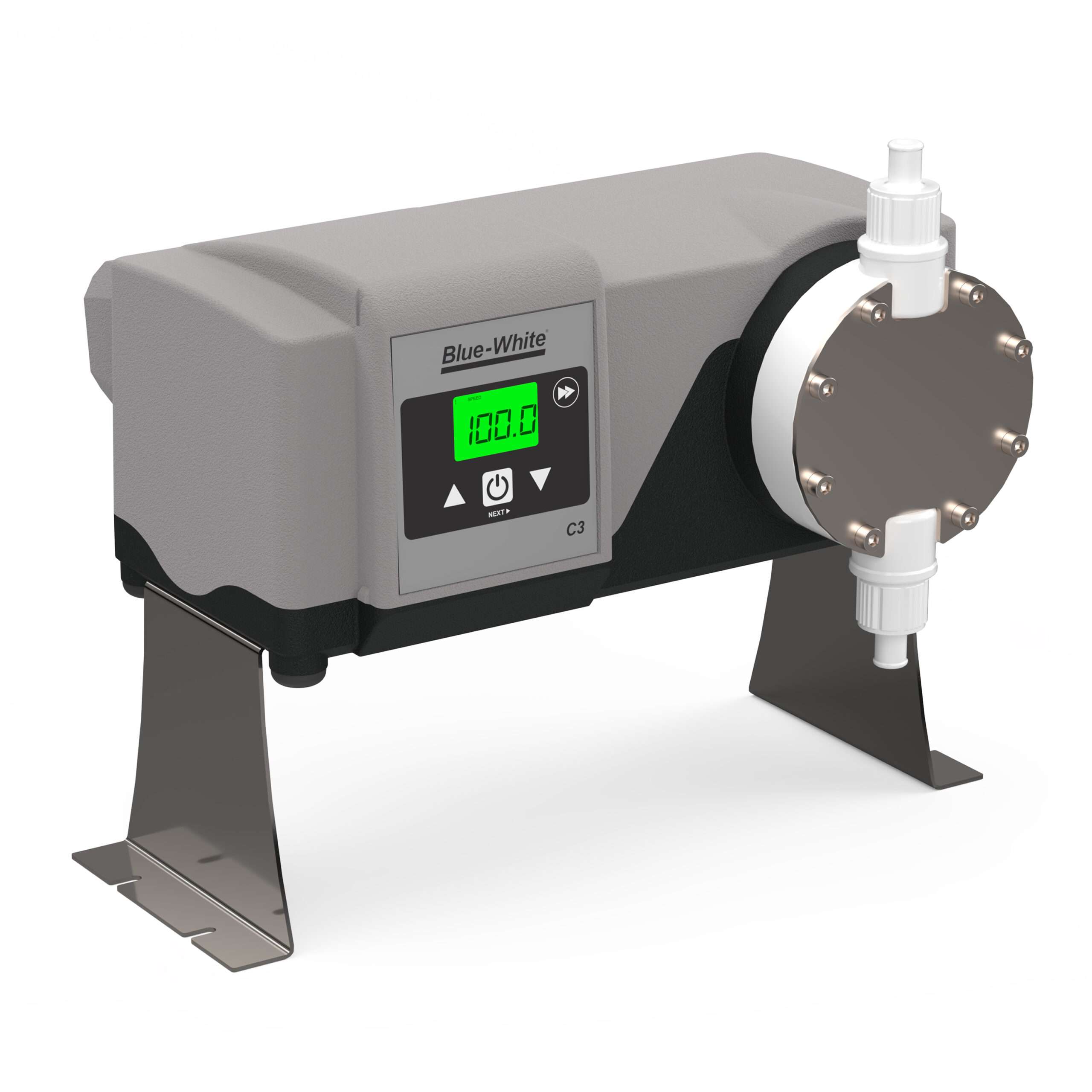

CHEM-FEED® Diaphragm Metering Pump

The CHEM-FEED® C3 Diaphragm Metering Pump delivers accurate chemical feed quietly and efficiently against high system pressures. With an easy-to-read LCD user interface and optional pulse/frequency/4-20 mA input capability, the CHEM-FEED® C3 pump has the power and flexibility you need to take control of your fluid management process.

The C3’s exclusive DiaFlex® Diaphragms will last the life of the pump, eliminating the need for expensive rebuild kits

Technical Overview:

GPH
.3 - 40
LPH
.1 - 154
PSI
150
Bar
10.3
Enclosure Rating
NEMA 4X (IP66)
Standards
CE, cETLus, RoHS
Control Methods
Manual, Remote Analog/Digital
Power Supply
100 to 240VAC-50/60Hz
3D Visualizer

Features

Benefits:
  • DiaFlex® diaphragm design will last the life of the pump, eliminates the need for expensive rebuild kits – Patented
  • Diaphragm Failure Detection (DFD) built-in leak detection comes standard
  • Accurate chemical metering with pressures of up to 150 PSI
Communication and Interface:
  • Operator friendly digital controls with backlit LCD displays motor speed, input signal values, service, and alarm status
  • Signal inputs include: 4-20mA, pulse inputs and Remote start/stop
  • Signal outputs include: Relay (3 amp), open collector, 4-20mA
  • Compatible with Blue-White’s Flow Verification Sensor (FVS) system
  • Alarm relay monitors the DFD system and FVS system
  • SCADA ready 5-30V DC open collector output loop closes while motor is energized
Superior Design:
  • 2 Year Warranty
  • 100:1 turndown ratio
  • NEMA 4X (IP66) wash-down, chemically resistant powder coated enclosure
  • Large PVDF, Ceramic, double ball check valves without metal springs
Safety Features:
  • Diaphragm Failure Detection (DFD) senses diaphragm rupture by detecting chemical in the pump head. No false triggering – Patented
  • UV display cover protects controls from harsh environments
What’s Included:
  • C3 Diaphragm Metering Pump
  • Discharge injection fitting with check valve
  • Option “A” – ½” Hose Barb Inlet, ½” M/NPT Outlet, with ½” M/NPT Injection Fitting
    • ½” M/NPT injector
    • ½” hose barb foot valve / strainer
    • ½” suction tubing
    • #5 clamp
  • Option “B” – ½” Hose Barb Inlet, ½” F/NPT Outlet, with ½” M/NPT Injection Fitting
    • ½” M/NPT injector
    • ½” hose barb foot valve / strainer
    • ½” suction tubing
    • #5 clamp
  • Option “C” – ½” Hose Barb Inlet and Outlet, with ½” ID Hose Barb Injection Fitting
    • ½” hose barb injector
    • ½” hose barb foot valve / strainer
    • ½” suction tubing
    • #5 clamp
  • Option “E” – ½” M/NPT Inlet and Outlet, with ½” M/NPT Injection Fitting
    • ½” M/NPT injector
    • ½” M/NPT foot valve / strainer
  • Option “F” – ½” F/NPT Inlet and Outlet, with ½” M/NPT Injection Fitting
    • ½” M/NPT injector
    • ½” M/NPT foot valve / strainer
  • Mounting hardware kit
  • Junction box connectors

Specifications

Maximum Working Pressure
  • 150 psig (10.3 bar)
Maximum Fluid Temperature
  • 130 °F (54 °C)
Maximum Ambient Temperature
  • 14 °F to 110 °F (-10 °C to 46 °C )
Maximum Viscosity
  • 1,000 Centipoise
Maximum Suction Lift
  • 15 ft. Water, 0 psig (4.5 m, 0 bar)
Operating Voltage
  • 115VAC/60Hz, 1ph (1.5 Amp Maximum)
  • 230VAC/60Hz, 1ph (0.7 Amp Maximum)
  • 220VAC/50Hz, 1ph (1.0 Amp Maximum)
  • 240VAC/50Hz, 1ph (1.0 Amp Maximum)
  • 230VAC/50Hz, 1ph (1.0 Amp Maximum)
Power Cord Options
  • 115V60Hz = NEMA 5/15 (USA)
  • 230V60Hz = NEMA 6/15 (USA)
  • 220V50Hz = CEE 7/VII (EU)
  • 240V50Hz = AS 3112 (Australia/New Zealand)
Duty Cycle
  • Continuous
Motor Speed Adjustment Resolution
  • 100:1, (1.0% – 100% motor speed) Max. rpm = 130
Display
  • Backlit LCD, UV resistant
Keypad
  • Positive action tactile switch keypad
Product Weight
  • 29 lb. (13.1 Kg)
Enclosure
  • NEMA 4X (IP66), Polyester powder coated aluminum.
RoHS Compliant
  • Yes
Standards
  • cETLus, CE

Videos

Accessories

You may also like…

Replacement Parts

ImageNameCatalog Number

Downloads

Title
Industrial Accessories Guide – 85000-179
99 downloads
94401 994.07 KB June 2, 2022
C3 Instruction Manual – 80000-620
36 downloads
93031 5.14 MB April 29, 2022
C3 Replacement Parts List
92 downloads
77981 756 KB February 10, 2022
C2 C3 Firmware Update Manual – 80000-525
300 downloads
64933 3.12 MB February 8, 2022
Case Study : Chem-Pro® C2 – Farming Application
1324 downloads
47270 2.50 MB February 14, 2022
C3 Technical Data Sheet – 85000-096
5569 downloads
46166 926.06 KB June 24, 2022
C2F C3F Instruction Manual – 80000-514
2733 downloads
46211 3.29 MB June 24, 2022
C2V C3V Instruction Manual – 80000-516
4755 downloads
46167 5.7 MB June 27, 2022
DiaFlex Diaphragm Replacement Kit Drawing – 81000-363
2058 downloads
46388 548.97 KB February 8, 2022
