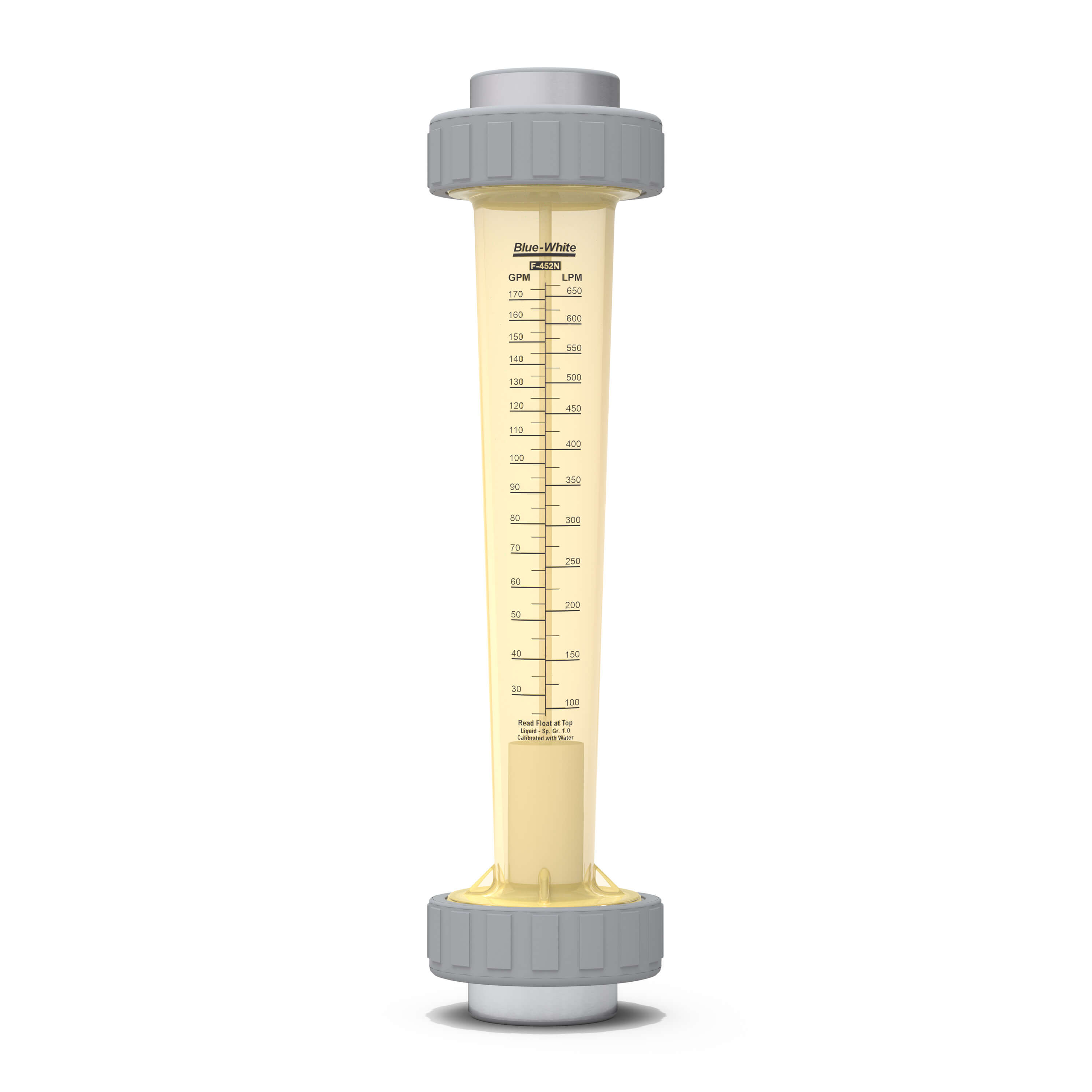

F-452

Polysulfone Flow Meter

  • 316 SS or Hastelloy rod guided float.
  • Available OEM options: Private labeling, custom calibrations and custom materials.
Technical Overview:

GPM Fahrenheit (°F)
LPM Celsius (°C)
PSI Body Material
Bar Pipe Sizes
Literature

Features

  • Polysulfone meter body resists high temperatures and pressures.
  • 316SS or Hastelloy rod guided float.
  • Direct reading permanent scale.
  • Adapters and unions engineered for increased protection from misalignment and vibration.
  • Custom calibrations, materials, and Private labeling available.
  • Very low pressure drop.
  • Not recommended for direct sunlight.
  • In-Line (vertical) mount only.
  • Optional polycarbonate splash shield
What’s Included:
  • Flowmeter x1
  • Instruction Manual

Specifications

Max. Working Pressure:
  • 150 psig (10.3 bar) @ 70° F (21° C)
Max. Fluid Temperature:
  • 200° F (93° C) @ 0 PSI
Full Scale Accuracy:
  • +/- 2%
Meter Body Material:
  • Polysulfone
Adapter Material:
  • 2″ F/NPT: Polysulfone
  • 2″ Socket Fusion: Polypropylene or PVDF
Union Nuts:
  • Glass fiber reinforced Nylon
Guide Rod Material:
  • 316 SS or Hastelloy C-276
O-ring Material:
  • FKM (Optional EP)
Max Pressure Drop:
  • 2 PSI
Approx. Shipping Weight:
  • 5 lb. (2.27 kg)

Meter Ranges

Standard Series:

Equipped with 316 SS guide rod

Model Number GPM LPM Float Material Guiderod Material
F-452020LHN 2 to 20 8 to 78 PTFE 316 ss
F-452060LHN 6 to 60 30 to 230 316 ss 316 ss
F-452080LHN 8 to 80 40 to 300 316 ss 316 ss
F-452100LHN 6 to 100 20 to 380 316 ss 316 ss
F-452130LHN 20 to 130 80 to 500 316 ss 316 ss
F-452175LHN 25 to 175 100 to 675 316 ss 316 ss

Standard Series:

Equipped with 316 SS guide rod
And Polycarbonate splash shield

Model Number GPM LPM Float Material Guiderod Material
F-452020LHNC 2 to 20 8 to 78 PTFE 316 ss
F-452060LHNC 6 to 60 30 to 230 316 ss 316 ss
F-452080LHNC 8 to 80 40 to 300 316 ss 316 ss
F-452100LHNC 6 to 100 20 to 380 316 ss 316 ss
F-452130LHNC 20 to 130 80 to 500 316 ss 316 ss
F-452175LHNC 25 to 175 100 to 675 316 ss 316 ss

K-Series:

Equipped with Hastelloy guide rod
K-Series models are specially equipped for highly corrosive applications.

Model Number GPM LPM Float Material Guiderod Material
F-452020LHKN 2 to 20 8 to 78 PTFE Hastelloy
F-452060LHKN 6 to 60 30 to 230 Hastelloy Hastelloy
F-452080LHKN 8 to 80 40 to 300 Hastelloy Hastelloy
F-452100LHKN 6 to 100 20 to 380 Hastelloy Hastelloy
F-452130LHKN 20 to 130 80 to 500 Hastelloy Hastelloy
F-452175LHKN 25 to 175 100 to 675 Hastelloy Hastelloy

K-Series:

Equipped with Hastelloy guide rod
And Polycarbonate splash shield
K-Series models are specially equipped for highly corrosive applications.

Model Number GPM LPM Float Material Guiderod Material
F-452020LHKNC 2 to 20 8 to 78 PTFE Hastelloy
F-452060LHKNC 6 to 60 30 to 230 Hastelloy Hastelloy
F-452080LHKNC 8 to 80 40 to 300 Hastelloy Hastelloy
F-452100LHKNC 6 to 100 20 to 380 Hastelloy Hastelloy
F-452130LHKNC 20 to 130 80 to 500 Hastelloy Hastelloy
F-452175LHKNC 25 to 175 100 to 675 Hastelloy Hastelloy

Replacement Parts

ImageNameCatalog Number

Downloads

Title
F-452N Instruction Manual – 80000-258
1 file(s) 1736 downloads
46526 May 25, 2021
F-452N Technical Data Sheet – 85000-031
1 file(s) 3849 downloads
37843 May 25, 2021
