CFWS-1

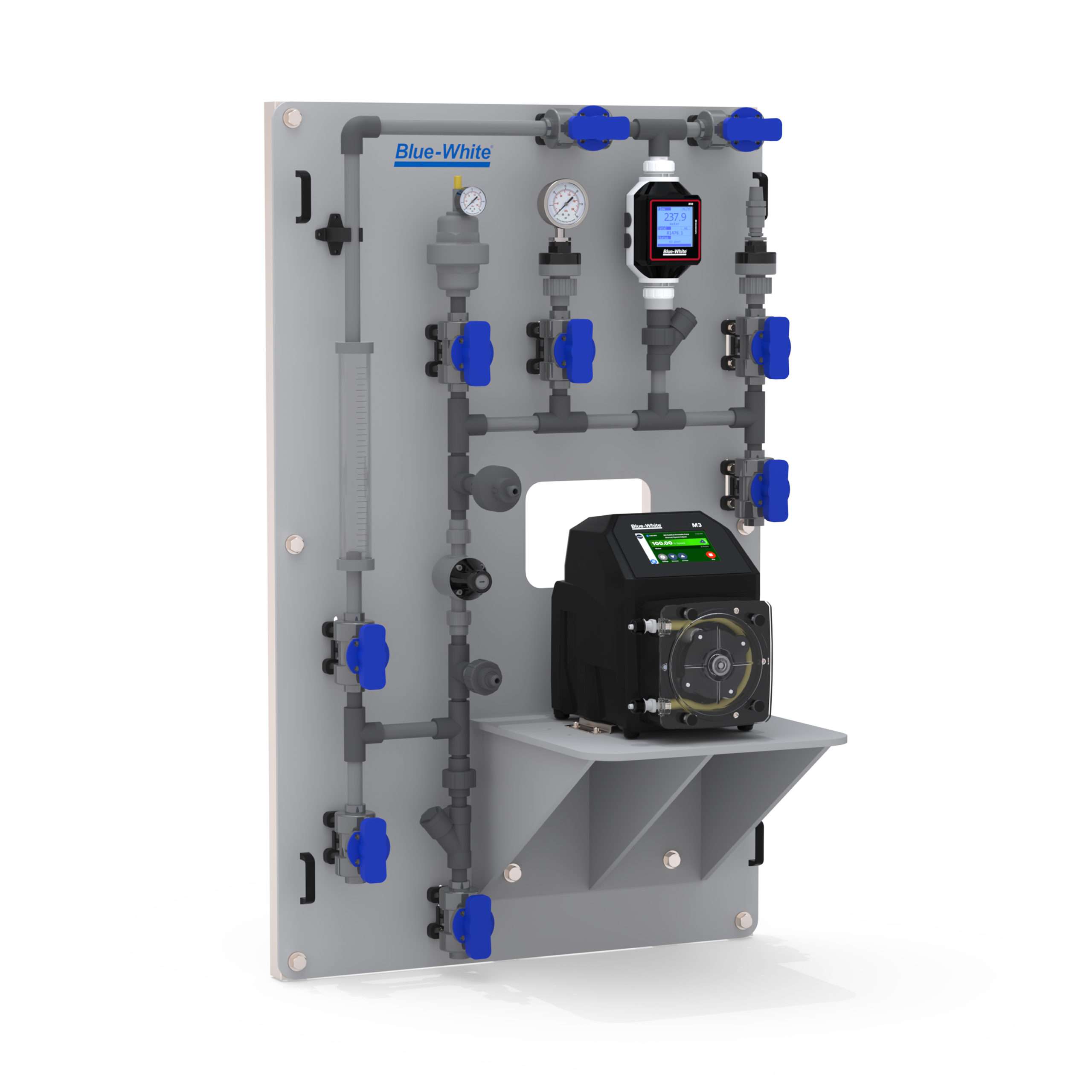

CHEM-FEED® Wall Mount Simplex Skid System

The all-new CHEM-FEED® Wall Mount Simplex Skid System is designed to be mounted on a wall freeing up valuable floor space. Available in a simplex and duplex chemical feed pump configuration. Pipe material options include PVC, CPVC, PVDF, and Chem Proline® (PE).

An optional SONIC-PRO® Chemical Flow Meter provides accurate measurement of chemical feed and features an isolated 4-20 mA output, process control via configurable solid state relay, and user-configurable flow rate and total set-point triggers.

Technical Overview:

System Type
Single pump system
Product Compatibility
M1, M2, M3, M4, MD1, MD3, MC2, MC3
Frame Material
Polyethylene
Mounting Position
Wall
PSI
150
Bar
10.3
Literature

Features

CHEM-FEED® Wall Mount Skid Systems were designed and engineered using solid modeling tools for superior piping installation and easy component maintenance. Every skid is completely assembled, tested, and shipped directly to you.

Benefits:
  • Straightforward chemical feed skid: easy to order, ready to install, 2-week lead-time
  • Visual flow indicator for visual confirmation that chemical is flowing
  • All installed components are isolated with ball valves for easy maintenance
Superior Design:
  • 2 Year Warranty
  • Constructed out of strong Chemical/UV resistant polyethylene
  • Heavy-duty wall mounting strut channels
  • Optional chemical feed flow meter to precisely measure the chemical output from the metering pump
Safety Features:
  • Ball valves are vented for operator safety
  • Leak-free threadless connections to ensure leak-free chemical feed
Ease of installation and use:
  • Fits through a standard door opening for ease of installation
  • Designed to be mounted on a wall, where space is limited or above a day tank, tote, or barrel
  • 4 sturdy handles for easy transport and ease of installation
What’s Included:
Standard
  • Piping/Unions – Specify from PVC, CPVC, PVDF, or Chem Proline® (PE)
  • Calibration Cylinder – Confirm pump output under system conditions. Specify cylinder volumes from 1.6 GPH to 64 GPH (PVC/Glass).
  • Pressure Gauge with Guard – Isolate and protect the system pressure gauge. Specify pressure ranges from 0-30 psi, 0-100psi, or 0-200 psi
  • Flow Indicator – Provides a visual indication of chemical movement through the system
  • Inlet Y Strainer – Recommended for Diaphragm Pump systems
Optional components (see product matrix)
  • Pulsation Dampener – Protects the system components from pulsation. Recommended for diaphragm pump systems only
  • Back Pressure Valve – Protects the user from back-flow during pump maintenance
  • MS6 Chemical Flowmeter – Provides 4-20mA and pulse output data to SCADA and to the pump to verify the chemical feed
  • Pressure Switch with Guard – Activate or de-activate equipment when the pressure in a piping system either rises or falls to a set pressure

Specifications

Skid
  • Chemically resistant polyethylene structure
Pump (sold separately)
  • FLEXFLO® M1, M2, M3 or M4 peristaltic pumps
  • CHEM-FEED® MD1, MC2, MC3 or MD3 diaphragm pumps
Piping
  • 1/2” PVC Schedule 80 (optional CPVC, PVDF, PE)
Seals
  • FKM seals (optional EPDM)
Tubing (T)
  • Reinforced braided PVC, 200 psi max, meets NSF std. 51. The pump inlet and outlet flexible tubing connections are terminated to half unions and secured to the barbed fitting with stainless steel clamps. (Optional: 1/2” PTFE, 1/4” PE, 1/4” PTFE)
Tubing Clamps
  • 300 series SS band, 400 series SS screw
Unions (U)
  • PVC body, schedule 80
Ball Valves (V)
  • True unions, PVC body, PTFE shaft bearings and seats
Pressure Relief Valve (PRV)
  • PVC body, PTFE primary diaphragm seal. Non-wetted components: EPDM secondary seal, zinc plated steel spring, stainless steel external hardware, HDPE pressure adjustment screw. Infinite adjustment from 10-150 psi.
Calibration Cylinder (CC)
  • PVC body, PVC end caps, 1/2” PVC pipe outlet vent. Available volumes: 1.6 GPH (100ml), 4 GPH (250ml), 8 GPH (500ml), 16 GPH (1000ml), 32 GPH (2000ml), and 64 GPH (4000mL). (Optional Glass)
Pulsation Dampener (PD)
  • CPVC body,10 cubic inch volume
Gauge W/Guard (G)
  • Gauge: liquid filled stainless steel with blowout plug, bottom mount, 1/4” NPT theads. Available pressure ranges: 0-30 psi, 0-100, psi, 0-200 psi. Guard: PVC body, temperature compensated oil filled.
Check Valve (CV)
  • PVC body.
  • Cracking pressure: 1.0-1.5 psi
  • Maximum working pressure: inlet = 150 psi, back = 100 psi
Flow Sensor (MS6)
  • Available Flow Ranges: 10 – 5,000 ml/min, 100-10,000 ml/min
Y Strainer (S)
  • PVC body, 1/32” Mesh
Universal Mounting Blocks
  • PA 12
Pump Extended Mounting Brackets
  • 316 Stainless Steel
Skid Mounting Brackets
  • 316 Stainless Steel
Mounting Hardware
  • 304 Stainless Steel
Maximum Working Pressure
  • 150 psig (10.3 bar)
Operating Temperature
  • 14 °F to 115 °F (-10 °C to 46 °C)
Maximum Overall Dimensions
  •
Approximate Shipping Weight
  • Standard: lb. (kg) with mounted pump: 140 lb. (64 Kg)
