A1A

FLEXFLO® Peristaltic Metering Pump for Commercial Aquatics

For installations requiring higher chemical feed, such as Water Parks and other high-volume Commercial Aquatics for sanitizing (sodium hypochlorite) and pH adjustment (acid) for low maintenance, more trouble-free, and reliable chem feed solution.

Technical Overview:

GPD
.01 - 100
LPH
.01 - 15.8
PSI
40
Bar
2.76
Enclosure Rating
NEMA 4X (IP66)
Standards
NSF/ANSI 50, CE, cETLus, RoHS
Control Methods
Manual, Remote Analog
Power Supply
100 to 240VAC-50/60Hz
Literature

Features

Benefits:
  • Peristaltic pump design does not have valves that can clog requiring maintenance.
  • Self-priming – even against maximum line pressure. By-pass valves are not required.
  • Cannot vapor lock or lose prime.
Communication & Interface:
  • Remote Start/Stop: Non-powered dry contact closure for remote start/stop.
  • One 48VDC @ 80mA relay
  • Compatible with Blue-White’s output Flow Verification Sensor (FVS) system.
Superior Engineered Design:
  • 2 year warranty
  • CNC precision-machined squeeze rollers for optimum squeeze,unparalleled accuracy, and tube life.
  • Heavy-duty rotor – single piece plastic rotor means no flexing and increased accuracy withno metal springs or hinges to corrode.
  • Energy-efficient variable speed DC motor.
  • Specially engineered tubing for long life.
Saftey Features:
  • Tube Failure Detection (TFD) senses tube rupture preventing hazardous chemical spills.
  • Lockout feature to prevent tampering.
What’s Included:
  • A1A Acid and Liquid Chlorine Feeder
  • One tube assembly
  • Suction tube – clear PVC – 5′ length (3/8″ OD, 1/4″ ID)
  • Suction strainer
  • Suction ceramic weight
  • Discharge tube – opaque polyethylene – 5′ length (3/8″ OD, 1/4″ ID)
  • Discharge injection fitting with check valve
  • Mounting hardware kit
  • Tube nuts (x2)

Output

Specifications

Maximum Working Pressure (Excluding pump tubes)
  • 40 PSI (2.76 bar)
Maximum Suction Lift
  • 30 ft. of water at sea level (14.7 atm psi)
Ambient Operating Temperature
  • 14 F to 125 F (-10 C to 52 C)
Ambient Storage Temperature
  • -40 F to 158 F (-40 C to 70 C)
Motor
  • Brushless DC, 50W.
Duty Cycle
  • Continuous
Flow Range Adjustment
  • 0.01 – 100 GPD (0.01 – 15.8 LPH)
Enclosure
  • NEMA 4X (IP66), Valox (PBT) & PA12
Maximum Overall Dimensions
  • 7.25” W x 9” H x 10” D (18.5 W x 22.9 H x 25.2 D cm)
Product Weight
  • 6 lb. (2.7 Kg)
Approximate Shipping Weight
  • 13 lb. (5.9 Kg)
Approximate Shipping Dimensions
  • 10.5” W x 13.75” H x 11” D (26.7 W x 35 H x 28 D cm)
Operating Voltage
  • 115V60Hz 1 PH (0.6A max.)
  • 220V50Hz 1 PH (0.3A max.)
  • 230V60Hz 1 PH (0.3A max.)
  • 230V50Hz 1 PH (0.3A max.)
  • 240V50Hz 1 PH (0.3A max.)
Power Cord Options
  • 115V50/60Hz = NEMA 5/15 (USA)
  • 230V50/60Hz = NEMA 6/15 (USA)
  • 220V50/60Hz = CEE 7/VII (EU)
  • 240V50/60Hz = AS 3112 (Australia/New Zealand)

Accessories

kit-S7
KIT-S07

KIT STAR-3 7 GALLON TANK

Add to cart
kit-S15
KIT-S15

KIT STAR-3 15 GALLON TANK

Add to cart
kit-S30
KIT-S30

KIT STAR-3 30 GALLON TANK

Add to cart
KIT-MB

KIT A1/CD1 FLOOR MOUNT BRACKETS

Add to cart
Pump Mount Bracket - KIT-PSM
KIT-PSM

WALL MOUNT KIT 1/2/3/4 SERIES

Add to cart

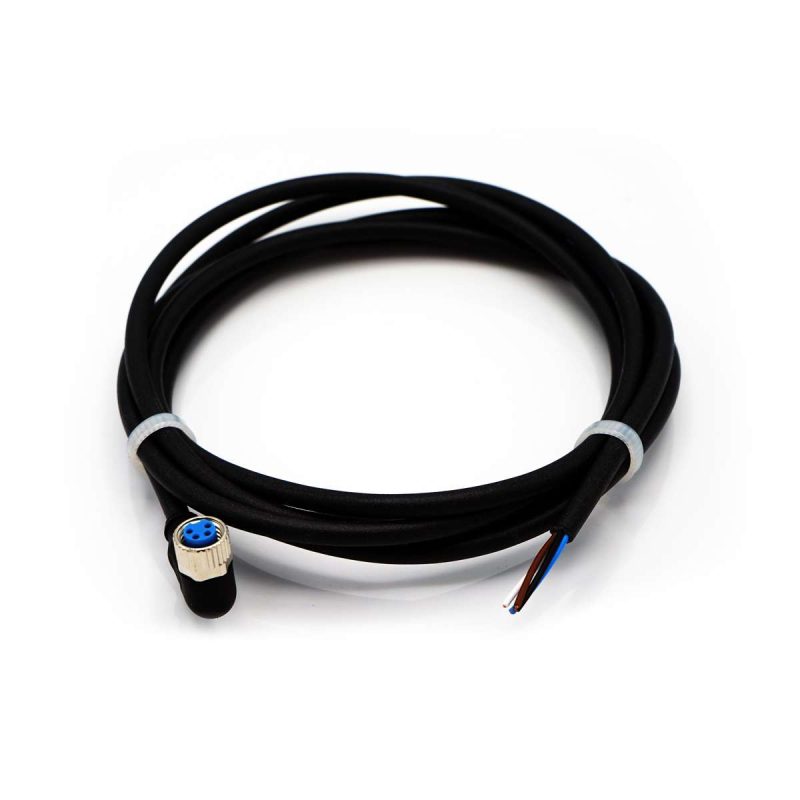

cable-m8
CABLE-M8

CONNECTOR CABLE M8 FEMALE 4 POSITION

Add to cart
