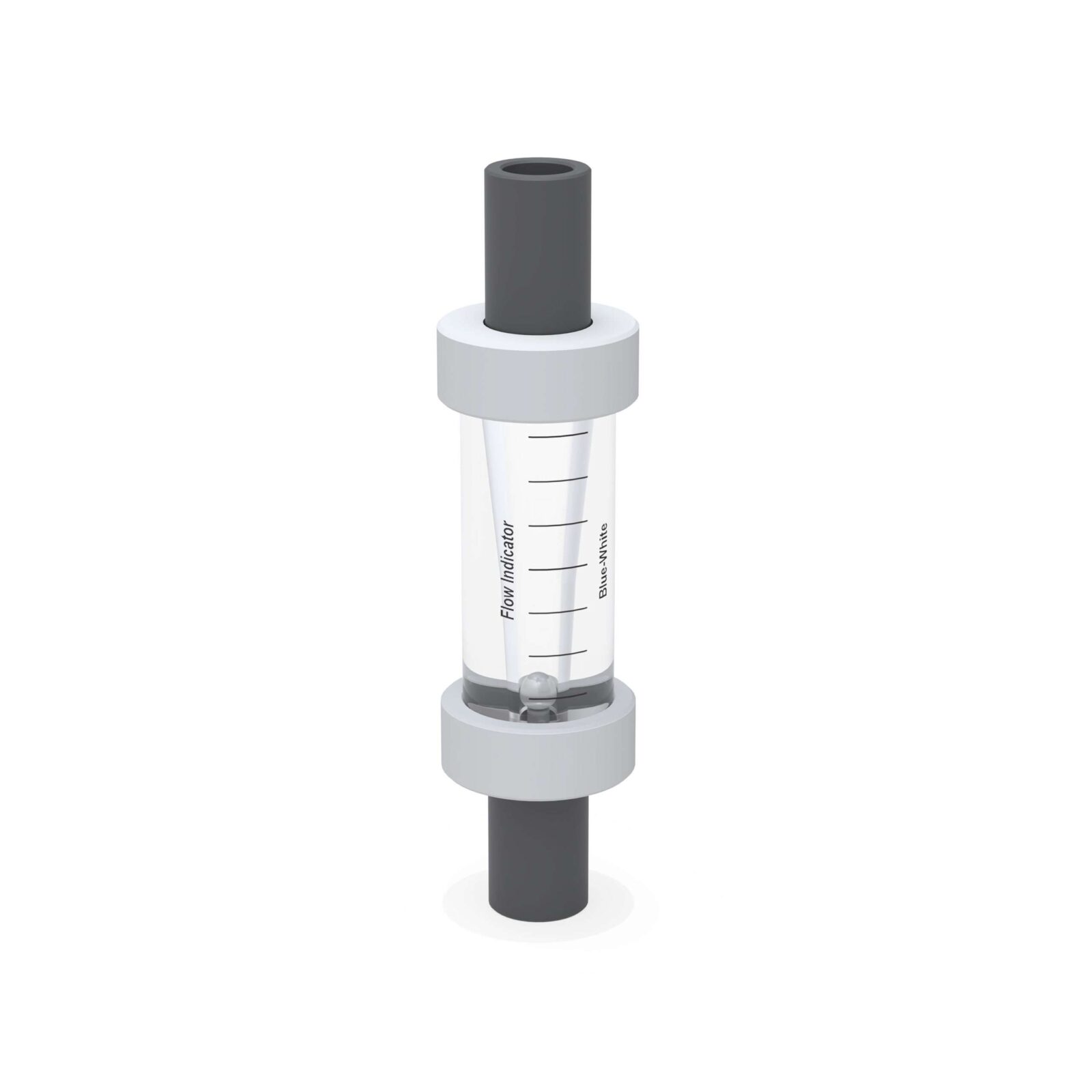

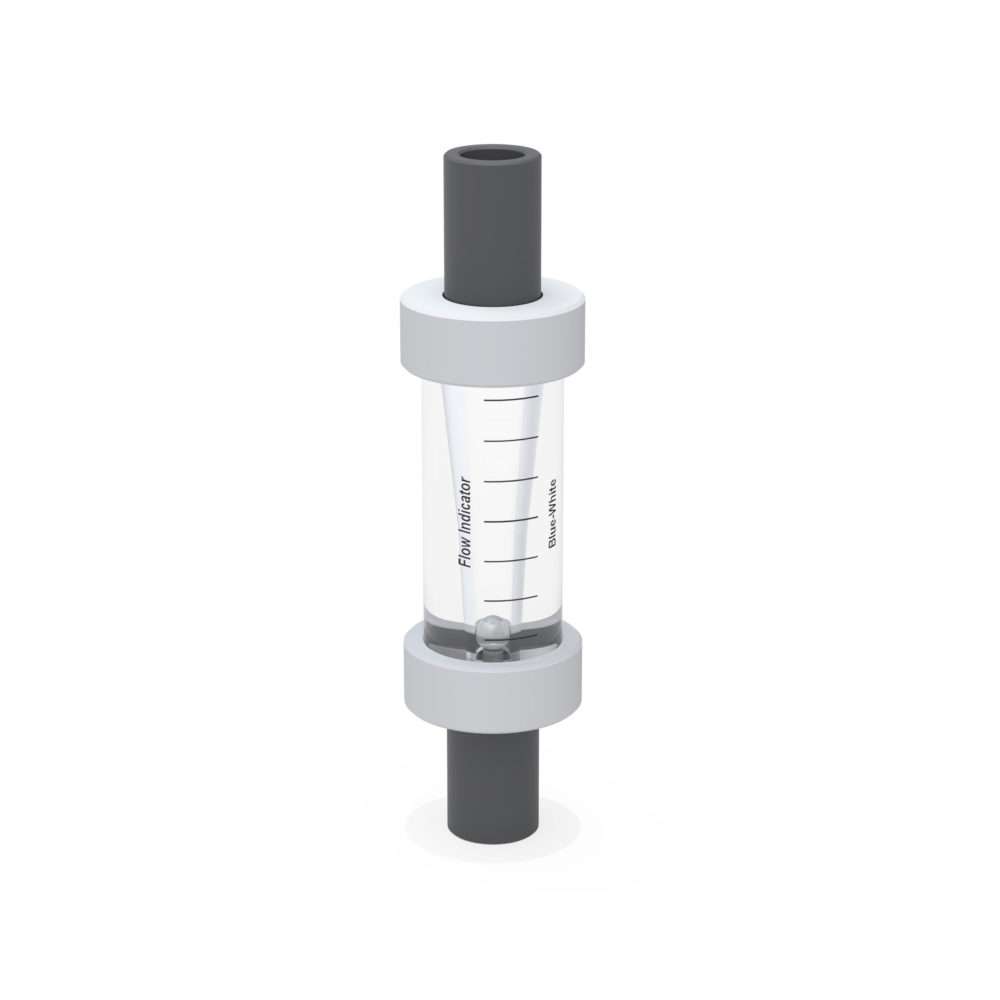

Flow Indicators

Monitor your chemical feed system

The Flow Indicator is an excellent diagnostic tool for monitoring flow in chemical feed pumps

Technical Overview:

mL/min
50 - 10000
GPH
.8 - 158.5
PSI
150
bar
10.3
Fahrenheit (°F)
150
Celsius (°C)
65
Meter Body
Annealed cast acrylic rod
Connections
½” PVC glue/slip, ½” PVC M/NPT
Literature

Features

Overview
  • Tough machined acrylic body, annealed, highly polished to a clear finish
  • Direct reading permanent scale
  • Minimum detectable flow rate = 50 ml/min (0.80 GPH)
  • Maximum flow rate = 158.5 GPH
  • PVC adapters with high grade Viton o-ring seals and polypropylene half unions
  • Ceramic flow indicator ball
  • Acceptable in direct sunlight applications
Benefits of a flow indicator
  • “Half union” style fittings for quick disassembly, aides in cleaning and/or replacement
  • Annealed cast acrylic for enhanced strength and chemical resistance
  • Dual taper detects for maximum flow range (200:1 turndown)
Visual Indicators
  • Rhythmic rising and falling of the ball indicates positive flow
  • Air bubbles indicate chemical has exhausted
  • Stationary ball indicates no flow
Diagnostic Capabilities
  • Lost prime
  • Stopped motor
  • Plugged injection fitting
  • Faulty tube or diaphragm
  • Plugged or dirty foot valve filter
  • Chemical has been exhausted for a lengthy period of time

Specifications

Maximum working pressure
  • 150 PSI (10.3 bar) @ 70° F (21° C)
Maximum Fluid Temperature
  • 150° F (65° C) @ 0 PSI
Scale length
  • 2″ (50mm)
Environment
  • Acceptable for direct sunlight exposure
Approximate shipping weight
  • 0.5 lb. (.23 kg)

Available Models
