CFPS-2

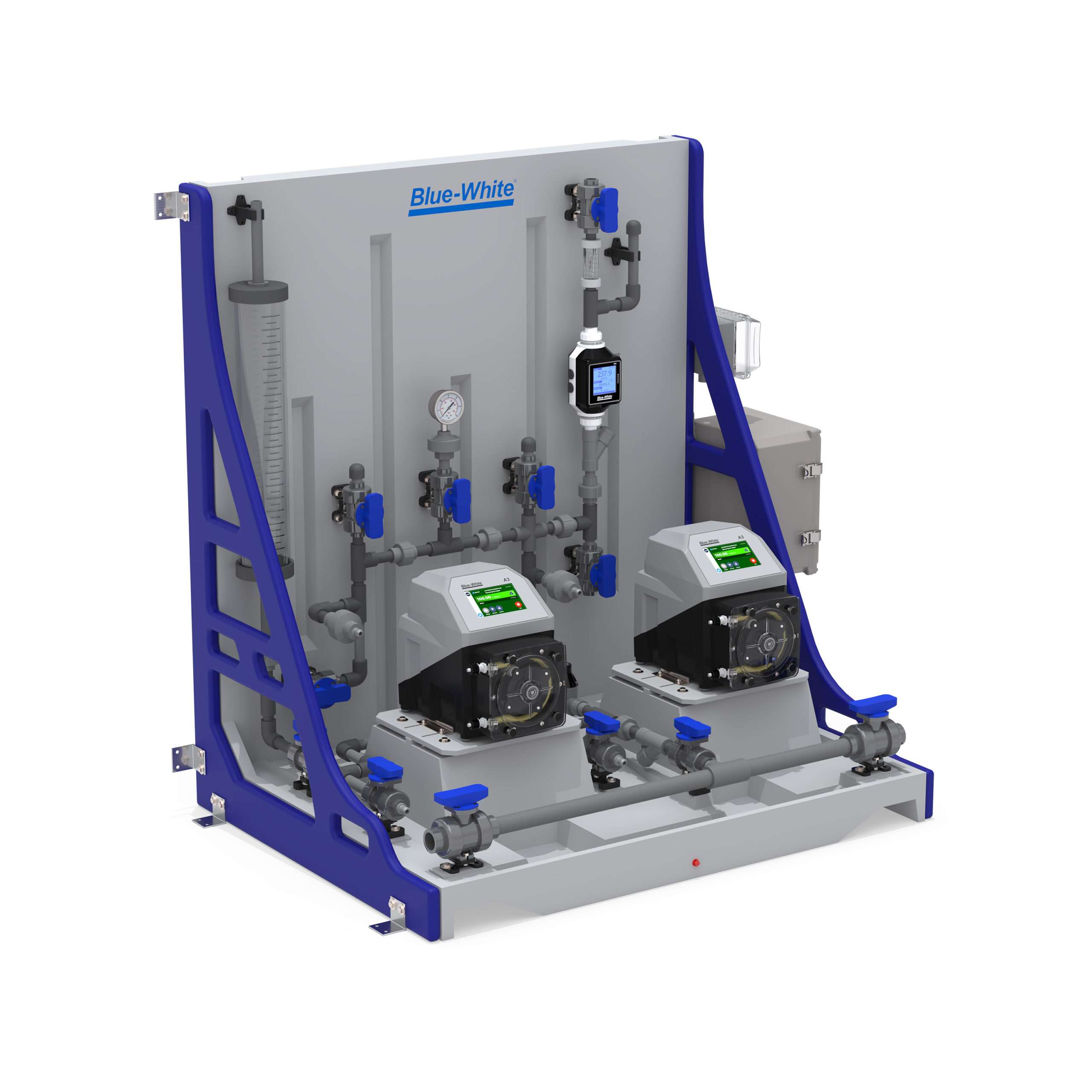

CHEM-FEED® Plastic Duplex Skid System

The CHEM-FEED® CFPS-2 Engineered Skid System (For industrial applications) ships fully assembled, simplifying installations and start-ups. CHEM-FEED® CFPS skids are constructed out of strong, light-weight chemical and UV resistant polyethylene and feature leak-free threadless connections. Pipe material options include PVC, CPVC, PVDF, and Chem Proline® (PE).

An optional SONIC-PRO® Chemical Flow Meter provides accurate measurement of chemical feed and features an isolated 4-20 mA output, process control via configurable solid state relay, and user configurable flow rate and total set-point triggers.

Technical Overview:

System Type
Duplex pump system
Product Compatibility
A1, A2, A3, A4, CD1, CD3, C2, C3
Frame Material
Polyethylene
Mounting Position
Floor or Wall
PSI
150
Bar
10.3
Literature
3D Visualizer

Features

CHEM-FEED® Engineered Skid Systems were designed and engineered using solid modeling tools for superior piping installation and easy component maintenance. Custom engineered universal mounting blocks provide for easy component servicing and replacement.

Benefits:
  • Straightforward chemical feed skid: easy to order, ready to install, 2-week lead-time
  • Visual flow indicator for visual confirmation that chemical is flowing
  • All installed components are isolated with ball valves for easy maintenance
Superior Design:
  • Constructed out of strong Chemical/UV resistant polyethylene
  • Heavy duty wall and floor mounting brackets included
  • Optional chemical feed flowmeter to precisely measure chemical output from the metering pump
  • Optional local wiring connections, easy-to-access power and inputs/outputs
Safety Features:
  • Threaded plug for cleaning and spill diversion in drip containment reservoir
  • Ball valves are vented for operator safety
  • Leak-free threadless connections to ensure leak-free chemical feed
What’s Included:
Standard
  • Piping/Unions – Specify from PVC, CPVC, PVDF, or Chem Proline® (PE)
  • Pressure Relief Valve – Protects the system from over-pressurization, 10-150 psi setting range, 150 psi maximum system pressure
  • Check Valve – Protects the user from back-flow during pump maintenance
  • Flow Indicator – Provides a visual indication of chemical movement through the system
  • Inlet Y Strainer – Recommended for Diaphragm Pump systems
Optional components (see product matrix)
  • Calibration Cylinder – Confirm pump output under system conditions. Specify cylinder volumes from 1.6 GPH to 64 GPH.
  • Pulsation Dampener – Protect the system components from pulsation. Recommended for diaphragm pump systems only
  • Pressure Gauge with Guard – Isolate and protect the system pressure gauge. Specify pressure ranges from 0-30 psi, 0-100psi, or 0-200 psi
  • S6A Chemical Flowmeter – Provides 4-20mA and pulse output data to SCADA and to the pump to verify chemical feed
  • Terminal Box: Pumps pre-wired for easy access to all electrical signal wires
  • Electrical Outlet Box: Designed for use in wet, damp, or dry locations
  • Back Pressure Valve – Protects the user from back-flow during pump maintenance
  • Pressure Switch with Guard – Activate or de-activate equipment when pressure in a piping system either rises or falls to a set pressure

Specifications

Skid Frame
  • Chemically resistant polyethylene structure. Welded joint construction.
Maximum working pressure
  • 150 psig (10.3 bar)
Operating Temperature
  • 14 F to 115 F (-10 C to 46 C)
Seals
  • FKM seals (optional EPDM).
Y Strainer (S)
  • PVC body, 1/32” Mesh
Universal mounting blocks
  • PA 12
Pump extended mounting brackets
  • 316 Stainless Steel
Skid mounting foot pads
  • 316 Stainless Steel
Tubing clamps
  • 300 series SS band, 400 series SS screw
Unions (U)
  • PVC body, schedule 80
Ball valves (V)
  • True unions, PVC body, PTFE shaft bearings and seats
Pulsation Dampener (PD)
  • CPVC body,10 cubic inch volume
Check Valve (CV)
  • PVC body. Cracking pressure: 1.0-1.5 psi. Maximum working pressure: inlet = 150 psi, back = 100 psi.
Flow Indicator (F)
  • Machined cast acrylic, PVC connections, ceramic ball, PVDF ball stop, PVC half unions.
Pressure Relief Valve (PRV)
  • PVC body, PTFE primary diaphragm seal. Non-wetted components: EPDM secondary seal, zinc plated steel spring, stainless steel external hardware, HDPE pressure adjustment screw. Infinite adjustment from 10-150 psi.
Calibration Cylinder (CC)
  • PVC body, PVC end caps, 1/2” PVC pipe outlet vent. Available volumes: 1.6 GPH (100ml), 4 GPH (250ml), 8 GPH (500ml), 16 GPH (1000ml), 32 GPH (2000ml), and 64 GPH (4000mL).
Gauge w/guard (G)
  • Gauge: liquid filled stainless steel with blowout plug, bottom mount, 1/4” NPT theads. Available pressure ranges: 0-30 psi, 0-100, psi, 0-200 psi. Guard: PVC body, temperature compensated oil filled.
Tubing (T)
  • Reinforced braided PVC, 200 psi max, meets NSF std. 51. The pump inlet and outlet flexible tubing connections are terminated to half unions and secured to the barbed fitting with stainless steel clamps.
Pump (sold separately)
  • FLEXFLO® model A1, A2, A3, or A4 peristaltic pumps
  • CHEM-FEED® model CD1, C2, C3, or CD3 diaphragm pumps
Piping
  • Single Skid: 1/2” PVC Schedule 80 (optional CPVC, PVDF, PE).
  • Duplex Skid: 1” Inlet & 1/2” Outlet PVC Schedule 80 (optional CPVC, PVDF, PE).
  • Triplex Skid: 1” Inlet & 1/2” Outlet PVC Schedule 80 (optional CPVC, PVDF, PE).
Mounting hardware
  • 18-8 Stainless Steel
  • Single Pump System
  • – Wall or Floor mounting acceptable
  • Duplex Pump System
  • – Wall or Floor mounting acceptable
  • Triplex Pump System
  • – Floor mounting only acceptable
Approximate Shipping Weight
  • Single Pump System
  • – Standard: 80 lb. (36 Kg)
  • – With Mounted Pump: 140 lb. (64 Kg)
  • Duplex Pump System
  • – Standard: 120 lb. (54 Kg)
  • – With Mounted Pumps: 240 lbs (109 Kg)
  • Triplex Pump System
  • – Standard: 200 lb. (91 Kg)
  • – With Mounted Pumps: 380 lbs (172 Kg)
