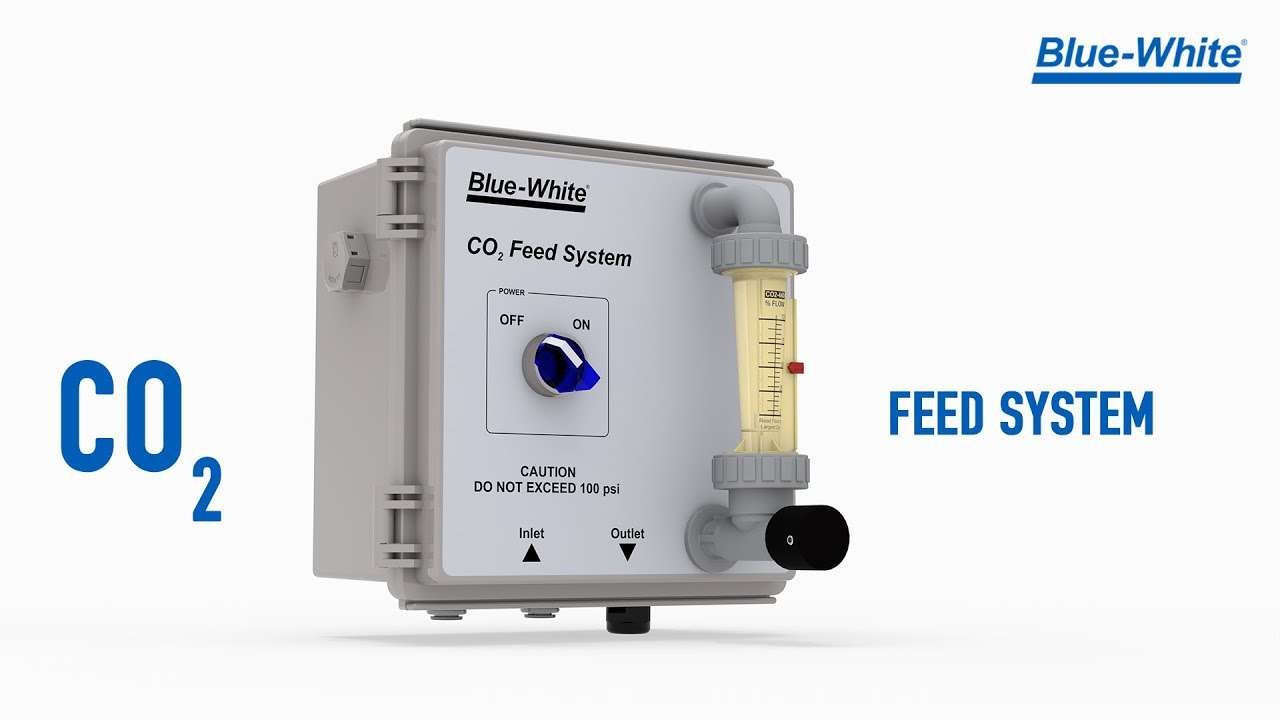

CO₂ Feed System

Safe and Effective pH Control

Discover our CO₂ Feed System: pH Control, simplified. Replace hazardous acids with this safe alternative, complete with an accurate Blue-White® F-440 flow meter, illuminated on/off switch, stainless steel solenoid valve, and easy push connectors for hassle-free setup. Experience next-level pH control – choose safety, precision, and convenience.

Technical Overview:

Flow Ranges

0-80 SCFH, 30-350 SCFH

Enclosure

NEMA 4X

Warranty

1 Year

Flow Meter

F-440 Polysulfone Flow Meter

Injector

Fine Air Diffusion

Solenoid Valve

Stainless Steel

Features

Specs

Videos

Downloads

Features

Overview

Simple design allows safe and effective pH control. The CO₂ Feed System maintains the desired pH level by directly injecting carbon dioxide into the water supply. This process creates carbonic acid, which lowers the water’s pH level naturally without hazardous chemicals such as sodium bisulfate, muriatic acid, or sulfuric acid.
Completely enclosed in a NEMA 4x enclosure to protect against harsh environments. Simple installation for indoor and outdoor use.
Flow adjustment via Blue-White F-440 adjustable flow meter is accurate and consistent, and includes red indicator marker.
Simple activation with stainless-steel solenoid valve and illuminated on-off switch.
Includes inlet/outlet tubing, and mounting brackets.

Applications

Aquatics / Swimming Pool
Drinking Water / Domestic Water
Wastewater / Effluent
Industrial Process Water Effluent
Food & Beverage Process Water
Water Reuse pH Control

What’s Included

CO₂ Feed System
3/8″ OD inlet/outlet tubing
6 FT power cord

Specifications

Item

CO₂ Feed System

Flow Range

Range 1: 0-80 SCFH
Range 2: 30-350 SCFH

Flow Meter

Range 1: Blue-White F-440 Polysulfone / PVDF Float
Range 2: Blue-White F-440 Polysulfone / Stainless Steel Float

Enclosure

Nema 4X, PVC

Operating Temperature

40 – 104 °F (4 °C – 40 °C)

Operating Pressure

0 – 80 psi (0 – 5.5 bar)

Maximum Pressure

100 psi (6.9 Bar)

Tubing Material

3/8” OD Polyurethane

Solenoid Valve

Stainless Steel Body

Power Supply

115VAC 50/60 Hz, 0.6A (6 ft cord included)

Dimension (H x W x D)

8.3” x 8.3” x 5.1” (H x W x D mm)

Approximate Weight

~ 5 lbs (2.3 kg)

Warranty

12 Months

Downloads

Title	Size	Update Date	Download
CO₂ Feed System Instruction Manual – 80000-722	2.94 MB	April 15, 2024	Download
CO₂ Feed System Technical Data Sheet – 85000-191	438.72 KB	April 15, 2024	Download
Industrial Catalog 2024 – 80000-707	17.00 MB	April 16, 2024	Download
Municipal Products Brochure	2.98 MB	February 14, 2024	Download
