Quick Disconnect Fittings

Safely and quickly disconnect your pump

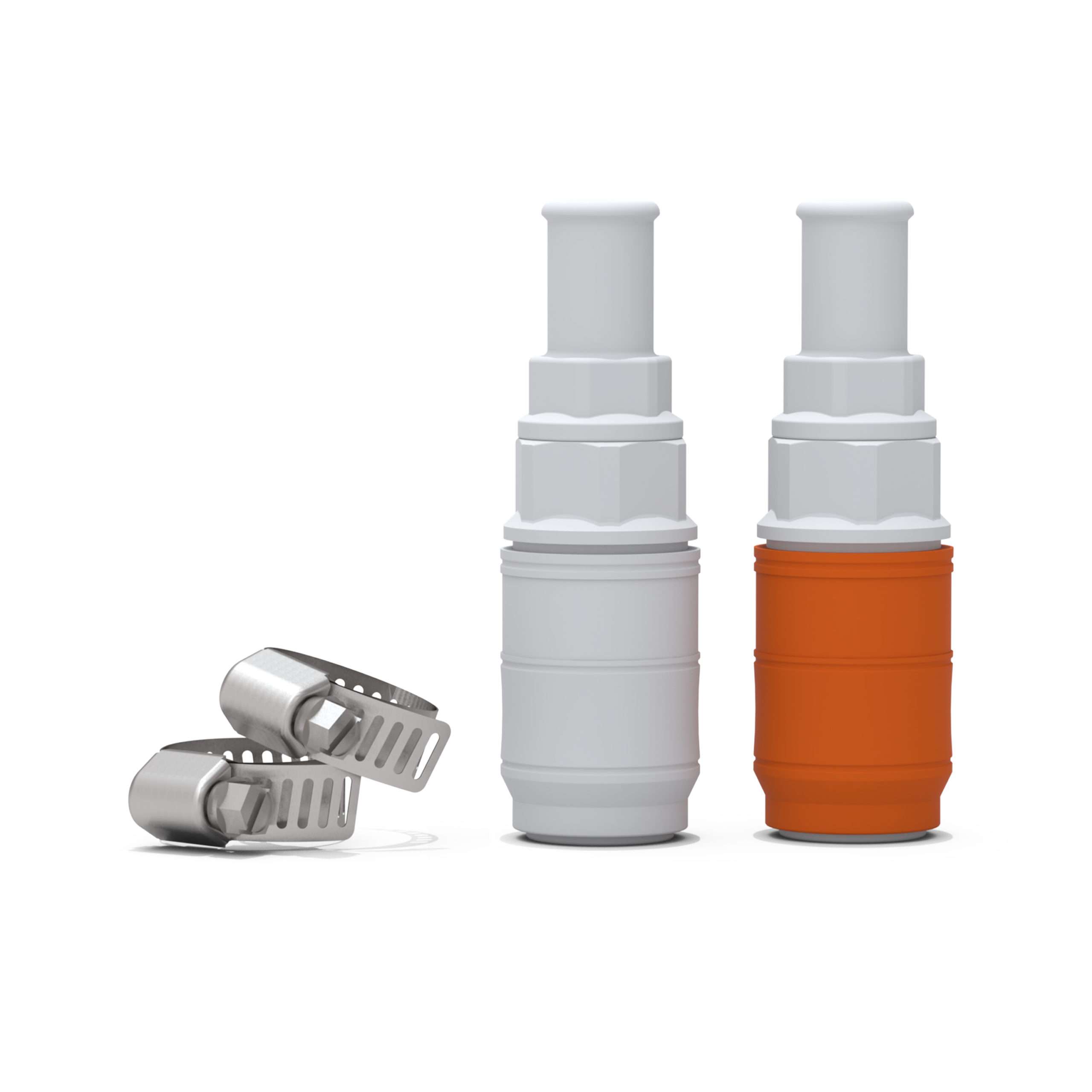

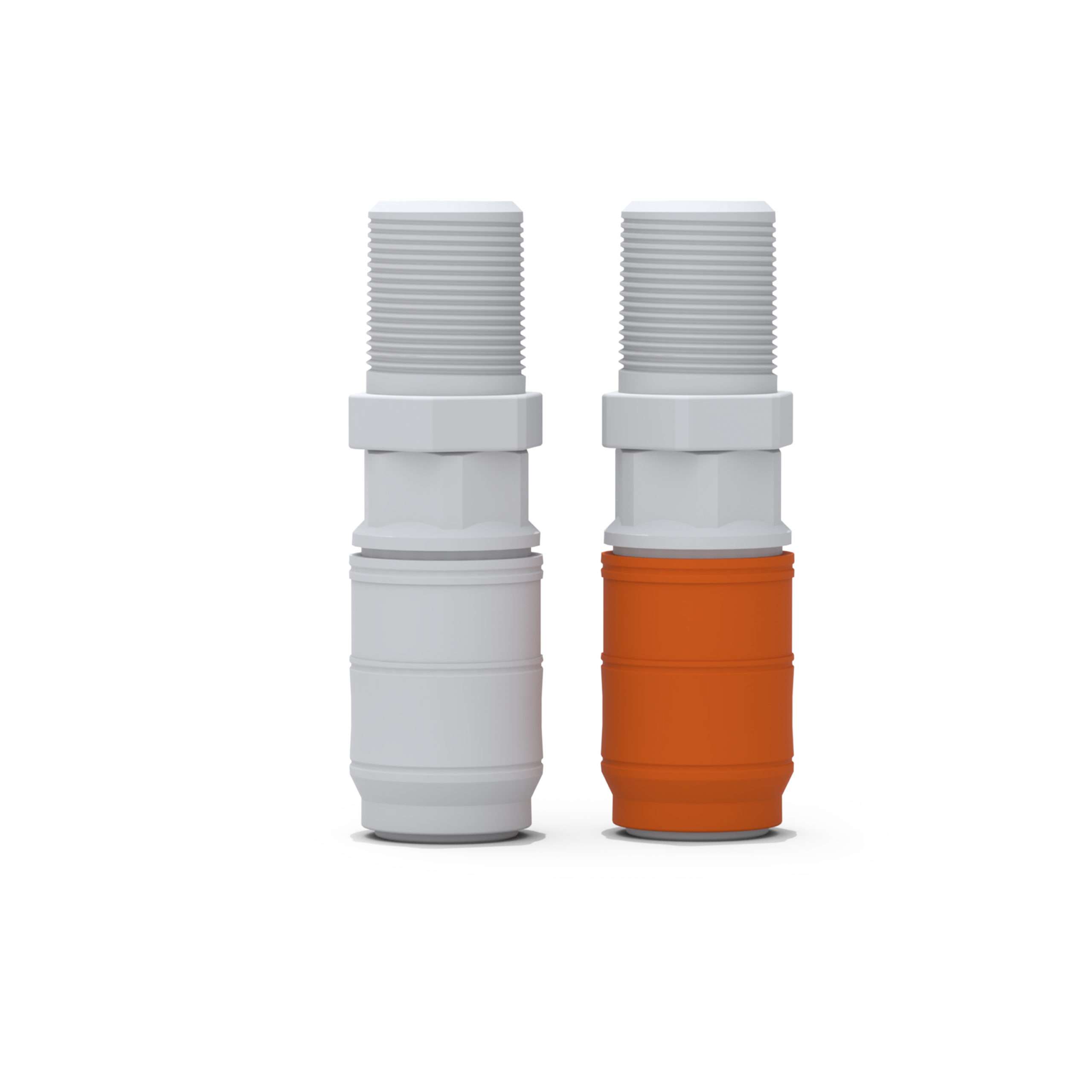

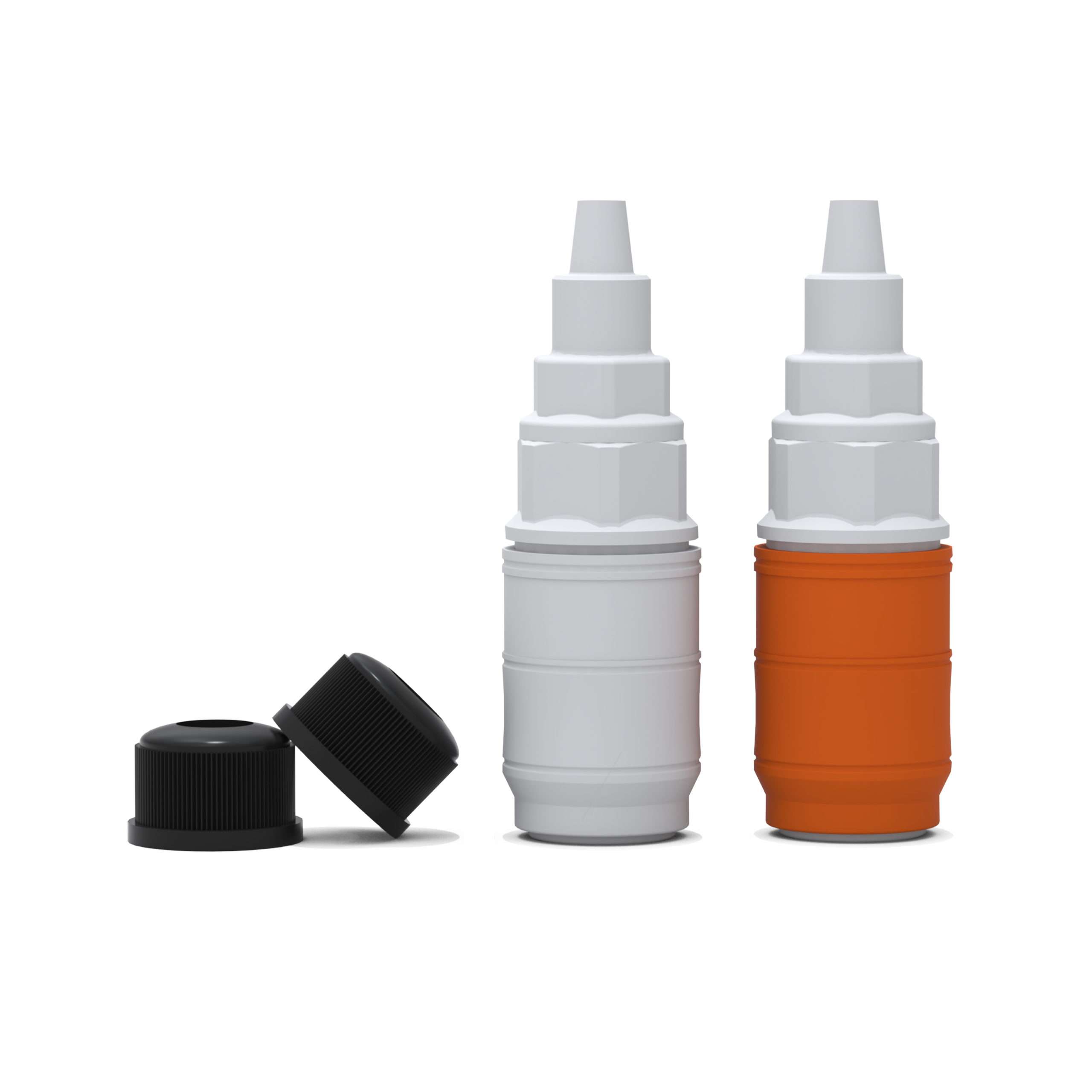

The orange discharge fitting has an automatic (active) check valve, preventing chemical backflow. The white suction fitting functions as a check valve when tubing is detached, preventing loss of prime and spills while changing the tube assembly. The suction valve is forced open when the tube assembly is attached.

Features

Discharge fitting (orange)
  • Installs on the outlet side of the pump
  • Orange indicates lines may be pressurized
  • Active check valve that prevents chemical flow in the reverse direction
  • Internal valve is safely usable up to 2lbs of pressure
Suction fitting (white)
  • Installs on the inlet side of the pump
  • White indicates the line is not pressurized
  • Contains a valve that is closed
  • Valve opens upon installation allowing flow

Specifications

Body
  • PVDF
Spring
  • Hasteloy C
O-ring
  • FKM, EP, TFE/P
Temperature
  • 212 °F (100 °C)
Pressure rating
  • 125 PSI

Product Compatibility

Pumps Compatible Tube Assemblies
A2, M2 ND, NEE, NGG, G2G
A3, M3 ND, NEE, NGG, NKL, G2G
A4, M4 All listed tube assemblies
CD1, MD1 All listed tube assemblies

Accessories

Exploded View
