R-300

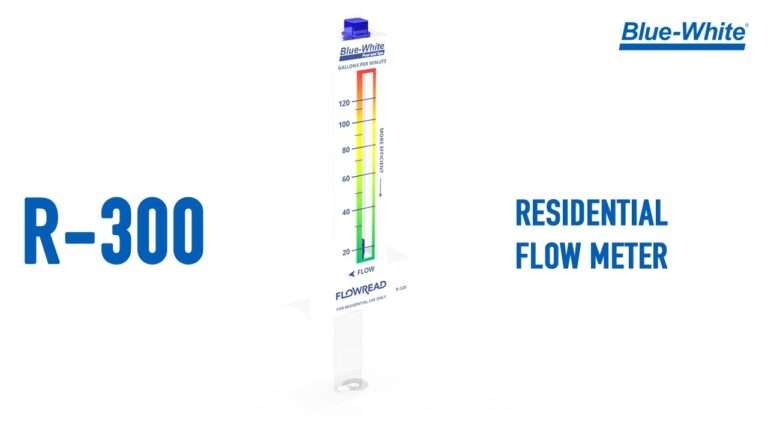

FLOWREAD™ Residential Pool Flow Meter

Technical Overview:

GPM
10 - 150
LPM
37.8 - 567
PSI
75
Bar
5.2
Fahrenheit (°F)
70
Celsius (°C)
21
Body Material
Acrylic
Pipe Sizes
1½”, 2”, 2½”

$79.00

Literature
Flow Rate Calculator

Features

The FLOWREAD™ R-300 flow meter is designed specifically to measure the exact gallons per minute going through a pool system to help maximize energy savings and improve water quality. It installs in minutes, works with any pool, and requires no unions, adapters, primer, PVC cement, hacksaws, or PVC pipe cutting tools. Made in the USA.

R-300 Model Variations:
  • Flow Range: 10-150 GPM
  • R-315 – 1.5”, R-320 – 2”, R-325 – 2.5” – Horizontal flow only
  • Well suited for closed pipe installations
  • Easy to read scale, UV screen printed on both sides of the meter body
  • Acceptable for outdoor installations (direct sunlight okay)
  • Pitot Tube (impact tube) design makes it easy to install on existing pipe
  • One piece, machined acrylic meter body
  • Included SS clamps and gasket seal
  • For use on PVC Pipes
What’s Included:
  • Flowmeter x1
  • Rubber Gasket x1
  • Clamp x2

Specifications

Pipe Requirements:
  • IPS inch pipe size (ASTM-D-1785)
Max. Bar (PSI):
  • 75 PSI (5.2 bar) @ 70 F (21 C)
Accuracy:
  • 5%
Power requirement:
  • No power required.
Fluid temp. range:
  • 32 to 190 F / 0 to 88 C @ 0 PSI
Ambient temp. range:
    • 0 to 110 F/ -18 to 43 C

NOTE: Temperature & Pressure ratings of meter only. Actual pipe rating may vary.

Approximate shipping weight:
  • 1 lb (0.45 kg)
Meter Body:
  • Cast Acrylic
Float:
  • PVDF
Gasket:
  • Neoprene
Pipe Clamp:
  • 316 series Stainless Steel

Order Now

Nothing to display here

Meter Ranges

Horizontal Pipe Installation:

MODEL NO. PIPE SIZE PIPE MATERIAL FLOW RANGE
R-315 1.5” IPS PVC 10 – 70 GPM
R-320 2” IPS PVC 20 – 120 GPM
R-325 2.5” IPS PVC 30 – 150 GPM

Accessories

flow-sensor-switch
F-300S

KIT F-300 SENSOR/SWITCH 1.5″P – 4.0″P &ONLY

Add to cart
flow-sensor-switch
F-300SL

KIT F-300 SENSOR/SWITCH 1.0”P, 1.25”P & 1.0”T-2.0”T

Add to cart

Replacement Parts

ImageCatalog NumberDescriptionPriceBuy

Downloads

Title
Aquatic Catalog 2024 – 80000-709

4.67 MB December 29, 2023
R-300 Instruction Manual – 80000-607

468.11 KB February 8, 2022
R-300 Quickstart Guide – 80000-701

541.60 KB April 22, 2022
R-300 Technical Data Sheet – 85000-145

598.00 KB January 12, 2024
