C-1500N
CHEM-FEED® Multi-Diaphragm Metering Pump

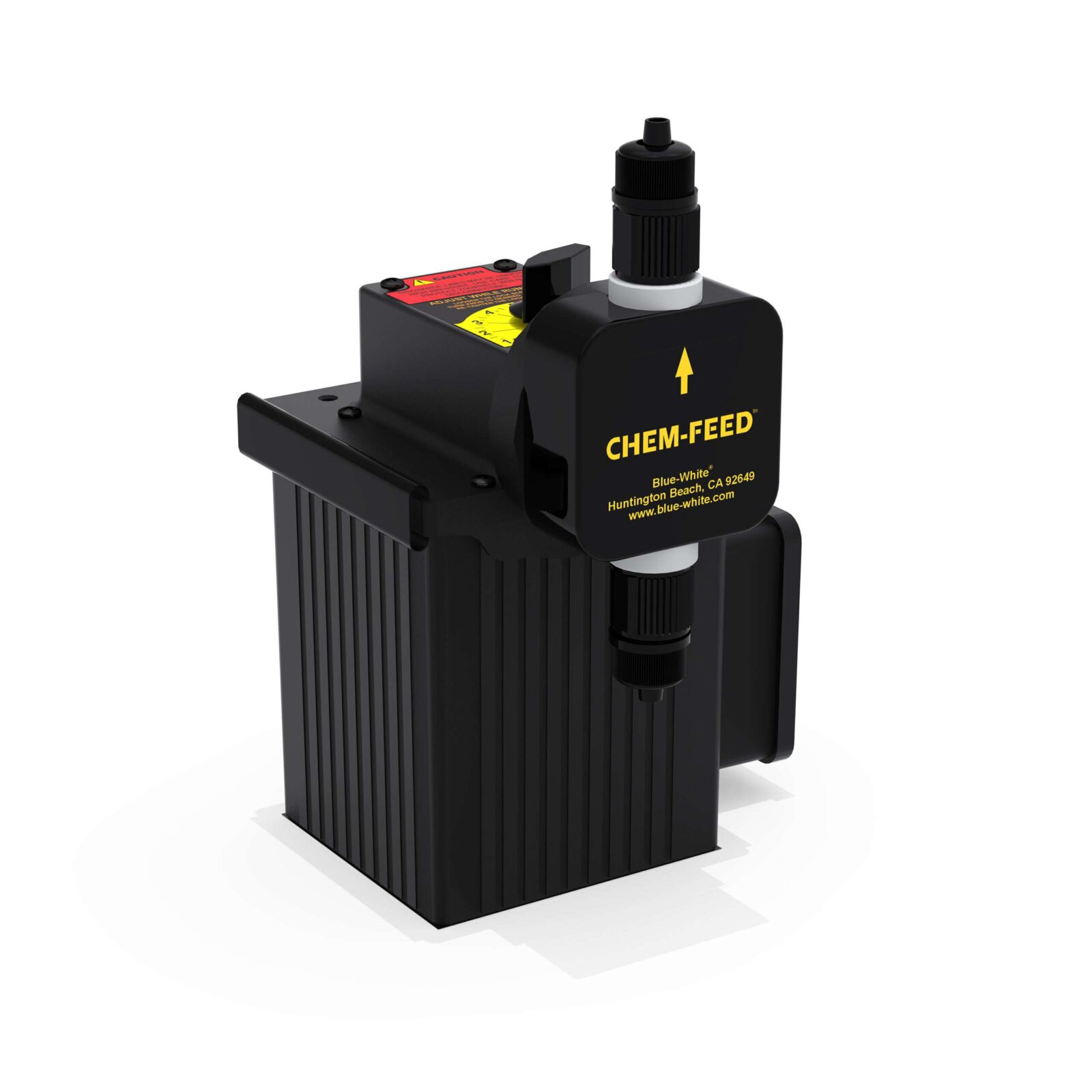

C-1500N Series Injectors feature Blue-White’s exclusive heavy-duty head with cartridge valves constructed of PVDF. Each valve has two ceramic checks and is double-sealed. The double ball valve design enhances priming and is exceptional for purging air and gas. The heavy-duty head is nearly maintenance-free, and the bottom and top valves are completely interchangeable for quick, easy, and economical servicing.
The C-1500N features a quick adjusting, high accuracy mechanical stroke length control.
Technical Overview:
GPH
.2 - 9.5
LPH
.5 - 36
mL/min
8.3333 - 600
Pressure
125 PSI (8.6 Bar)
Enclosure Rating
NEMA 3R (IP23)
Standards
NSF/ANSI 50, CE, ETL, CSA, RoHS
Control Methods
Manual
Power Supply
100 to 240VAC-50/60Hz
Literature
C-1500N Literature
Instruction Manuals
C-1500N Instruction Manual – 80000-137
C-1500N STAR SYSTEM Instruction Manual – 80000-213
Technical Data Sheets
C-1500N Technical Data Sheet – 85000-041
Catalog
Overview
Key Features
Fixed Speed Diaphragm Pump
- Economical and versatile.
- Max Feed: 9.5 GPH (36 LPH).
- All ball bearing, permanently lubricated gear motor for smooth, quiet, powerful operation.
- Stroke adjustment from 5-100% permits accurate small injections at a high rate per minute.
Output Control Options
- Standard Models feature a quick adjusting, high accuracy mechanical stroke length control. The pump’s efficient design allows for a minimum stroke length of 5%. The Minimum recommended output is 5% of the maximum.
Construction
- Outdoor rated enclosure.
- Durable housing of chemical resistant Val ox (PBT) thermoplastic.
- PTFE coated EP diaphragm.
- Double-ball inlet and outlet cartridge type ceramic check valves. Chemical resistant PVDF valve body and fitting, ceramic balls, Viton static seals, and TFE/P ball seat o-rings.
- No metal springs are used.
Motor
- All ball bearing, permanently lubricated gear motor for smooth, quiet, powerful operation.
Performance Data
Output Table
| Model Number | Max Strokes/Min | Diaphragm | Stroke length | Max Output at 0 PSI | Max PSI | |||
|---|---|---|---|---|---|---|---|---|
| Inch | GPD | GPH | LPH | OZ/MIN | ||||
| C15N102X026V00 | 30 | small | .055 | 8.3 | 0.3 | 1.3 | 0.7 | 125 |
| C15N302X026V00 | 60 | small | .055 | 16.3 | 0.6 | 2.5 | 1.4 | 125 |
| C15N202X000V00 | 45 | large | .055 | 26.6 | 1.1 | 4.2 | 2.4 | 125 |
| C15N402X026V00 | 125 | small | .055 | 34.2 | 1.4 | 5.4 | 3.0 | 25 |
| C15N201X000V00 | 45 | large | .125 | 60.7 | 2.5 | 9.6 | 5.4 | 125 |
| C15N301X000V00 | 60 | large | .125 | 72.0 | 3.0 | 11.3 | 6.4 | 60 |
| C15N402X000V00 | 125 | large | .055 | 68.4 | 2.8 | 10.8 | 5.9 | 125 |
| C15N303X000V00 | 60 | large | .187 | 112.8 | 4.7 | 17.9 | 10.1 | 60 |
| C15N401X000V00 | 125 | large | .125 | 155.9 | 6.4 | 24.6 | 13.8 | 20 |
| C15N443X000V00 | 125 | large | .187 | 228.1 | 9.5 | 36.0 | 20.2 | 10 |
Technical
Specifications
Maximum working pressure
125 psig
8.6 bar
Maximum fluid temperature
130° F
54° C
Maximum Ambient temperature
14 to 110° F/ -10 to 43° C
Maximum viscosity
1,000 Centipoise
Maximum suction lift
10 ft. Water at sea level
0 psi
Operating Voltage
- 115VAC/60Hz, 1ph (.74 Amp Maximum)
- 230VAC/60Hz, 1ph (.36 Amp Maximum)
- 220VAC/50Hz, 1ph (.31 Amp Maximum)
- 240VAC/50Hz, 1ph (.29 Amp Maximum)
- 24VAC/60Hz, 1ph (3.4 Amp Maximum)
Power Cord Options
- 115V60Hz = NEMA 5/15 (USA)
- 230V60Hz = NEMA 6/15 (USA)
- 220V50Hz = CEE 7/VII (EU)
- 240V50Hz = AS 3112 (AU)
Motor
AC shaded pole
Duty cycle
Continuous
Motor speed adjustment range
20:1 5% – 100% motor speed
Enclosure
NEMA 3R (IP23) Valox
Maximum Overall Dimensions
4.5” X 9.062” X 5.750”
11.4 W x 23 H x 14.6 D cm
Product weight
7lb.
3.18 Kg
Approximate shipping wt
35 lb.
3.63 Kg
RoHS Compliant
Yes
Standards
NSF/ANSI 50, cETLus, CE
Order Information
