C-600P

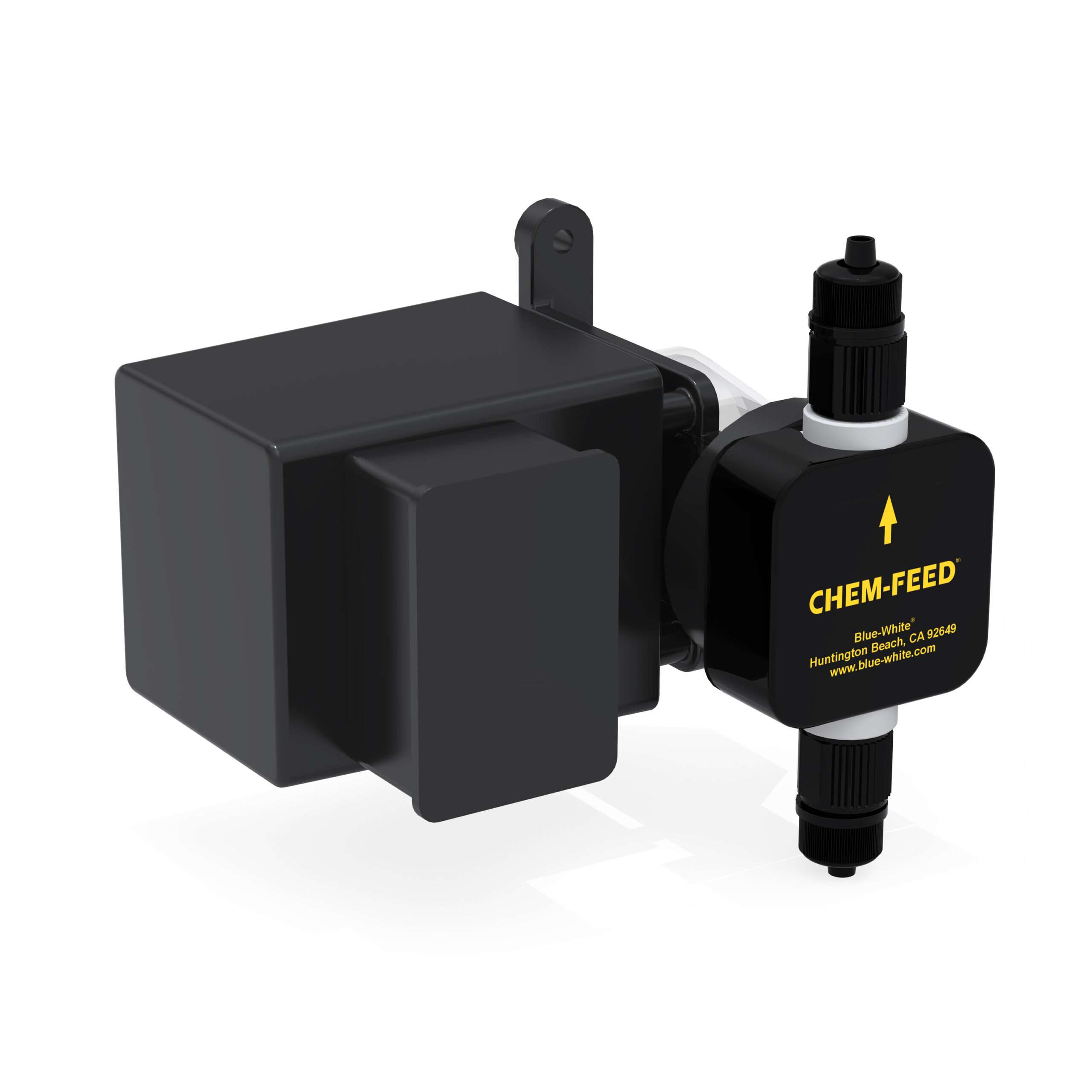

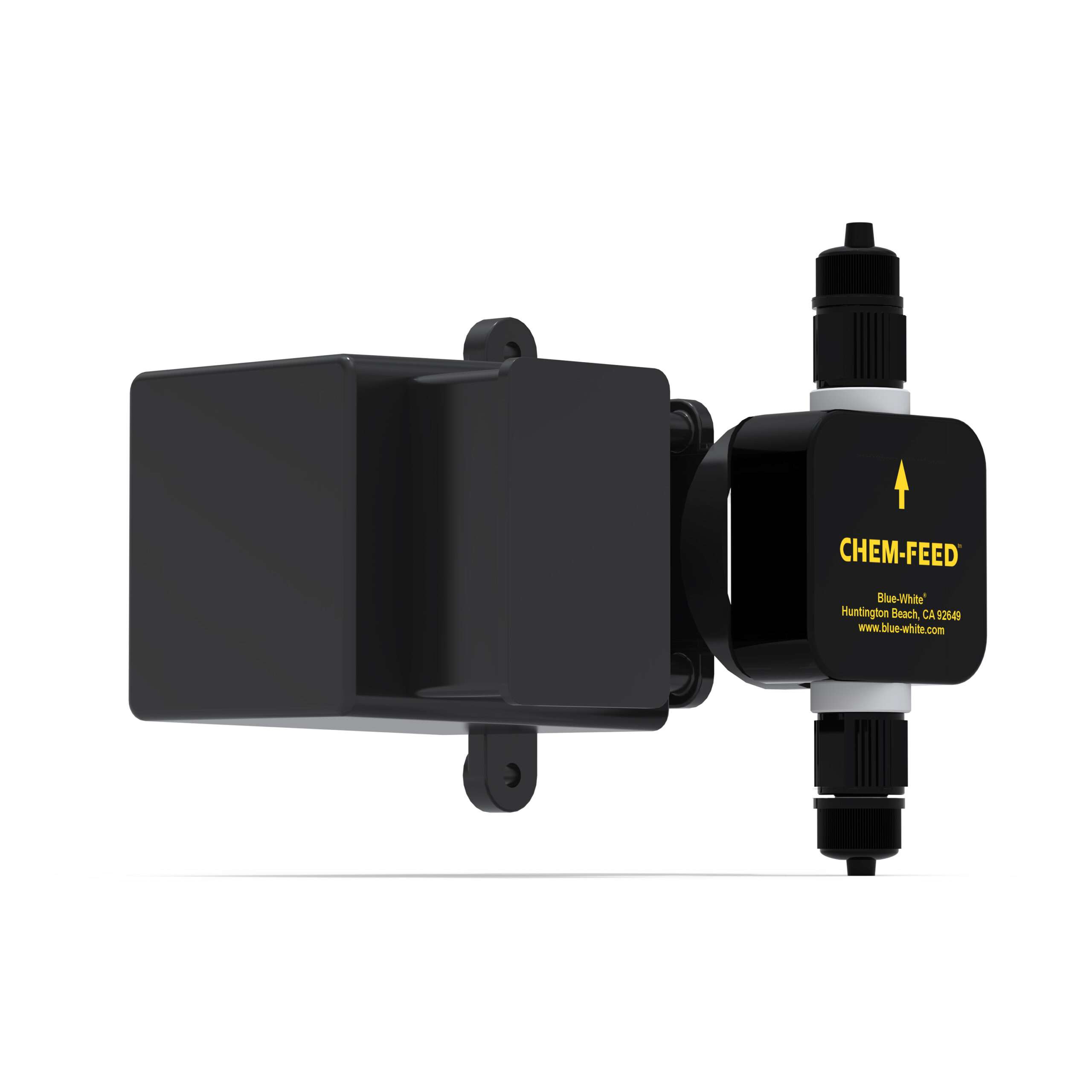

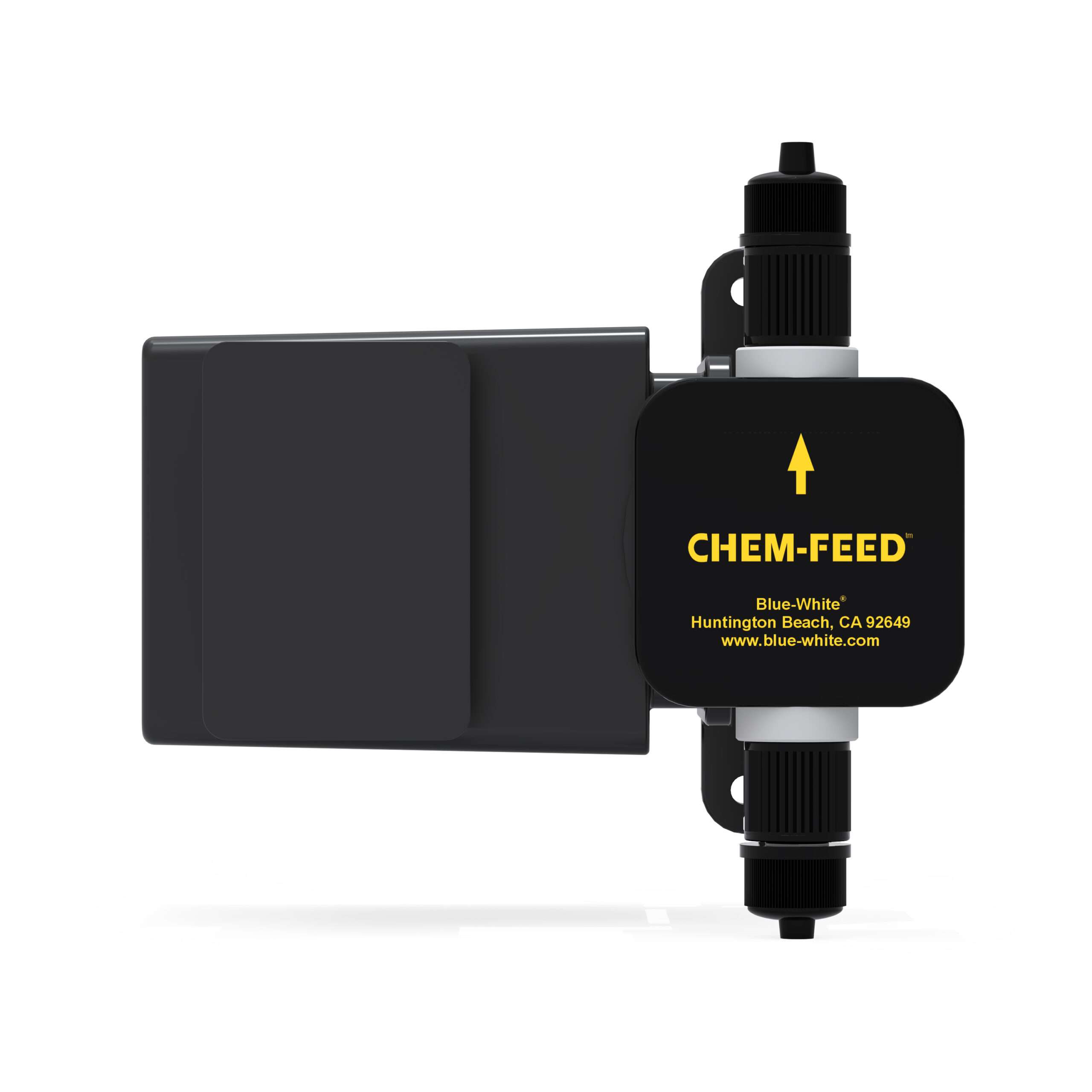

CHEM-FEED® Diaphragm Metering Pump

The CHEM-FEED® C-600P Diaphragm Metering Pump is a simple and economical solution to a wide range of commercial and industrial fluid process applications.  This compact pump features an all-ball bearing, permanently lubricated gear motor for smooth, powerful, and quiet operation.  Stroke adjustment from 4-100% permits accurate small injections at a high rate per minute.

Technical Overview:

GPH
1 - 21.5
LPH
4 - 81.4
mL/min
66.7 - 1357
Pressure
125 PSI (8.6 Bar)
Enclosure Rating
NEMA 1 (IP20)
Standards
NSF/ANSI 50, CE, ETL, CSA, RoHS
Control Methods
Manual
Power Supply
100 to 240VAC-50/60Hz
Literature

Features

Benefits:
  • All ball bearing, permanently lubricated gear motor for smooth, quiet, powerful operation.
  • Double-ball inlet and outlet cartridge type ceramic check valves. Chemical resistant PVDF pump head, valve body and fittings, ceramic balls, FKM static seals and TFE/P ball seat orings. No metal springs are used.
  • Outputs to 516 GPD.
  • Output pressures to 125 PSI.
  • Stroke adjustment from 4-100% permits accurate small injections at a high rate per minute. 27:1 turndown
  • PTFE coated Ethylene Propylene diaphragm can handle a wide variety of applications.
  • Durable metal epoxy coated construction.
  • PVDF suction (foot) valve with FKM and TFE/P o-rings, ceramic check ball and removable polypropylene filter screen.
  • Includes 3/8” OD x 1/4” ID suction and discharge tubing, Injection fitting with spring-loaded check valve and all mounting hardware.
What’s Included:
  • C-600P Diaphragm Metering Pump
  • Discharge injection fitting with check valve
  • Suction tube – clear PVC – 5′ length (3/8″ OD, 1/4″ ID)
  • Suction foot valve / strainer
  • Suction ceramic weight
  • Discharge tube – opaque polyethylene – 5′ length (3/8″ OD, 1/4″ ID)
  • Mounting hardware kit

Output

Specifications

Maximum Working Pressure
  • 125 psig (8.6 bar)
Maximum Fluid Temperature
  • 130° F (54° C)
Maximum Ambient Temperature
  • 14 to 110° F/ -10 to 43° C
Maximum Viscosity
  • 1,000 Centipoise
Maximum Suction Lift
  • 10 ft. Water at sea level (14.7 atm psi)
Operating Voltage
  • 115VAC/60Hz, 1ph (.74 Amp Maximum)
  • 230VAC/60Hz, 1ph (.36 Amp Maximum)
  • 220VAC/50Hz, 1ph (.31 Amp Maximum)
  • 24VAC/60Hz, 1ph (3.40 Amp Maximum)
  • 12VDC (3.00 Amp Maximum)
  • 24VDC (1.50 Amp Maximum)
Power Connection
  • Junction box for field wiring
Motor
  • AC shaded pole
Duty Cycle
  • Continuous
Output Adjustment Range
  • 4% – 100% motor speed
Enclosure
  • NEMA 1 (IP20) powder coated zinc
Approximate shipping wt
  • 8 lb. (3.63 Kg)
RoHS Compliant
  • Yes
Standards
  • NSF/ANSI 50, UL, CSA, CE

Accessories

A-014N-6A

INJECTOR WITH 37T VIT 1/2 PSI PP

Add to cart
C-334-6-10

TUBE SUCTION 3/8 X 10 FT

Add to cart
C-335-6-25

TUBE D/CHARGE 3/8 X 25 FT

Add to cart
C-340A

FOOT VALVE PVDF FKM/PTFE CERAMIC BALL NO SPRING

Add to cart
C-346

CERAMIC WEIGHT W6116 L3 STEATITE

Add to cart
C-395N-6A

INJ S/A HD 37T VIT 6 PSI PP

Add to cart

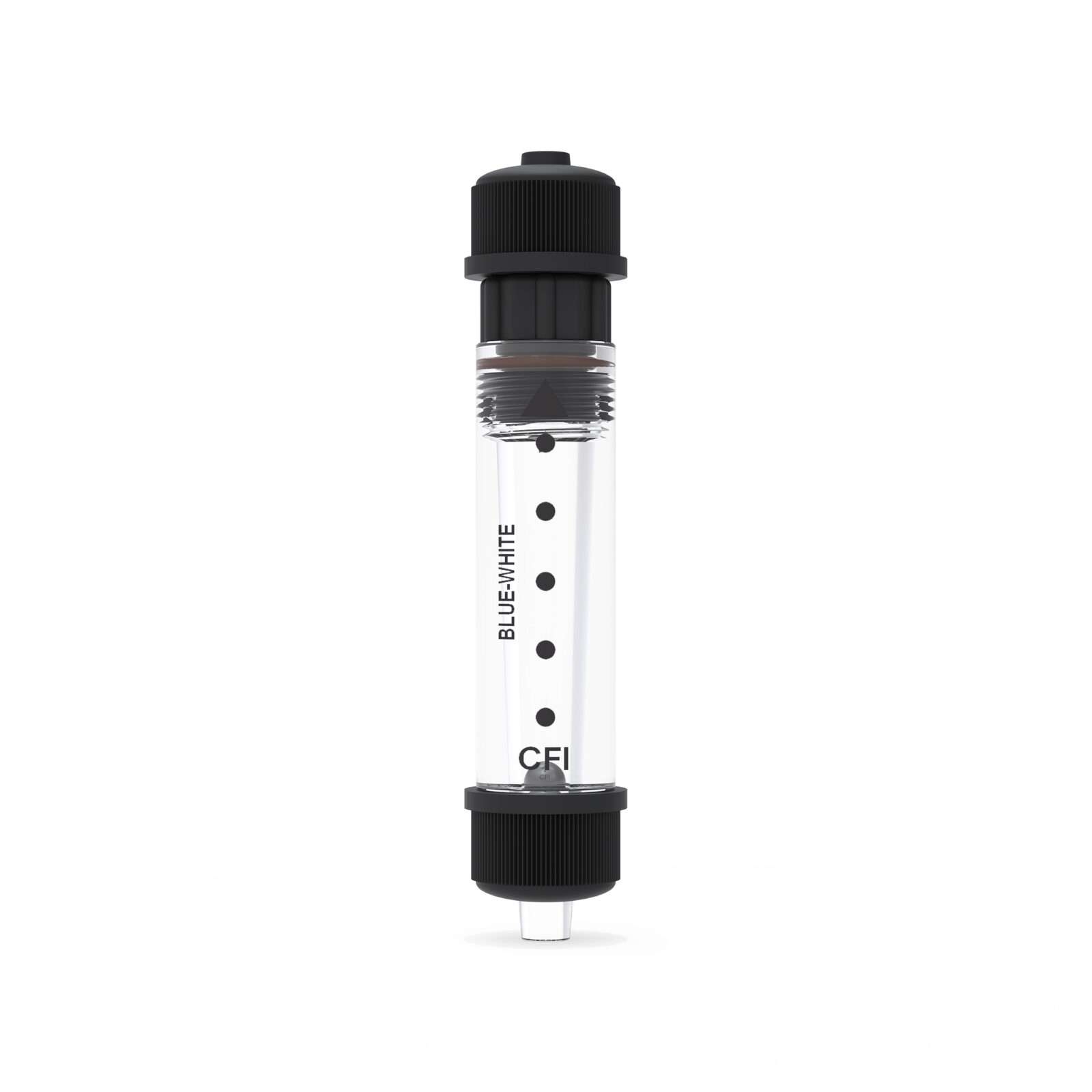

FI-100-6V

FLOW INDICATOR .37T VIT/GLASS

Add to cart
FI-100S-6V

FLOW INDICATOR .37T VIT/SS

Add to cart

Replacement Parts

ImageCatalog NumberDescriptionPriceBuy

Downloads

Title
C-600P C-600HV Instruction Manual – 80000-017

1.29 MB January 12, 2024
C-600P Exploded View

663.22 KB February 8, 2022
C-600P Replacement Parts List

952 KB February 10, 2022
C-600P Technical Data Sheet – 85000-055

187.87 KB March 18, 2024
Industrial Catalog 2024 – 80000-707

17.00 MB December 29, 2023
Industrial Products Brochure

2.84 MB February 20, 2024
