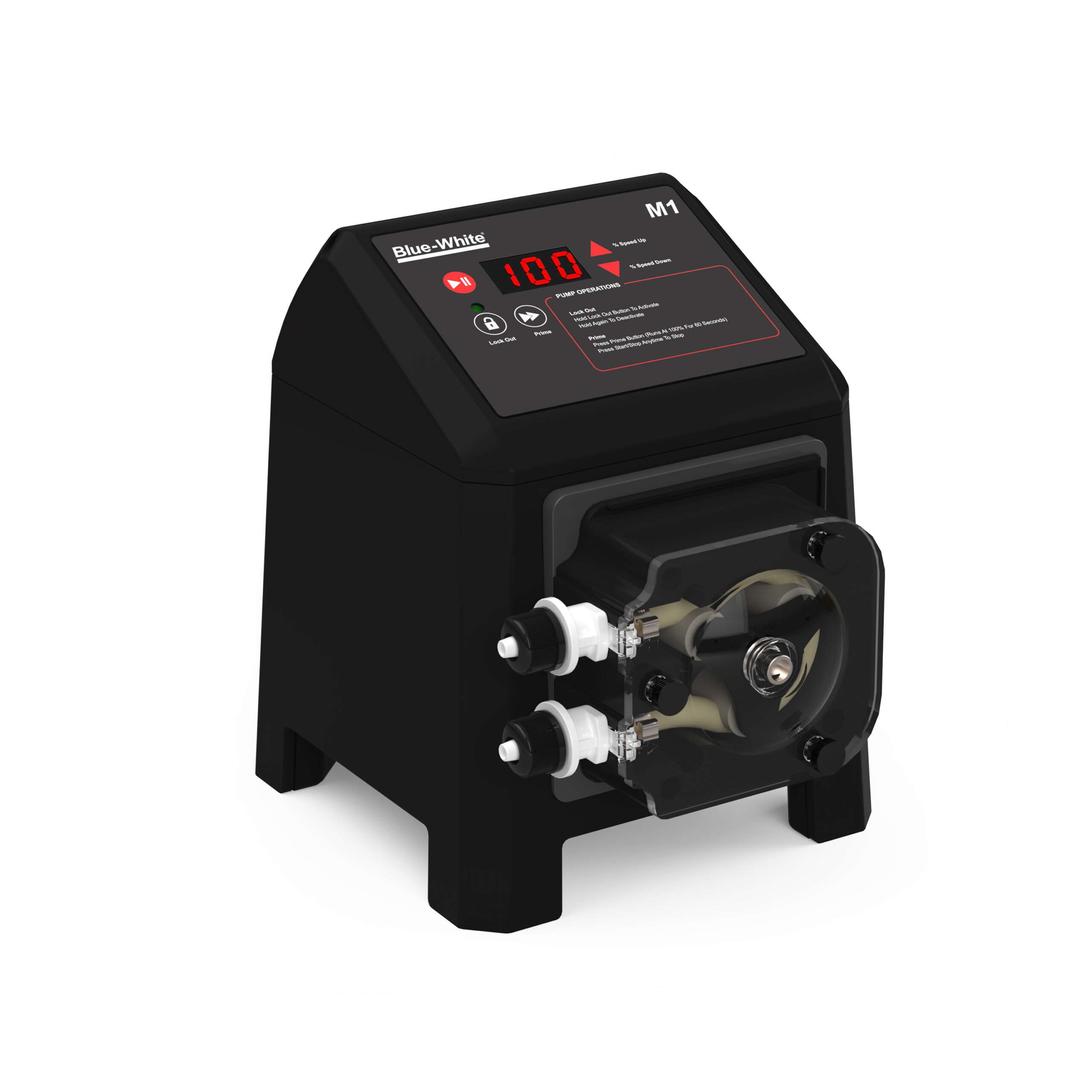

CHEM-FEED® Multi-Diaphragm Metering Pump

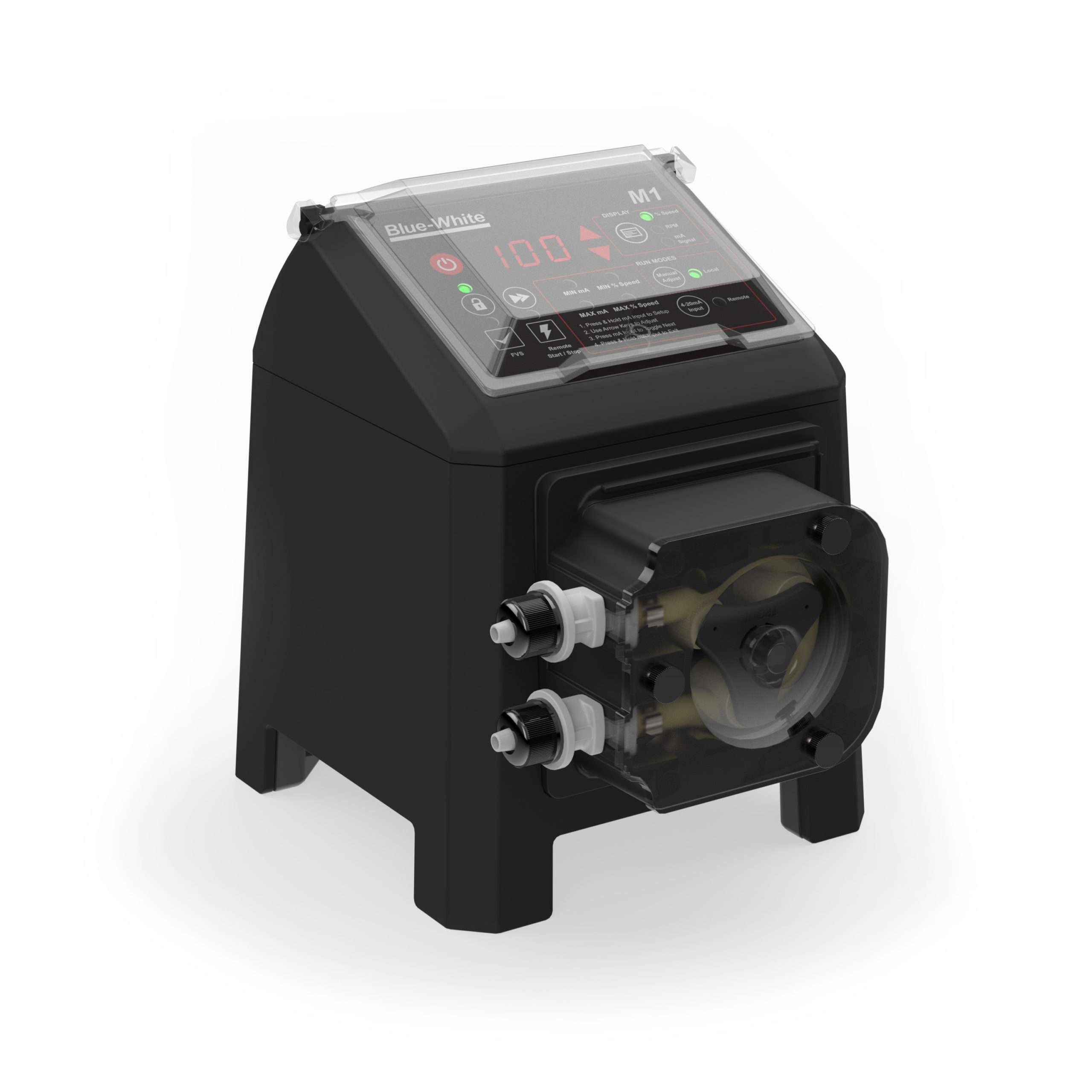

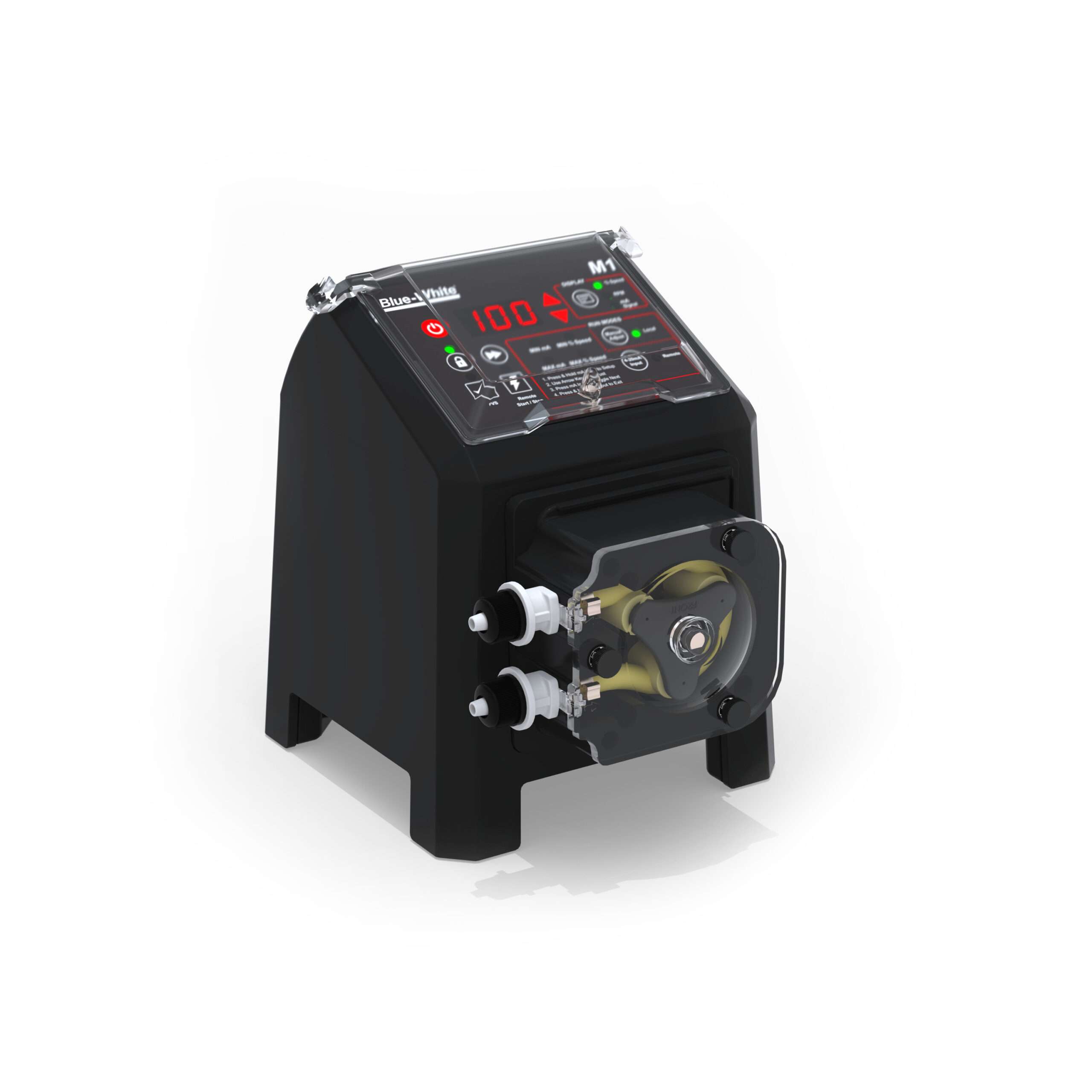

The FLEXFLO® M1 Peristaltic Metering Pump offers reliable chemical feed with simple-to-use controls and precise adjustability. Ideally suited for low to medium flow applications, this compact, rugged self-priming pump delivers smooth chemical feed and does not require check valves or seals that can clog, leak, or corrode.
Remote control signal options include Remote Start/Stop, Flow Verification, and 4-20mA.
The “M1C” Control model features 4–20 mA input and output, remote start/stop, alarm relay output, and flow verification sensor compatibility (MS6 or MICRO-FLO), while the “M1B” Base model is designed for manual, stand-alone operation with no I/O.
Technical Overview:
GPH
.0001 - 5.60
LPH
.0004 - 21.2
mL/min
.0067 - 353
Pressure
100 PSI (6.9 Bar)
Enclosure Rating
NEMA 4X
Standards
NSF/ANSI 61, CE, cETLus
Control Methods
Manual, Remote Analog
Power Supply
100 to 240VAC-50/60Hz
Literature
M1 Literature
Instruction Manuals
M1 Instruction Manual – 80000-753Technical Data Sheets
M1 Technical Data Sheet – 85000-207Engineering Specifications
M1 Engineering SpecificationsBrochures
M1 Brochure – 80000-715Catalog
Municipal CatalogOverview
Key Features
Benefits of a Peristaltic Pump
- Peristaltic pump design does not have valves that can clog requiring maintenance.
- Self-priming – even against maximum line pressure. By-pass valves are not required.
- Cannot vapor lock or lose prime.
Capabilities
- Output rates to: .0001 – 5.6 GPH (.0004 – 21.2 LPH) and pressures to 100 PSI (6.89 Bar).

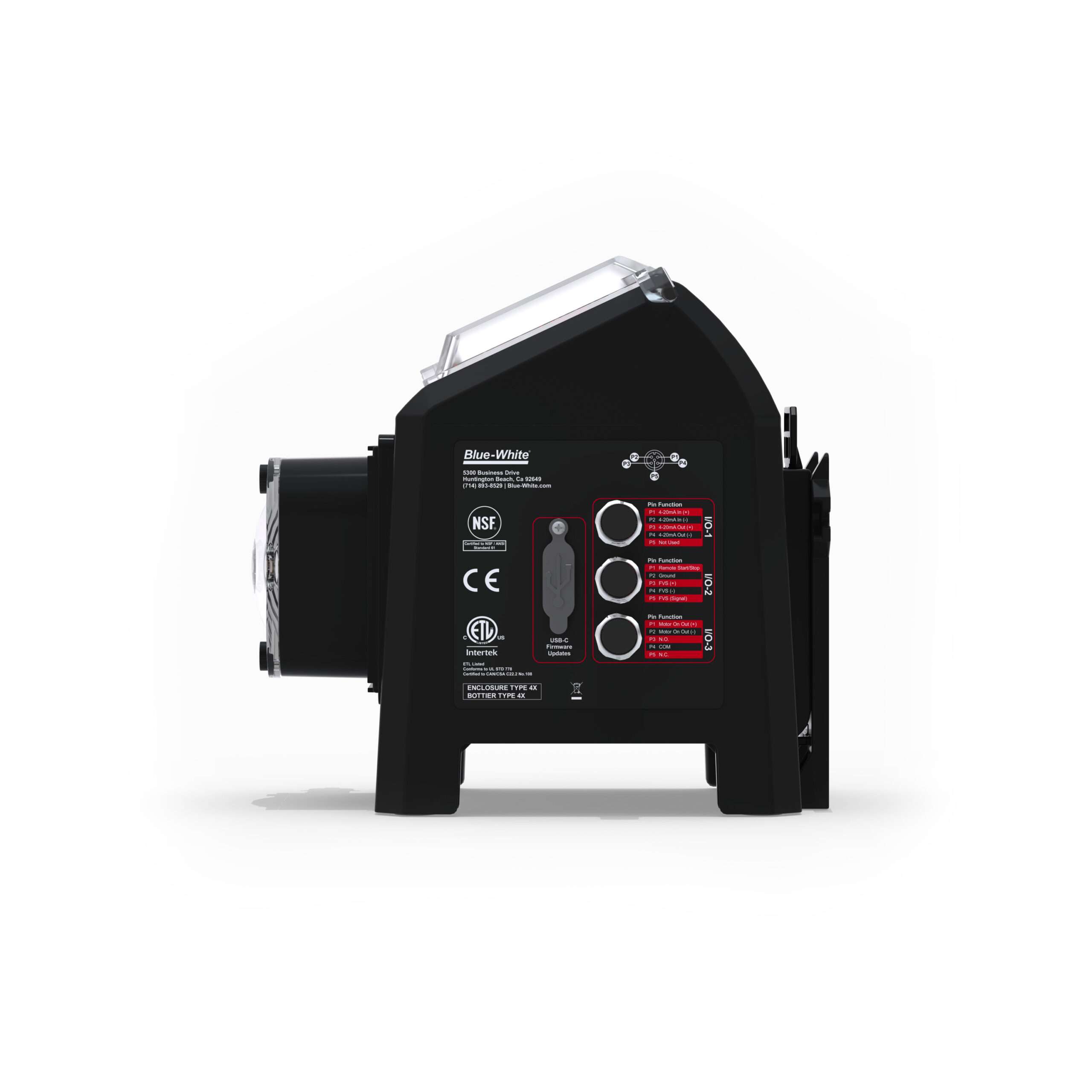

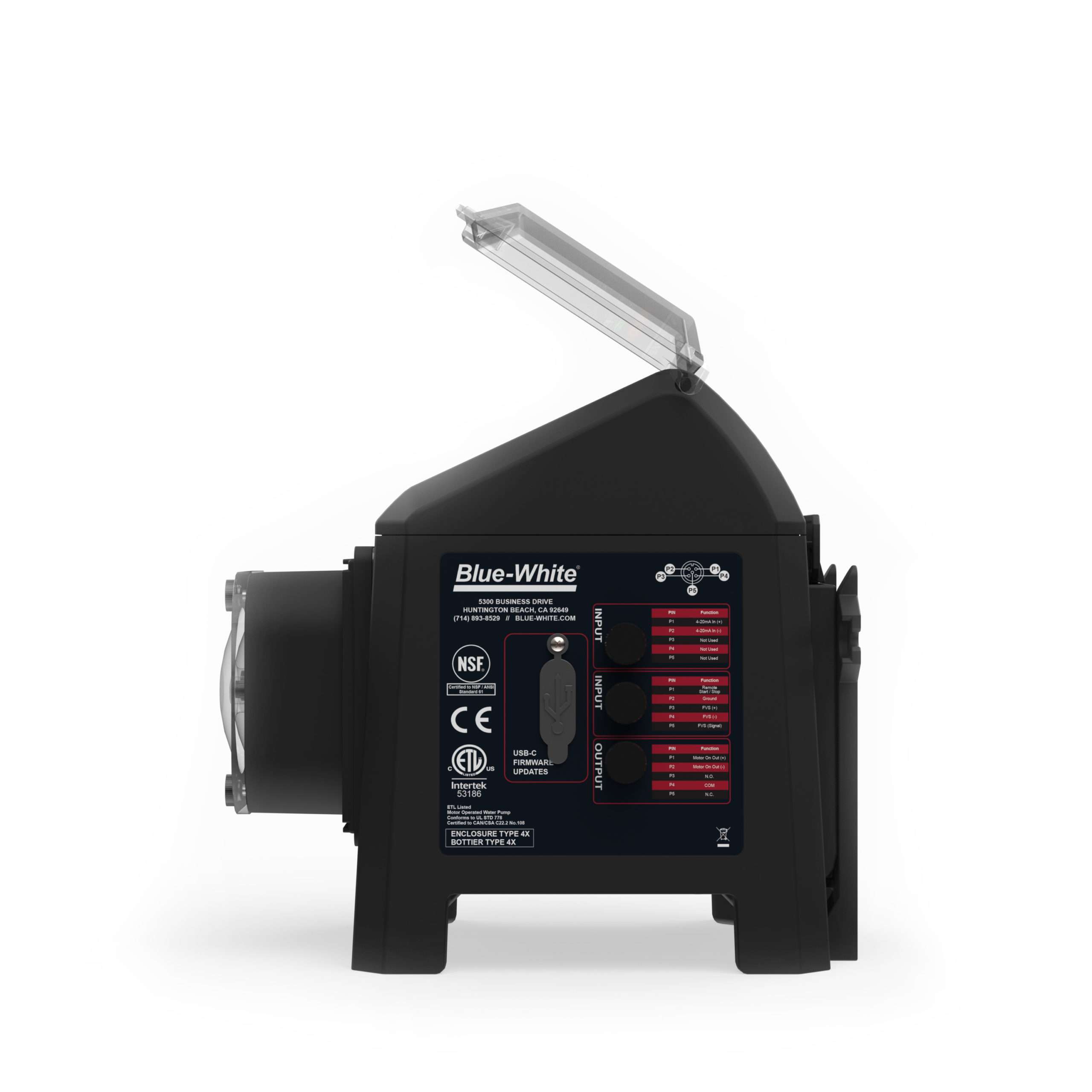

Communication & Interface (Included with “C” Control)
- Input: 4–20 mA external control
- Input: Remote Start/Stop via non-powered dry contact closure
- Input: Flow verification input compatible with MS6 and MICRO-FLO sensors
- Output: Alarm relay output, 250V / 3A
- Output: Motor On/Off solid-state relay output
- SCADA-compatible 4–20 mA input and output (Included with M1C only)
Superior Engineered Design
- 5 Year Warranty

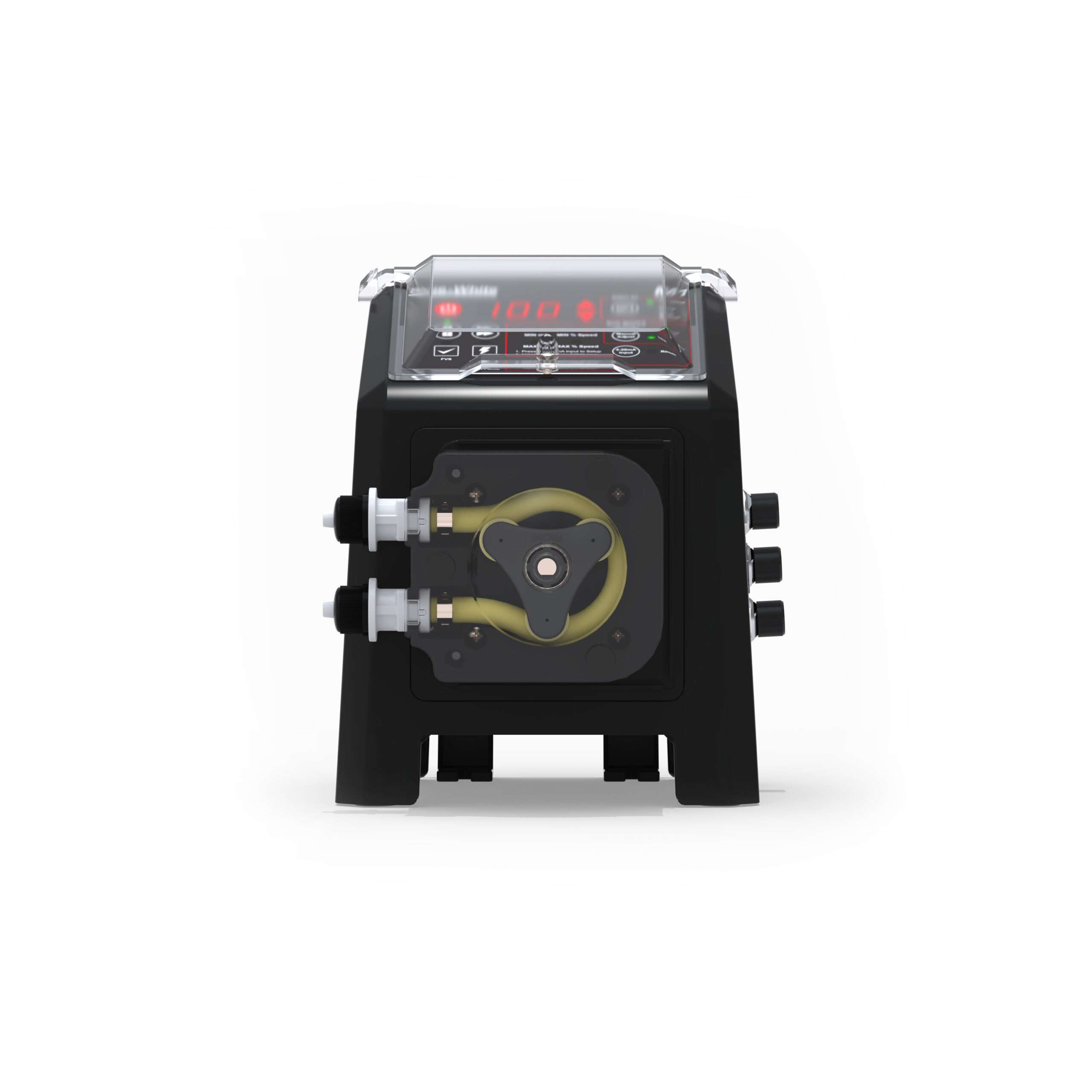

- CNC precision-machined squeeze rollers for optimum squeeze, unparalleled accuracy, and tube life.
- Heavy-duty rotor – single piece plastic rotor means no flexing and increased accuracy with no metal springs or hinges to corrode.
- Energy-efficient brushless DC motor.
- Specially engineered tubing for long life.

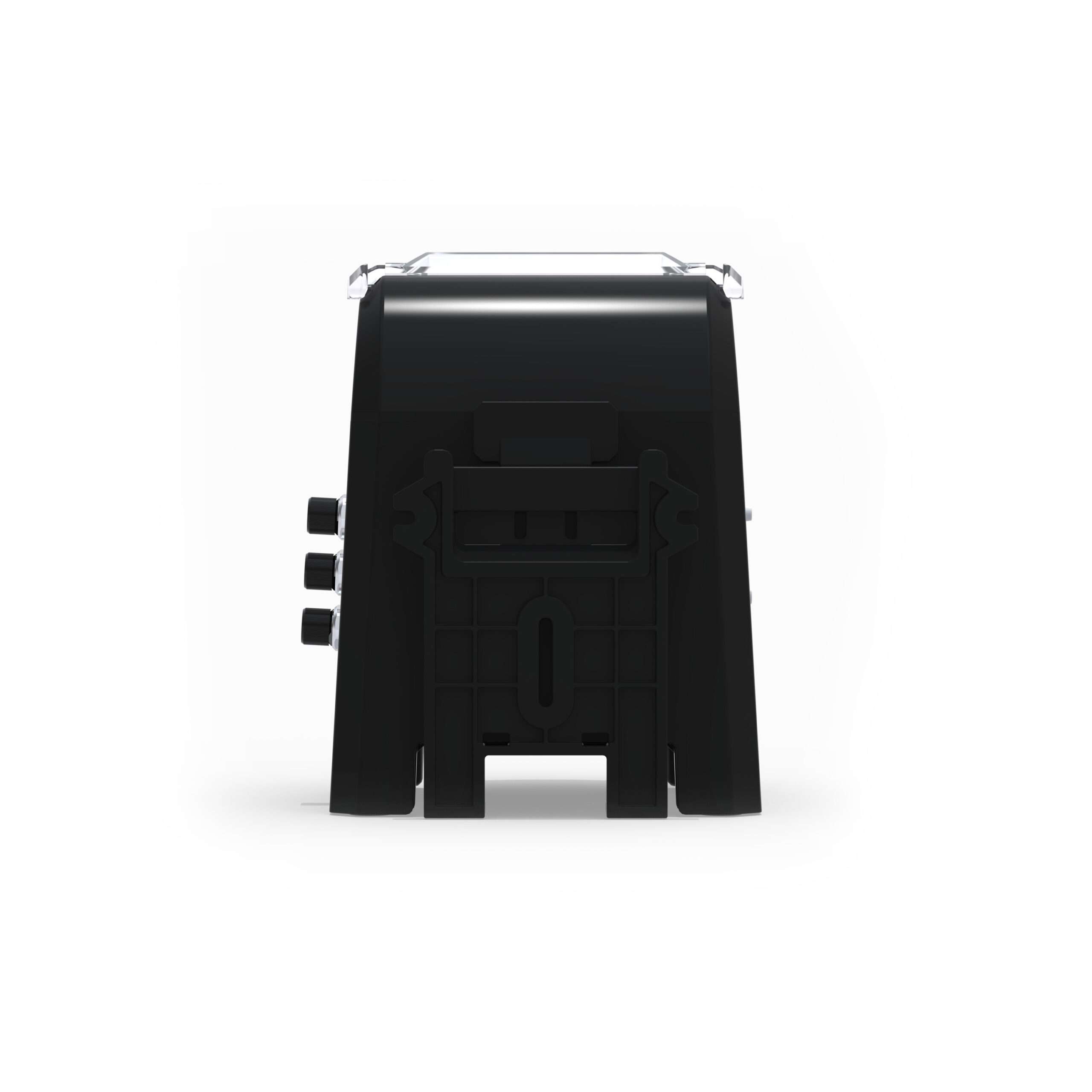

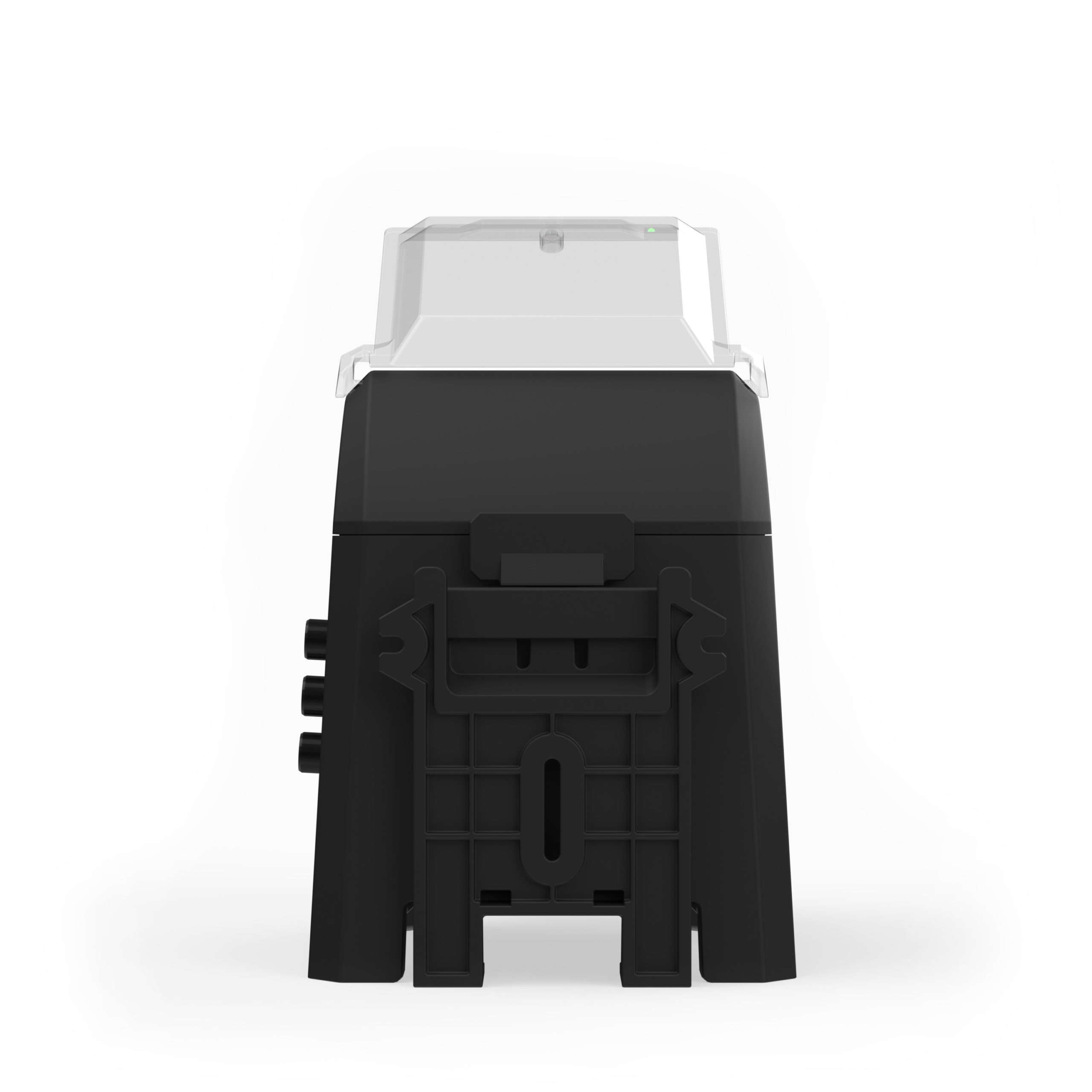

- Snap-in-place wall and floor mounting bracket – Patent pending
Performance Data
Output Table
| Tube Model | Feed Rate | MaxSpeed | MaxPressure | MaxTemperature | Required Roller Assembly | ||
|---|---|---|---|---|---|---|---|
| GPH | LPH | ML/Min | RPM | PSI (bar) | °F (°C) | Code | |
| A1-1* | .0001 – 1.09 | .0004 – 4.13 | .0069 – 69 | 65 | 65 (4.50) | 130 (54) | 71000-350 |
| A1-3* | .0005 – 5.60 | .0021 – 21.2 | .0353 – 353 | 65 | 50 (3.45) | 130 (54) | 71000-350 |
| A1-4* | .0001 – 0.44 | .0002 – 1.68 | .0028 – 28 | 65 | 100 (6.89) | 185 (85) | 71000-159 |
| A1-6* | .0001 – 1.35 | .0005 – 5.14 | .0085 – 85 | 65 | 100 (6.89) | 185 (85) | 71000-159 |
| A1-7* | .0004 – 4.17 | .0015 – 15.8 | .0263 – 263 | 65 | 50 (3.45) | 185 (85) | 71000-350 |
| A1-8* | .0003 – 3.09 | .0011 – 11.7 | .0195 – 195 | 65 | 50 (3.45) | 130 (54) | 71000-255 |
Technical
Specifications
Maximum Working Pressure
(Excluding pump tubes) 100 PSI (6.89 bar)
Maximum Fluid Temperature
185 °F
85 °C
Maximum Viscosity
5,000 centipoise
Maximum Suction Lift
30 ft. of water at sea level
14.7 atm psi
Ambient Operating Temperature
14 °F to 115 °F
-10 °C to 46 °C
Ambient Storage Temperature
-40 °F to 158 °F
-40 °C to 70 °C
Operating Voltage
- 115V60Hz 1 PH (0.6A max.)
- 220V50Hz 1 PH (0.3A max.)
- 230V60Hz 1 PH (0.3A max.)
- 230V50Hz 1 PH (0.3A max.)
- 240V50Hz 1 PH (0.3A max.)
Power Cord Options
- 115V60Hz = NEMA 5/15 (USA)
- 230V60Hz = NEMA 6/15 (USA)
- 220V50Hz = CEE 7/VII (EU)
- 240V50Hz = AS 3112 (Australia/New Zealand)
- 230V50Hz = BS 1363/A (UK)
Motor
Brushless DC, 50W.
Duty Cycle
Continuous
Motor Speed Adjustment Range
10,000:1 (0.01% – 100%) Max rpm = 65rpm
Maximum Overall Dimensions
7.25” W x 9” H x 10” D
18.5 W x 22.9 H x 25.2 D cm
Product Weight
6 lb.
2.7 Kg
Approximate Shipping Weight
13 lb.
5.9 Kg
Approximate Shipping Dimensions
10.5” W x 13.75” H x 11” D
26.7 W x 35 H x 28 D cm
Enclosure
NEMA 4X, Valox® (PBT) Thermoplastic & PA12
RoHS Compliant
Yes
Standards
NSF/ANSI 61, cETLus, CE
Order Information
Configure Pump
Watch
Product Videos
The Enhanced FLEXFLO® M1 – Peristaltic Metering Pump
Watch Now
TESTIMONIAL – FLEXFLO® Peristaltic Metering Pumps
Watch Now
How to perform a firmware update for the 1 series pumps
Watch Now
How To Replace The A1 M1 Tubing
Watch Now
4-20mA Output Signal For The M1 & MD1 Chemical Metering Pumps
Watch Now
How To Calibrate the 1 Series Peristaltic Metering Pump
Watch Now
In the Field
Related Case Studies
Purchase
Accessories
Purchase
Replacement Parts
