M2

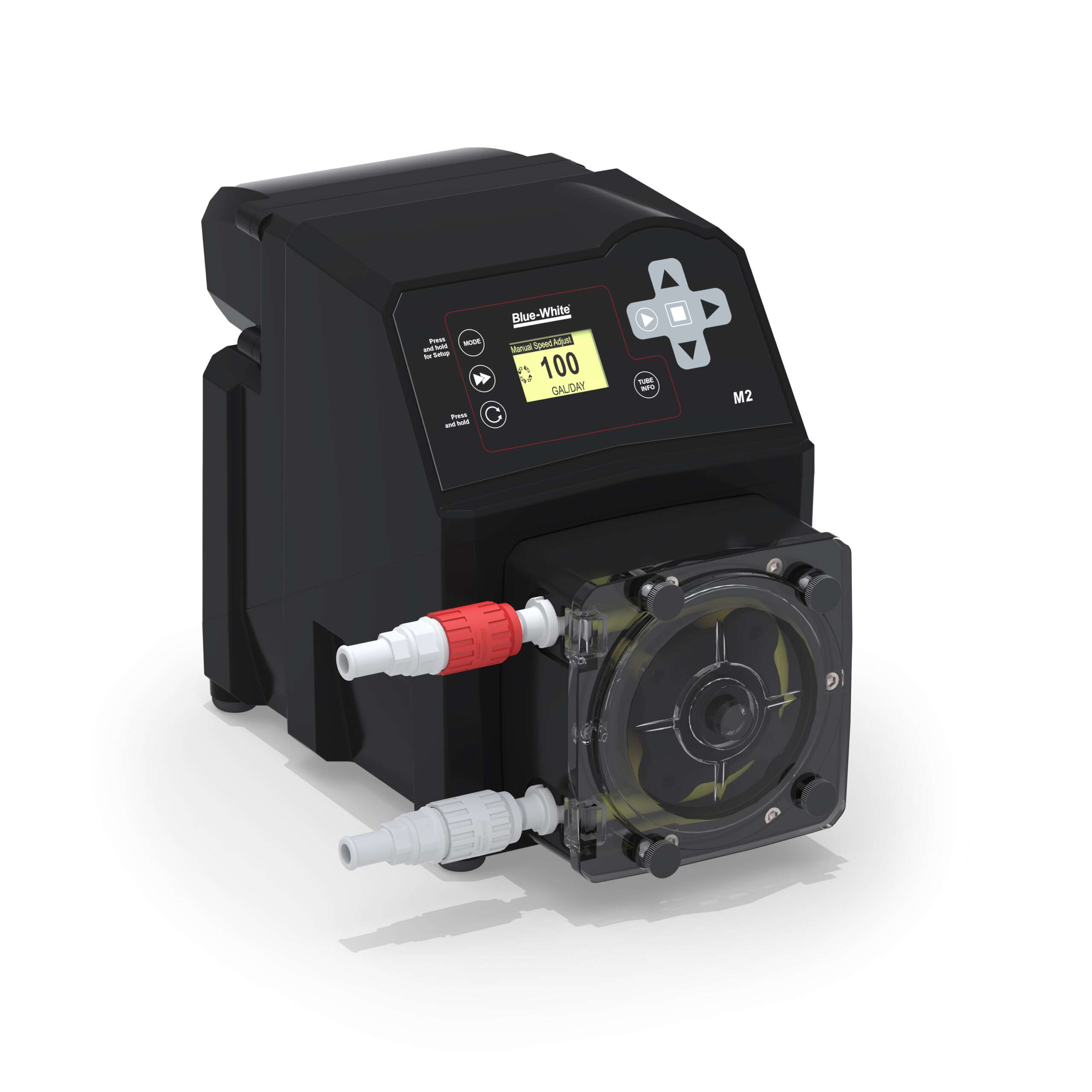

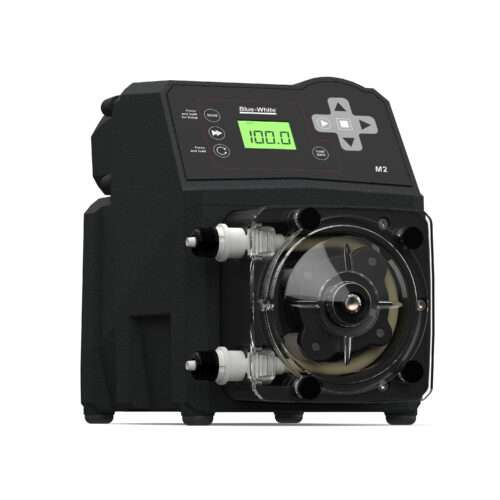

FLEXFLO® Peristaltic Metering Pump
Simplify chemical feed with the FLEXFLO® M2 Peristaltic Metering Pump. This rugged and compact pump features a gentle, low-shear pumping action, making it an ideal choice for dosing shear-sensitive or gaseous fluids. The M2 does not require check valves, seals, or other ancillary equipment to function, reducing maintenance intervals and process downtime.
Remote control signal options include Remote Start/Stop, Flow Verification, Pulse, and 4-20mA.
Technical Overview:
GPH
.0085 - 21.23
LPH
.032 - 80.4
mL/min
.5333 - 1340
Pressure
125 PSI (8.6 Bar)
Enclosure Rating
NEMA 4X (IP66)
Standards
NSF/ANSI 61, CE, cETLus, RoHS
Control Methods
Manual, Remote Analog/Digital
Power Supply
100 to 240VAC-50/60Hz
Literature
M2 Literature
Instruction Manuals
M2 Instruction Manual – 80000-492Technical Data Sheets
M2 Technical Data Sheet – 85000-115Guides
Tubing Selection GuideCatalog
Municipal Catalog 2023Engineering Specifications
M2 Engineering Specifications
3D Visualizer
Features and Benefits
Features
Benefits:
- Self-priming – even against maximum line pressure. By-pass valves are not required. Cannot vapor lock or lose prime. 30ft of suction lift. Gentle low shear pumping action.
- Tube Failure Detection (TFD) senses tube rupture by detecting chemical in the pump head. No false triggering – Patented
- Optional dual channel tube design for optimum performance and pressure capability
Communication and Interface:
- Operator friendly digital controls with backlit LCD displays motor speed, input signal values, service, and alarm status
- Inputs include: 4-20mA and pulse inputs for remote external speed control and either powered 6-24 VDC or non-powered dry contact closure for remote start/stop
- Outputs: one 250V/3A relay to monitor TFD (Tube Failure System) and FVS (Flow Verification System), one 4-20mA analog signal scalable to the motor speed and one relay output for run status
- Compatible with Blue-White’s output Flow Verification Sensor (FVS) system. Sensor is sold separately
Superior Design:
- 5 Year Warranty
- 200:1 turndown ratio
- NEMA 4X (IP66) wash-down, chemically resistant powder coated enclosure
- Heavy duty rotor means no flexing and increased accuracy with no metal springs or hinges to corrode.
Safety Features:
- Tube Failure Detection (TFD) senses tube rupture, preventing hazardous chemical spills
Optional Components Available:
- Mounting Extended Brackets (72000-380) – 1 Pair, SS, 4 SS Screws
What’s Included:
- M2 Peristaltic Metering Pump
- Two tube assemblies
- Tube installation tool
- Mounting hardware kit
Output
| Tube Material / Size | Feed Rate | MaxSpeed | MaxPressure | MaxTemperature | Required Roller Assembly | ||
| GPH | LPH | ML/Min | RPM | PSI (bar) | °F (°C) | Code | |
| Flex-A-Prene® | |||||||
| ND | .01 – 1.7 | .03 – 6.5 | .54 – 108 | 130 | 125 (8.6) | 185 (85) | A2-SND-R |
| NEE | .022 – 4.44 | .084 – 16.8 | 1.4 – 280 | 130 | 110 (7.6) | 185 (85) | A2-SNGG-R |
| NGG | .086 – 17.2 | .325 – 65.1 | 5.4 – 1085 | 130 | 110 (7.6) | 185 (85) | A2-SNGG-R |
| Flex-A-Chem® | |||||||
| TH | .07 – 14.3 | .27 – 54 | 4.5 – 900 | 130 | 50 (3.4) | 130 (54) | A2-STH-R |
| Flex-A-Thane® | |||||||
| GE | .02 – 4.0 | .08 – 15.2 | 1 – 253 | 130 | 65 (4.5) | 130 (54) | A2-SGE-R |
| GG | .05 – 9.3 | .17 – 35.2 | 3 – 587 | 130 | 65 (4.5) | 130 (54) | A2-SGE-R |
| G2G | .07 – 14.98 | .03 – 56.7 | 4.7 – 945 | 130 | 65 (4.5) | 130 (54) | A2-SGE-R |
| GH | .11 – 21.23 | .04 – 80.4 | 6.7 – 1340 | 130 | 65 (4.5) | 130 (54) | A2-SGE-R |
Specifications
Maximum Working Pressure (Excluding Pump Tubes)
- 125 psig (8.6 bar)
- NOTE: See individual pump tube assembly maximum pressure ratings.
Maximum Fluid Temperature (Excluding Pump Tubes)
- 3/8” OD x 1/4” ID tubing connections: 130 °F (54 °C)
- M/NPT connections: 185 °F (85 °C)
- NOTE: See individual pump tube assembly max. temperature ratings.
Maximum Viscosity
- 12,000 Centipoise
Maximum Suction Lift
- 30 ft. Water at sea level (14.7 atm psi)
Maximum Operating Temperature
- 14 °F to 115 °F (-10 °C to 46 °C)
Maximum Storage Temperature
- -40 °F to 158 °F (-40 °C to 70 °C)
Operating Voltage
- 115VAC/60Hz, 1ph (1.5 Amp Maximum)
- 230VAC/60Hz, 1ph (0.7 Amp Maximum)
- 220VAC/50Hz, 1ph (1.0 Amp Maximum)
- 240VAC/50Hz, 1ph (1.0 Amp Maximum)
Power Cord Options
- 115V60Hz = NEMA 5/15 (USA)
- 230V60Hz = NEMA 6/15 (USA)
- 220V50Hz = CEE 7/VII (EU)
- 240V50Hz = AS 3112 (Australia/New Zealand)
- 230V50Hz = BS 1363/A (UK)
Motor
- Brushed DC, 1/8 H.P.
Duty Cycle
- Continuous
Motor Speed Adjustment Range
- 200:1 (0.5% – 100%) Max rpm = 130 rpm
Motor Speed Adjustment Resolution
- 0.1% increments
Display
- Backlit LCD, UV resistant
Keypad
- Eight button positive action tactile switch keypad
Maximum Overall Dimensions
- 7-1/2” W x 10-1/4” H x 14” D (19 W x 26 H x 35.6 D cm)
Product Weight
- 28.4 lb. (12.9 Kg)
Approximate Shipping Weight
- 35 lb. (15.9 Kg)
Enclosure
- NEMA 4X (IP66), Polyester powder coated aluminum
RoHS Compliant
- Yes
Standards
- NSF/ANSI 61, cETLus, CE
Videos
Watch Now

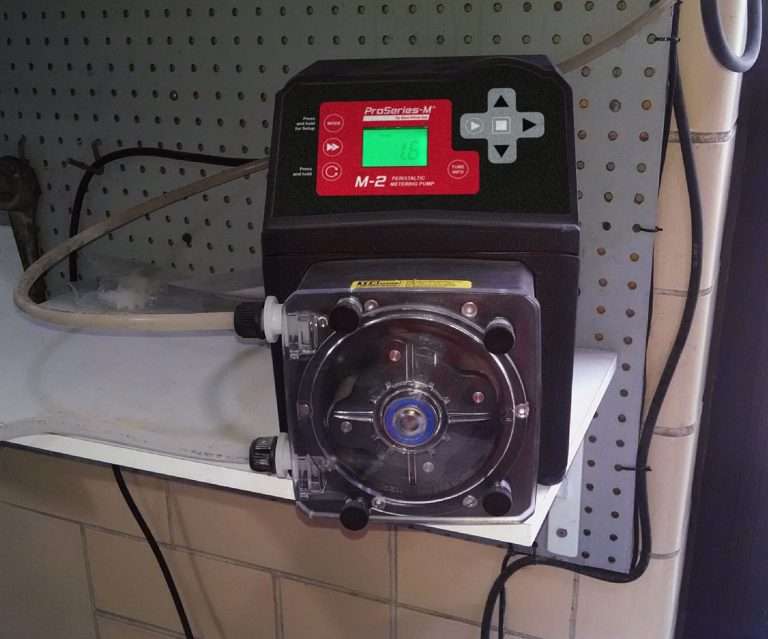

Related Case Studies
