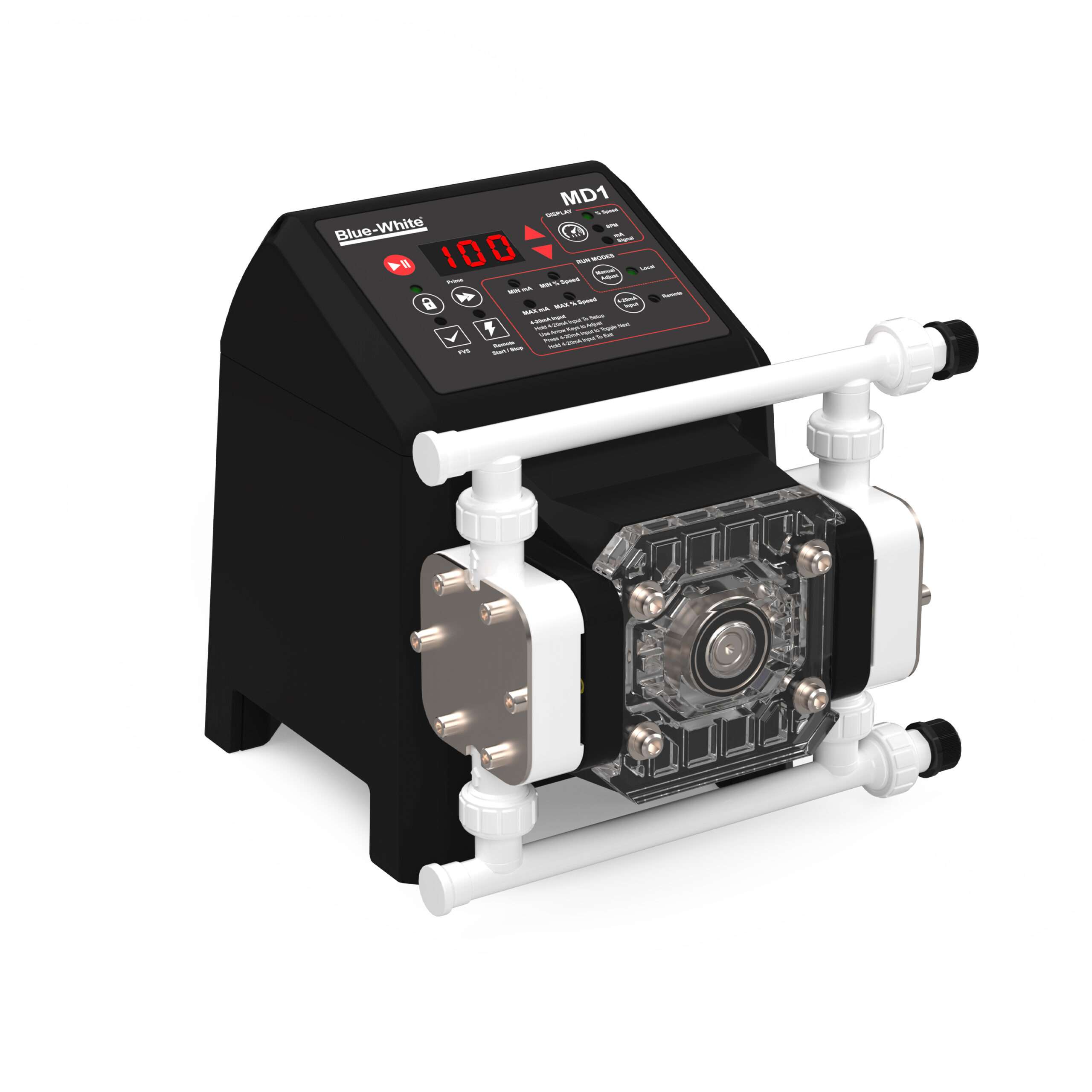

MD1
CHEM-FEED® Multi-Diaphragm Metering Pump
The MD1 delivers smooth, continuous chemical feed even when injecting fluids that off-gas. Its cutting-edge Hyperdrive® Technology alternates pumping action between two diaphragms, minimizing pulsation and risk of vapor lock.
Exclusive DiaFlex® and Flex-A-Prene® diaphragms offer superior chemical resistance and maximum durability.
The “MD1C” Control model features manual speed control, 4–20 mA input and 4–20 mA output, Remote Start/Stop via Normally Open or Normally Closed dry contact, and FVS (Flow Verification System) input, while the “MD1B” Base model provides manual speed control only with no input/output options.
Technical Overview:
GPH
.0007 - 7
LPH
.0026 - 26.46
mL/min
.0441 - 441
Pressure
180 PSI (12 Bar)
Enclosure Rating
NEMA 4X (IP66)
Standards
NSF/ANSI 61, CE, cETLus, RoHS
Control Methods
Manual, Remote Analog
Power Supply
100 to 240VAC-50/60Hz
Literature
MD1 Literature
Instruction Manuals
MD1 Instruction Manual – 80000-747
Technical Data Sheets
MD1 Technical Data Sheet – 85000-155
Brochures
Catalog
3D Visualizer
Features and Benefits
Features
Benefits:
- Exclusive Hyperdrive technology allows for smooth chemical feed – Patent Pending
- Dual Diaphragm with full stroke technology will not lose prime, ideal for pumping chemicals that off-gas (Peracetic Acid, Sodium Hypochlorite)
- Can pump chemicals continuously, like a peristaltic pump, without the need for tube assemblies
- Unibody and Unidirectional Cartridge Check Valves reduce parts, simplify maintenance, and ensure proper directional installation.
Communication & Interface (Included with C Control):
- Input: 4-20mA external control
- Input: Remote Start/Stop: Non-powered dry contact closure for remote start/stop
- Input: Compatible with Flow Verification Sensors MS6 and MICRO-FLO
- Output: Alarm relay 250V / 3A
- Output: Motor On / Off single solid-state
- SCADA Inputs/Outputs include: 4-20mA. (Included with MD1C only)
Superior Design:
- 5 Year Warranty
- Energy-efficient BLDC motor will not overheat
- Snap-in-place wall and floor mounting bracket – Patent pending
- DiaFlex® diaphragm is designed to last the life of the pump, eliminating the need for expensive rebuild kits – Patented, and covered under the pump’s 5-year warranty.

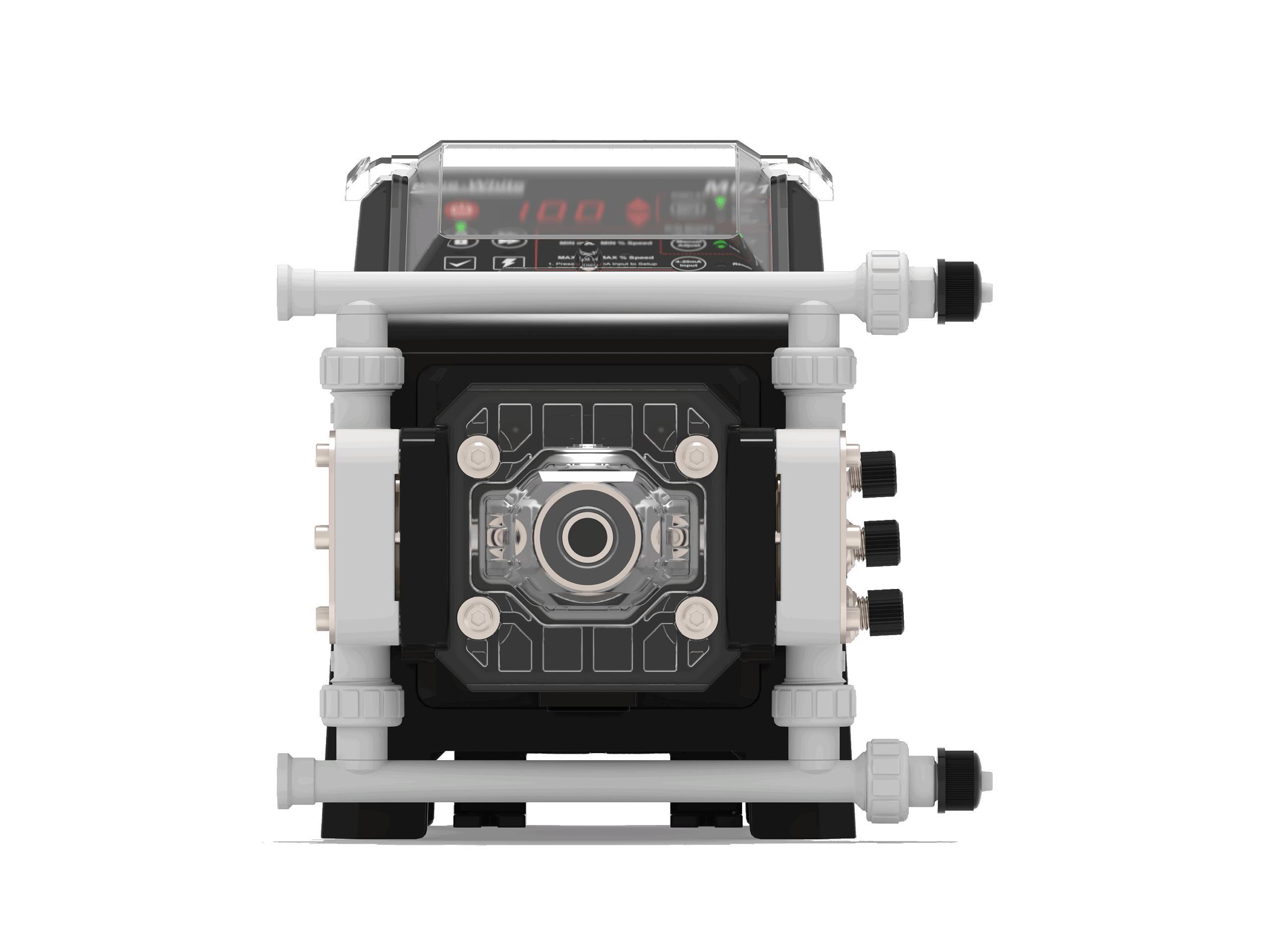

- Manifold design allows for multiple configuration possibilities – suction and discharge ports can be positioned on the left and right side of the pump
Safety Features:
- Diaphragm Failure Detection (DFD) Senses diaphragm rupture by detecting chemical in the pump head. No false triggering – Patented
- Lockout feature prevents any unwanted tampering – Patent pending
- Display shield to protect controls from harsh environments
Optional Components Available:
- Elbow Adapter Kits
- Elbow Connectors – ½” Male NPT, ½” Hose Barb, ⅜” Tube Compression
- O-rings – AFLAS, EP
What’s Included:
- MD1 Multi-Diaphragm Metering Pump
- Discharge injection fitting with check valve
- Suction foot valve / strainer
- Suction ceramic weight
- Mounting hardware kit
- Display shield
Output
| Motor Speed % | 30 PSI (2.1 bar) | 60 PSI (4.2 bar) | 90 PSI (6.2 bar) | 120 PSI (8.3 bar) | 150 PSI (10.3 bar) | 180 PSI (12 bar) |
|---|---|---|---|---|---|---|
| GPH (mL/min) | ||||||
| 0% | 0.00 (0) | 0.00 (0) | 0.00 (0) | 0.00 (0) | 0.00 (0) | 0.00 (0) |
| 10% | 0.82 (52) | 0.82 (52) | 0.79 (50) | 0.74 (47) | 0.73 (46) | 0.70 (44) |
| 20% | 1.63 (103) | 1.59 (100) | 1.54 (97) | 1.49 (94) | 1.46 (92) | 1.39 (88) |
| 30% | 2.46 (155) | 2.38 (150) | 2.31 (146) | 2.23 (141) | 2.19 (138) | 2.09 (132) |
| 40% | 3.22 (203) | 3.14 (198) | 3.09 (195) | 3.00 (189) | 2.92 (184) | 2.79 (176) |
| 50% | 4.03 (254) | 3.92 (247) | 3.82 (241) | 3.72 (235) | 3.60 (227) | 3.50 (221) |
| 60% | 4.79 (302) | 4.69 (296) | 4.61 (291) | 4.50 (284) | 4.36 (275) | 4.20 (265) |
| 70% | 5.63 (355) | 5.45 (344) | 5.34 (337) | 5.17 (326) | 5.01 (316) | 4.90 (309) |
| 80% | 6.32 (399) | 6.13 (387) | 5.93 (374) | 5.79 (365) | 5.66 (357) | 5.60 (353) |
| 90% | 7.12 (449) | 6.91 (436) | 6.77 (427) | 6.58 (415) | 6.45 (407) | 6.29 (397) |
| 100% | 7.73 (488) | 7.56 (477) | 7.40 (467) | 7.24 (457) | 7.13 (450) | 7.00 (441) |
Specifications
Maximum Working Pressure
- 180 psig (12 bar)
Maximum Fluid Temperature
- 185 °F (85 °C)
Maximum Ambient Temperature
- 14 °F to 115 °F / -10 °C to 46 °C
Maximum Viscosity
- 1,000 Centipoise
Maximum Suction Lift
- 20 ft. at 0 PSI
Operating Voltage Range
- 115V60Hz 1 PH (0.6A max., 80W max.)
- 220V50Hz 1 PH (0.3A max., 80W max.)
- 230V60Hz 1 PH (0.3A max., 80W max.)
- 230V50Hz 1 PH (0.3A max., 80W max.)
- 240V50Hz 1 PH (0.3A max., 80W max.)
Power Cord Options
- 115V50/60Hz (0.6A max.) = NEMA 5/15 (USA)
- 230V50/60Hz (0.3A max.) = NEMA 6/15 (USA)
- 220V50/60Hz (0.3A max.) = CEE 7/VII (EU)
- 240V50/60Hz (0.3A max.) = AS 3112 (Australia/New Zealand)
- 230V50/60Hz (0.3A max.) = BS 1363/A (UK)

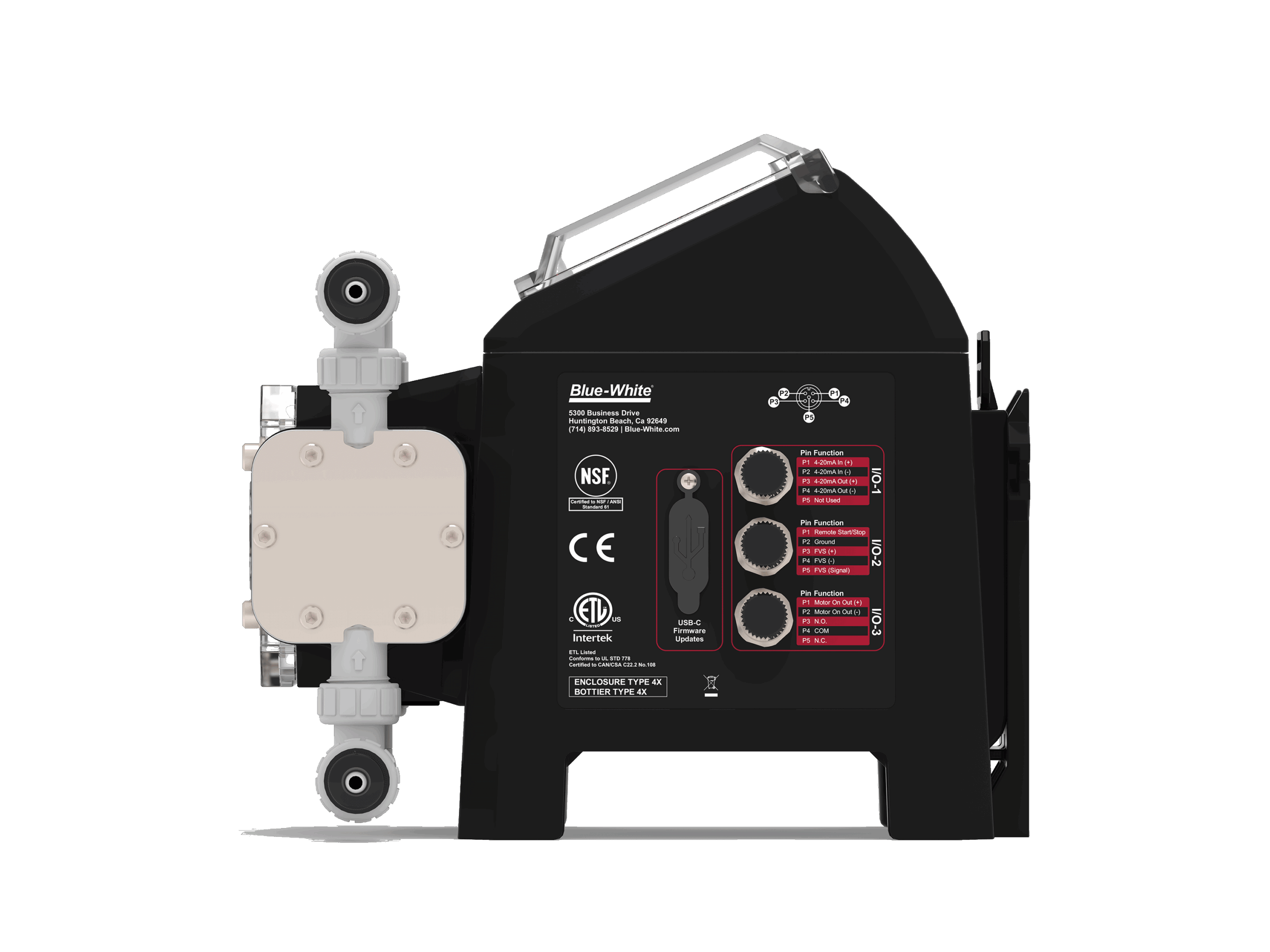

Signal Connectors
- M12 – 5 pin (IP67 rated) (“C” model only)
Motor
- Brushless DC, 42W
Duty Cycle
- Continuous
Turndown Ratio
- 10,000:1 (0.01% – 100%) Max. rpm = 100 (200 strokes/min)
Maximum Overall Dimensions
- 9.49”W x 9.46”H x 10.53”D (24.10 W x 24.02 H x 26.75 D cm)
Product Weight
- 10.7 lb. (4.85 Kg)
Approximate Shipping Dimensions
- 10.5” W x 11.75” H x 13” D (26.7 W x 29.8 H x 33 D cm)
Approximate Shipping Weight
- 20.0 lb. (9.1 Kg)
Enclosure
- NEMA 4X, Valox® (PBT) & PA12
RoHS Compliant
- Yes
Standards
- NSF 61, cETLus, CE
