Industrial Diaphragm Pumps

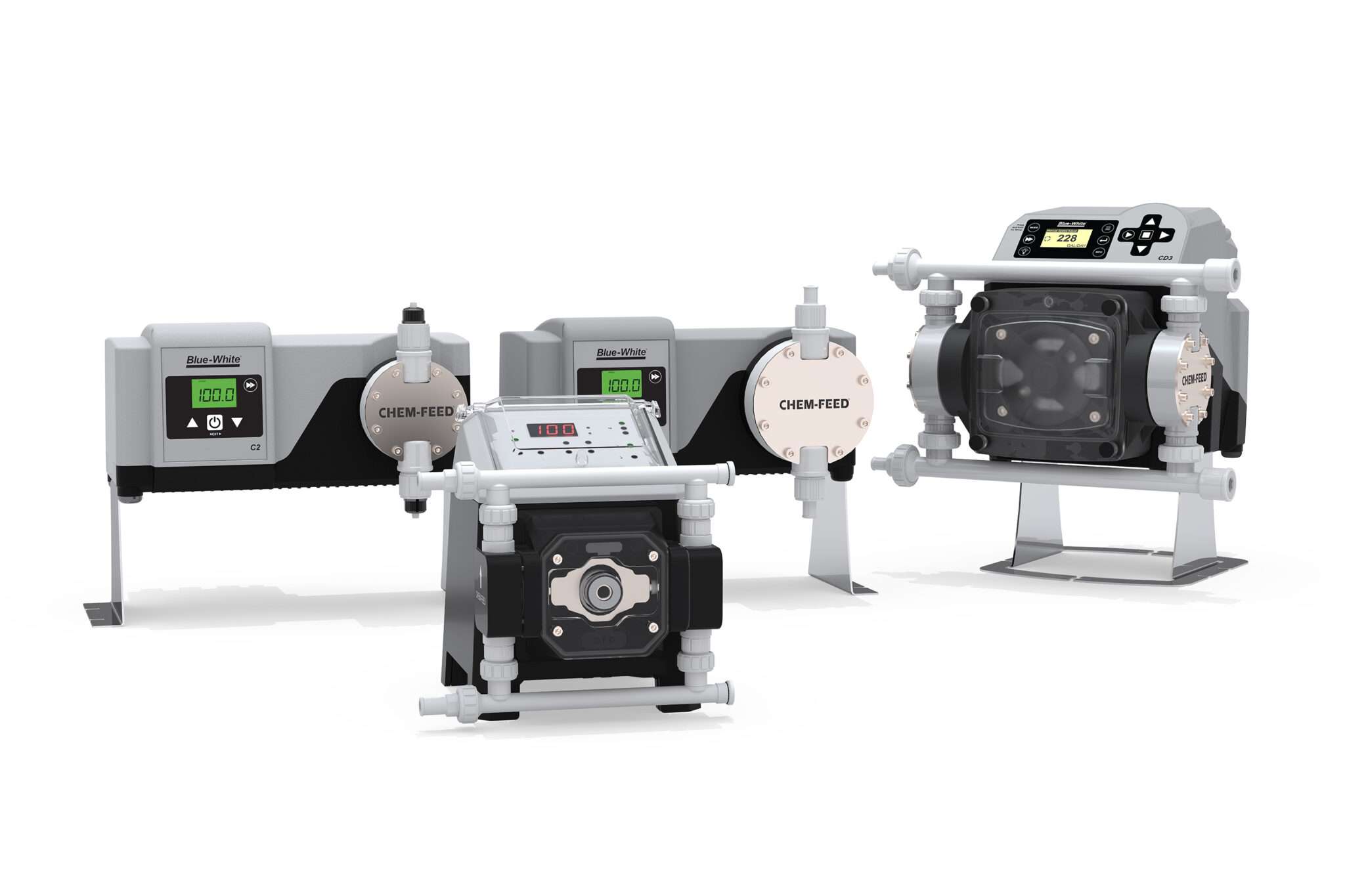

Blue-White® Industrial Diaphragm Pumps
Blue-White’s Single and Multi-Diaphragm Metering Pumps are designed to meet the demands of many industrial installs. The smooth pumping action and dependable performance of CHEM-FEED® Metering Pumps ensure precise chemical dosing, and CHEM-FEED® pumps require minimal maintenance, less downtime, and lower costs. Their exclusive DiaFlex® Diaphragms are constructed of PVDF for exceptional chemical compatibility and are guaranteed for the life of the pump.
Explore Industrial Diaphragm Pumps
CD1
CHEM-FEED® Multi-Diaphragm Metering Pump
| GPH | LPH |
|---|---|
| .004 - 7.70 | .015 - 29.2 |
| PSI | Bar |
| 150 | 10.3 |

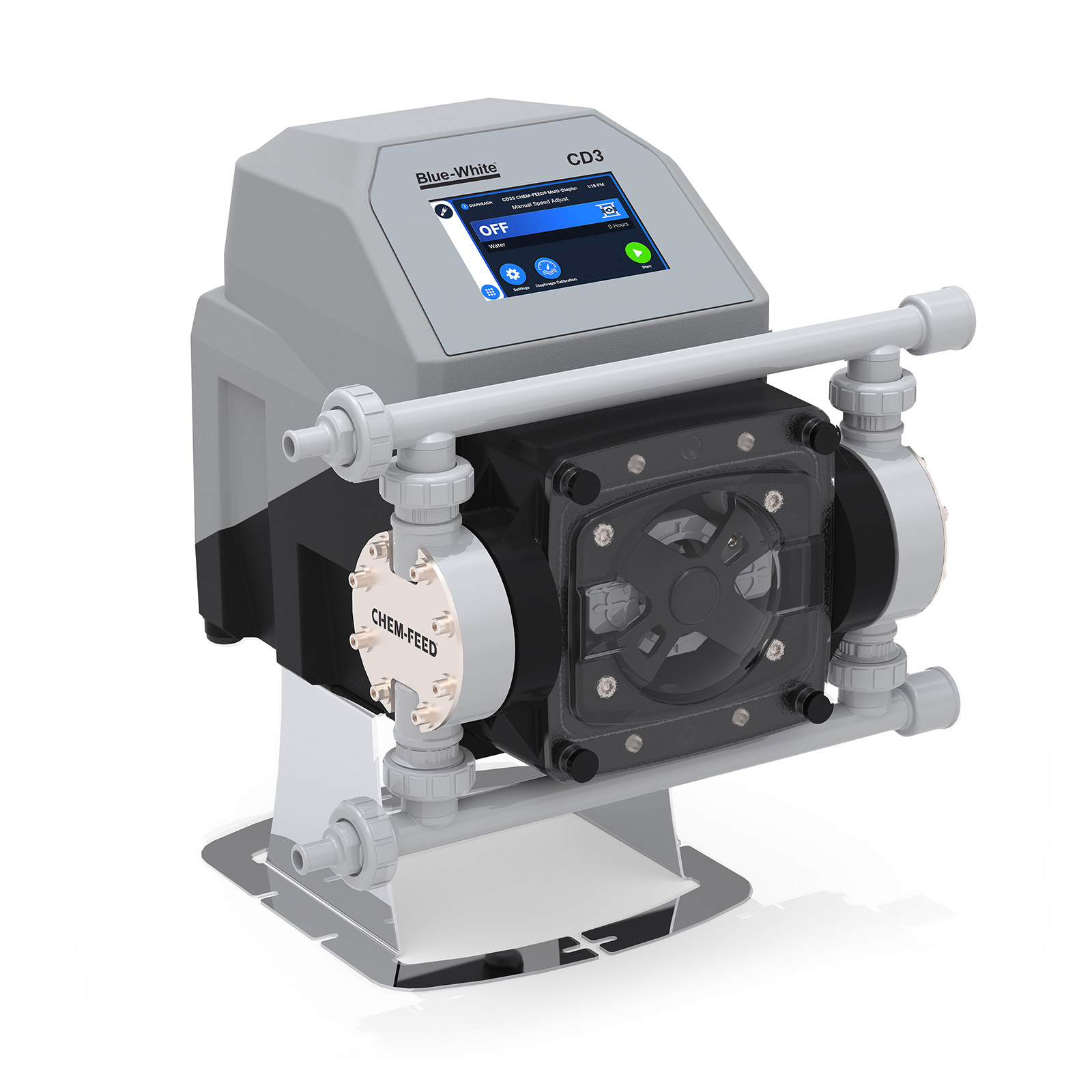

CD3
CHEM-FEED® Multi-Diaphragm Metering Pump
| GPH | LPH |
|---|---|
| .05 - 52.6 | .19 - 199 |
| PSI | Bar |
| 145 | 10 |

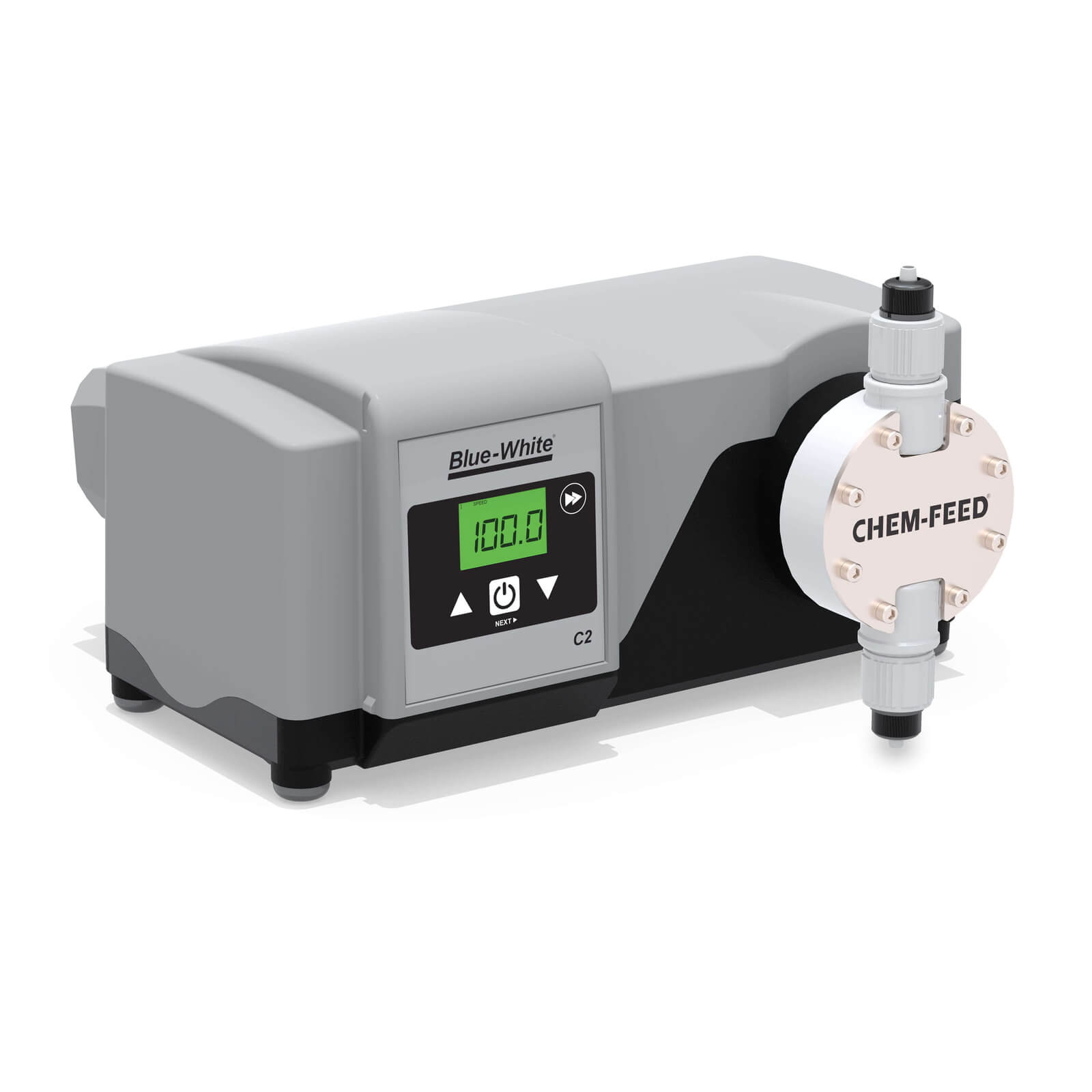

C2
CHEM-FEED® Diaphragm Metering Pump
| GPH | LPH |
|---|---|
| .02 - 16.5 | .09 - 62.5 |
| PSI | Bar |
| 175 | 12 |

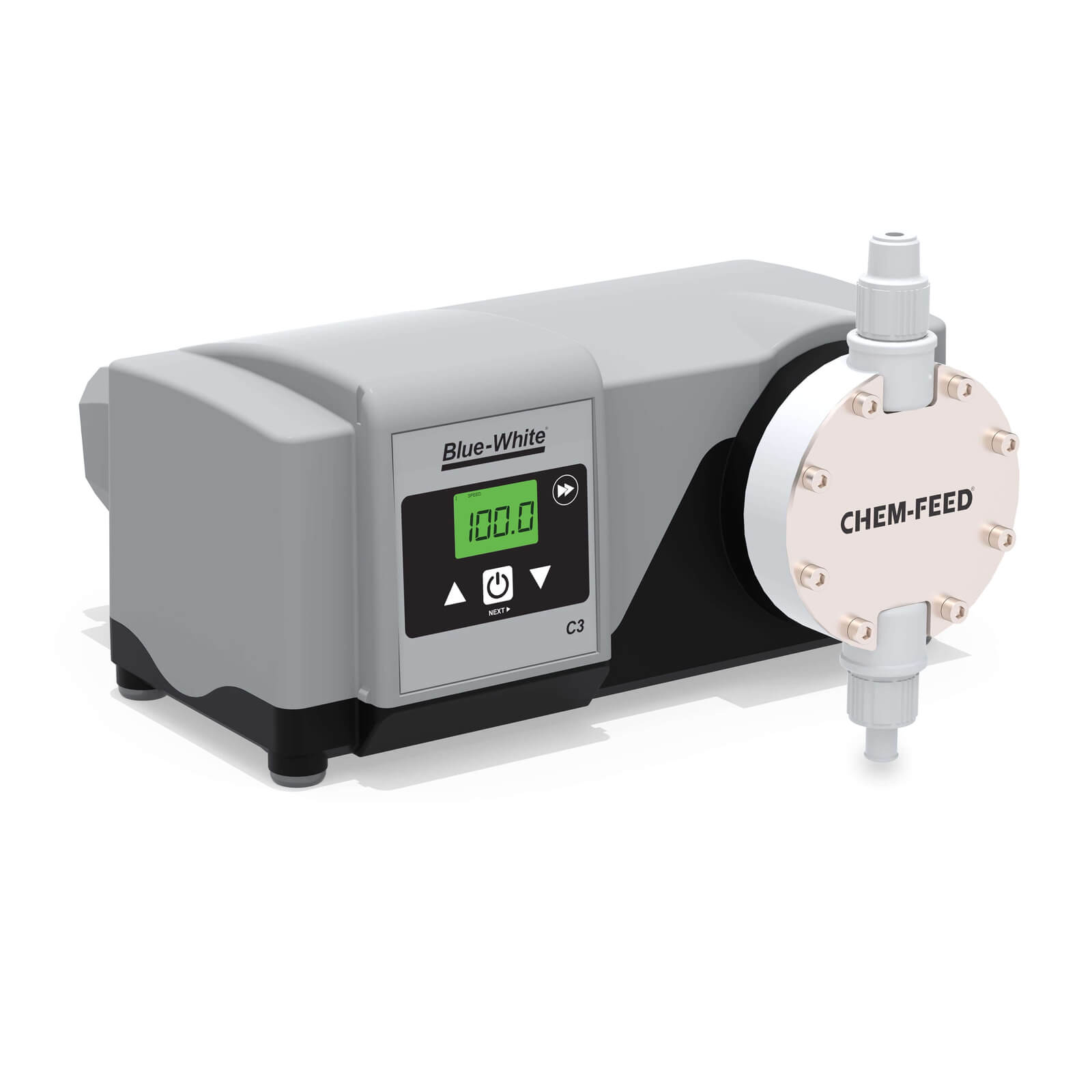

C3
CHEM-FEED® Diaphragm Metering Pump
| GPH | LPH |
|---|---|
| .3 - 40 | .1 - 154 |
| PSI | Bar |
| 150 | 10.3 |
C-600
CHEM-FEED® Diaphragm Metering Pump
| GPH | LPH |
|---|---|
| 1 - 21.5 | 4 - 81.4 |
| PSI | Bar |
| 125 | 8.6 |
C-600HV
CHEM-FEED® Diaphragm Metering Pump
| GPH | LPH |
|---|---|
| 1.74 - 47.1 | 6.6 - 178.3 |
| PSI | Bar |
| 20 | 1.4 |
C-1500N
CHEM-FEED® Diaphragm Metering Pump
| GPH | LPH |
|---|---|
| .2 - 9.5 | .5 - 36 |
| PSI | Bar |
| 125 | 8.6 |
Compare CHEM-FEED® Features
| CHEM-FEED® Features | C2 | C3 | CD1 | CD3 |
|---|---|---|---|---|
| CHEM-FEED® Product |  |
 |
 |
 |
| Flow Output Range | .02–16.5 GPH (.09–62.5 LPH) | .3–40 GPH (.1–154 LPH) | .004-7.70 GPH (.015-29.2 LPH) | .05–52.6 GPH (.2–199 LPH) |
| Turndown | 100:1 | 100:1 | 1,000:1 | 1,000:1 |
| Warranty | 2 YEAR | 2 YEAR | 2 YEAR | 2 YEAR |
| Variable Speed DC Motor | BRUSH | BRUSH | BRUSHLESS | BRUSHLESS |
| Dia-Flex® PVDF Single-layer Diaphragm | YES | YES | YES | YES |
| DFD (Diaphragm Failure Detection) | YES | YES | YES | YES |
| Protective LCD Snap-on Cover | YES | YES | YES | NO |
| Maintenance Mode | NO | NO | NO | YES |
| Input: Remote Start/Stop | YES | YES | YES | YES |
| Input: 4-20mA | YES | YES | YES | YES |
| Input: Frequency (Pulsed) | YES | YES | NO | YES |
| Output: 4-20mA | Optional | Optional | NO | YES |
| Proportional Dosing | NO | NO | NO | YES |
| Password Protect (PIN) | NO | NO | LOCKOUT BUTTON | YES |
| Industrial Ethernet (IP) | CONTROL BOX REQUIRED | CONTROL BOX REQUIRED | CONTROL BOX REQUIRED | CONTROL BOX REQUIRED |
| Profibus | CONTROL BOX REQUIRED | CONTROL BOX REQUIRED | CONTROL BOX REQUIRED | CONTROL BOX REQUIRED |
| Modbus-TCP | CONTROL BOX REQUIRED | CONTROL BOX REQUIRED | CONTROL BOX REQUIRED | CONTROL BOX REQUIRED |
How do Diaphragm Pumps Work?
Diaphragm pumps are a type of positive displacement pump that use a rubber or plastic diaphragm and corresponding valves on each side of the pump head to pump fluid. When the diaphragm flexes, the pressure inside the pump lowers, drawing fluid into the suction side of the pump head. When the diaphragm flexes back, the fluid is forced out of the discharge side of the pump head. Many diaphragm pumps include check valves to keep the liquid from flowing backward in the pump.
Advantages of a Diaphragm Metering Pump
Applications
- Wastewater Treatment
- Potable Water Treatment
- Agriculture and Irrigation
- Car Wash
- Cooling Tower Water Treatment
- Boiler Feedwater Treatment
- General Chemical Metering
Explore Case Studies
Case Study
June 15, 2021
Customer Testimonial
Blue-White is innovative. And the unique thing about Blue-White, if you send them an idea or you send them a request, it's amazing how fast their response is...
Play Video
Diaphragm Pumps FAQ
Diaphragm pumps are a type of positive displacement pump that combines the reciprocating action of a diaphragm and valves on either side of a pump head to transfer fluid.

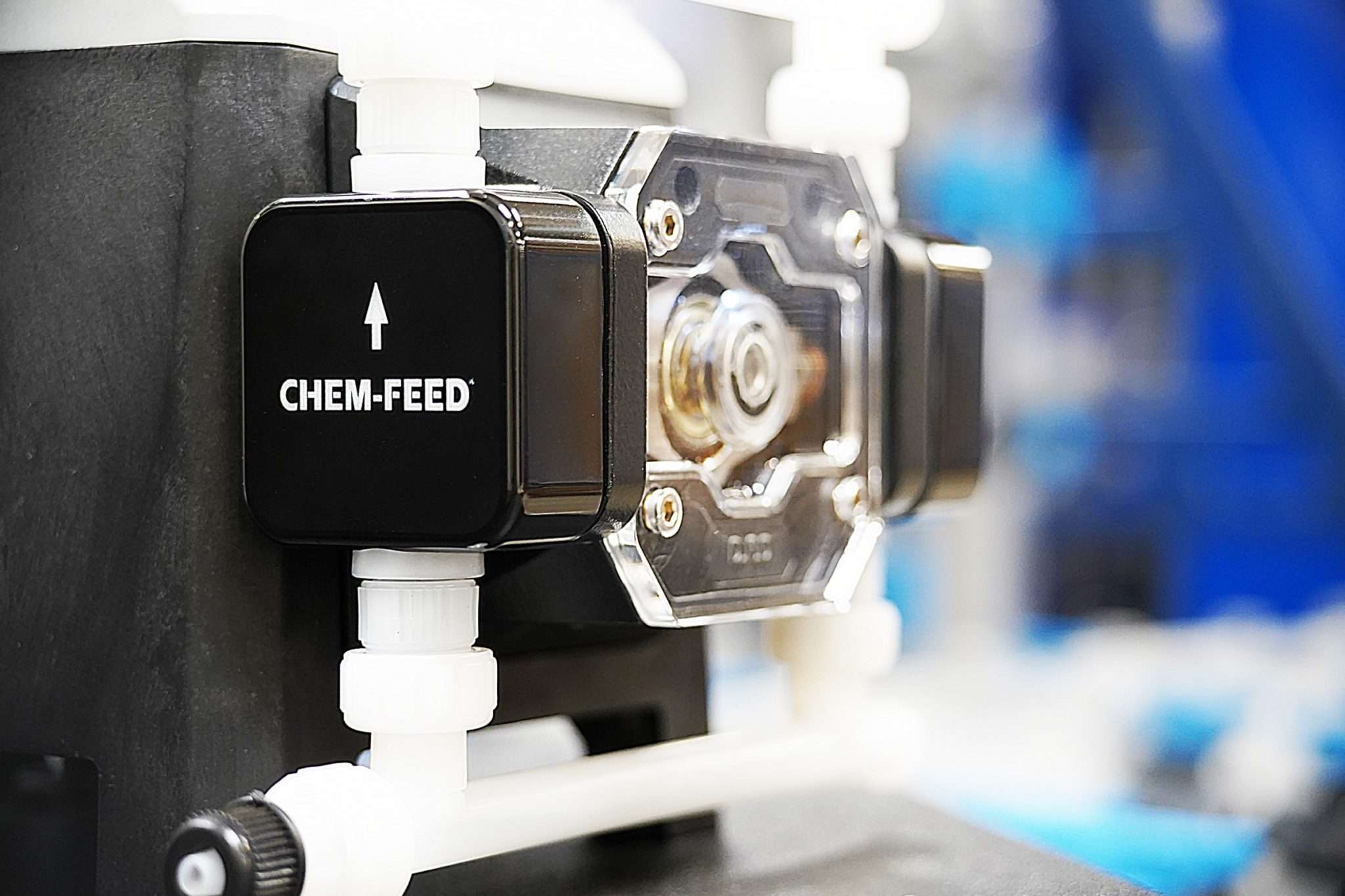

Pulsation dampeners are often used to reduce pressure fluctuation found in regular diaphragm pump operation. Another method is utilizing diaphragm pumps with two or more diaphragms that operate in succession. Blue-White’s multi-diaphragm pump, for example, features two diaphragm pump heads on either side of a drive enclosure. When one diaphragm is in the suction phase and the other in the discharge phase. The two diaphragms working together combined with a fluid manifold creates a smooth chemical feed profile that significantly reduces pulsation.
Diaphragm pumps are used in a variety of applications, including water treatment and conditioning, soap, wax and detergent injection, wastewater treatment, biocide feed, rural water systems, cooling tower & boiler water treatment, fertilizer and nutrient injection.
