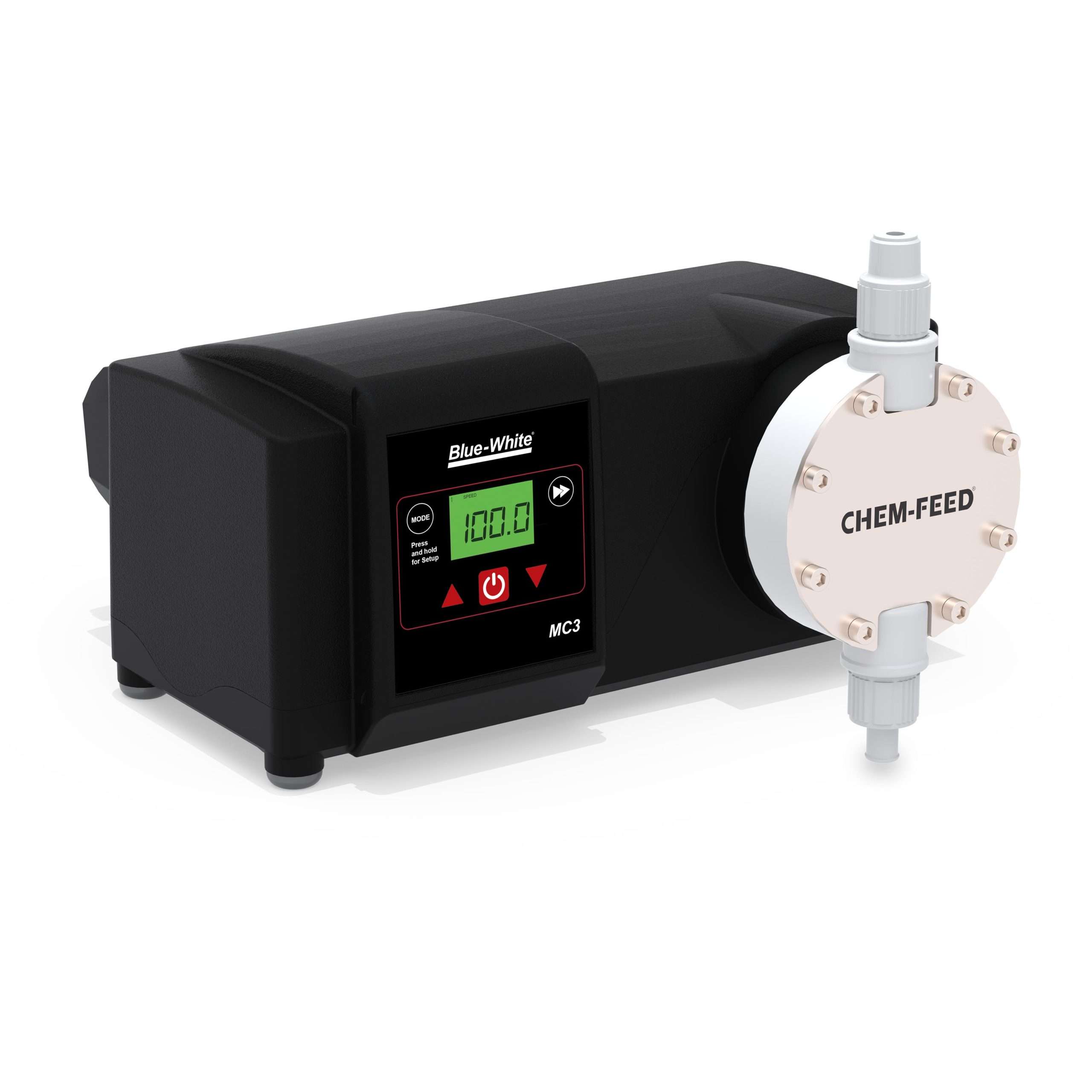

CHEM-FEED® Diaphragm Metering Pump

  • Capable of high pressures and high volume outputs.
  • Non-loss motion variable speed DC motor is powerful, quiet and energy efficient
Technical Overview:

GPH Enclosure Rating
LPH Standards
PSI Control Methods
Bar Power Supply
Literature

Features

Benefits:
  • DiaFlex® diaphragm design will last the life of the pump, eliminates the need for expensive rebuild kits – Patented
  • Diaphragm Failure Detection (DFD) built-in leak detection comes standard
  • Accurate chemical metering with pressures of up to 150 PSI
Communication and Interface:
  • Operator friendly digital controls with backlit LCD displays motor speed, input signal values, service, and alarm status
  • Signal inputs include: 4-20mA, pulse inputs and Remote start/stop
  • Signal outputs include: Relay (3 amp), open collector, 4-20mA
  • Compatible with Blue-White’s Flow Verification Sensor (FVS) system
  • Alarm relay monitors the DFD system and FVS system
  • SCADA ready 5-30V DC open collector output loop closes while motor is energized
Superior Design:
  • 3 Year Warranty
  • 200:1 turndown ratio
  • NEMA 4X (IP66) wash-down, chemically resistant powder coated enclosure
  • Large PVDF, Ceramic, double ball check valves without metal springs
Safety Features:
  • Diaphragm Failure Detection (DFD) senses diaphragm rupture by detecting chemical in the pump head. No false triggering – Patented
  • UV display cover protects controls from harsh environments
What’s Included:
  • MC3 Diaphragm Metering Pump
  • Discharge injection fitting with check valve
  • Option “1” – ½” ID x 3/4” OD tubing pump head
    • ½” hose barb injector
    • ½” hose barb foot valve / strainer
  • Option “2” – ¼” ID x 3/8” OD Tubing pump head
    • Suction foot valve / strainer
    • Suction ceramic weight
  • Option “3” – ½” M/NPT inlet and outlet, with ½” M/NPT injection fitting
    • ½” M/NPT injector
    • ½” M/NPT foot valve / strainer
  • Option “4” – ½” F/NPT inlet and outlet, with ½” M/NPT injection fitting
    • ½” M/NPT injector
    • ½” M/NPT foot valve / strainer
  • Mounting hardware kit
  • Junction box connectors

Specifications

Maximum working pressure:
  • 175 psig (12 bar) (model specific)
Maximum Fluid temperature:
  • 130 F (54 C)
Operating Temperature:
  • 14 F to 115 F (-10 C to 46 C)
Storage Temperature:
  • -40 F to 158 F (-40 C to 70 C)
Operating Voltage (Model Specific):
  • 115VAC/60Hz, 1ph (1.5 Amp Maximum)
  • 230VAC/60Hz, 1ph (0.7 Amp Maximum)
  • 220VAC/50Hz, 1ph (1.0 Amp Maximum)
  • 240VAC/50Hz, 1ph (1.0 Amp Maximum)
Power Cord Plug Type (Model Specific):
  • 115V60Hz = NEMA 5/15 (USA)
  • 230V60Hz = NEMA 6/15 (USA)
  • 220V50Hz = CEE 7/VII (EU)
  • 240V50Hz = AS 3112 (Australia/New Zealand)
Accuracy:
  • +/- 2% of full scale
  • Repeatability +/- 0.5
Duty cycle:
  • Continuous
Output adjustment range:
  • 0.5-100% in 0.1% increments
Maximum viscosity:
  • 1,000 Centipoise
Maximum suction lift:
  • 15 ft. Water, 0 psig (4.5 m, 0 bar)
Display:
  • Backlit LCD, UV resistant.
Keypad:
  • Positive action tactile switch keypad.
Enclosure:
  • NEMA 4X (IP66), Powder coated aluminum.
Approximate shipping wt:
  • MC2 models: 24 lb. (10.9 Kg)
  • MC3 models: 29 lb. (13.1 Kg)
