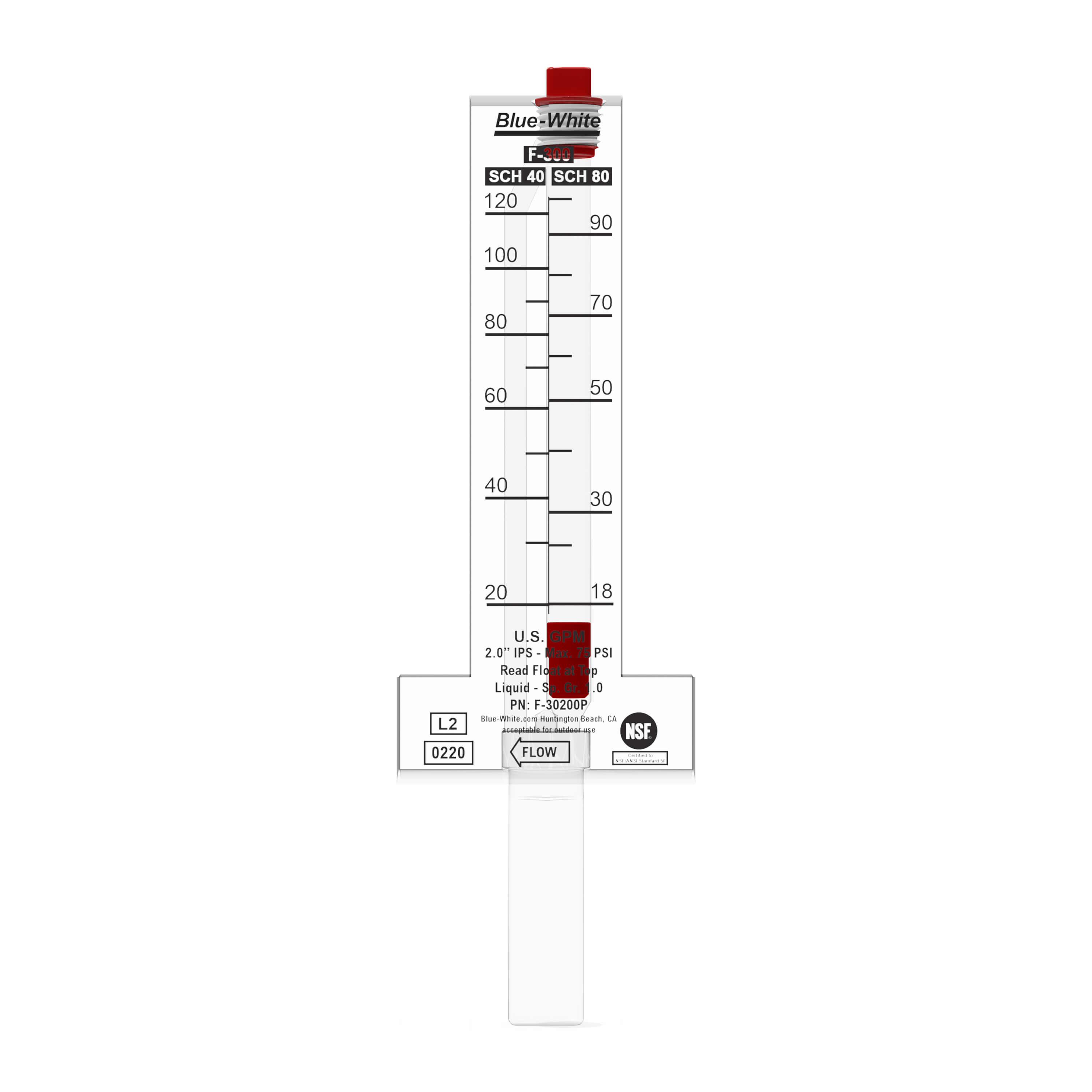

F-300
CHEM-FEED® Multi-Diaphragm Metering Pump
An aquatics industry standard for over six decades, Blue-White’s F-300 Flow Meter is accurate and has reduced space requirements for installation. The aerodynamic pitot tube is designed for smooth fluid flow through the meter. There are four capture points resulting in no float bounce.
New features include:
- PVDF cap that won’t fade or crack
- PVDF float that won’t stick, is chemical resistant, and easy-to read-color
- Improved accuracy
Recommended Accessories:
F-300S, F-300SL Flow Switch and Sensor
Technical Overview:
GPM
2 - 1900
LPM
8 - 7200
PSI
75
Bar
5.2
Fahrenheit (°F)
190
Celsius (°C)
88
Body Material
Acrylic
Pipe Sizes
1”, 1¼”, 1½”, 2”, 2½”, 3”, 4”, 6”, 8”
Literature
F-300 Literature
Instruction Manuals
F-300 Instruction Manual – 80000-557Technical Data Sheets
F-300 | D-300 | U-300 Technical Data Sheet – 85000-071Quickstart Guides
F-300 Quickstart Guide – 80000-700Brochures
Blue-White Pool Flysheet - 80000-589
Flow Rate Calculator
Pool Flow Rate Calculator
Time / Turnover:
Flow Rate:
Overview
Key Features
Model Variations
- F-300 = Horizontal flow
- D-300 = Vertical downflow
- U-300 = Vertical upflow
- NSF 50 LISTED 1”, 1.25”, 1.5”, 2” (L2), 2.5”, 3”, 4”, 6”, and 8″ (L3) – Horizontal flow only
- Well suited for closed pipe installations
- Easy to read dual scale (SCH 40 / SCH 80), screen printed on both sides of the meter body
- Acceptable for outdoor installations (direct sunlight okay)
- Pitot Tube (impact tube) design makes it easy to install on existing pipe
- One-piece, machined acrylic meter body
- Included SS clamps and gasket seal
- For use on PVC (refer to literature)
Technical
Specifications
Horizontal Installation
1″, 1.25″, 1.5″, 2″, 2.5″, 3″, 4″, 6″, 8″
Vertical Installation
1½″, 2″
Max. Working Pressure
75 PSI (5.17 bar) @ 70˚F (21˚C)
Max. Fluid Temperature
190˚F / 88˚C @ 0 PSI
Full Scale Accuracy
- +/- 5% (L2 Pipe sizes: 1”, 1.25”, 1.5” and 2”)
- +/- 10% (L3 Pipe sizes: 2.5”, 3”, 4”, 6”, and 8”)
Meter Body Material
Acrylic
Gasket Material
Neoprene
Float Material
PVDF
Connection Type
Saddle
Pipe Capability
PVC Schedule 40 and Schedule 80
Approx. Shipping Weight
- 1” to 4” Pipe: 1 lb. (.454kg)
- 6” and 8” Pipe: 2 lb. (.907 kg)
Purchase
Order Now
20 models
| Image | Catalog Number | Description | Flow Unit of Measurement | Flow Direction | Imperial Pipe Size | Metric Pipe Size | Float Material | Price | Add to cart |
|---|---|---|---|---|---|---|---|---|---|
| F-451001LHN-24-E | F-300 900-3200 LPM 160MM METRIC | Metric Models | Horizontal Flow | 160 | PVDF | $342.00 | Add to cart | ||
| F-452060LHN-E | F-300 1500-5100LPM 200MM METRIC | Metric Models | Horizontal Flow | 200 | PVDF | $380.00 | Add to cart | ||
| U-30150P | U-300 10-60 GPM 1.50″ PIPE UP | Imperial Models | Upwards Flow | 1.5 | PVDF | $165.00 | Add to cart | ||
| U-30200P | U-300 20-110 GPM 2.00″ PIPE UP | Imperial Models | Upwards Flow | 2 | PVDF | $165.00 | Add to cart | ||
| F-30125P | F-300 9-50 GPM 1.25 PIPE | Imperial Models | Horizontal Flow | 1.25 | PVDF | $165.00 | Add to cart | ||
| F-30400P | F-300 75-420 GPM 4.00″ IPS | Imperial Models | Horizontal Flow | 4 | PVDF | $165.00 | Add to cart | ||
| F-30110M | F-300 600-1800 LPM 110MM METRIC | Metric Models | Horizontal Flow | 110 | PVDF | $165.00 | Add to cart | ||
| F-30100P | F-300 5-35 GPM 1.00″ PIPE | Imperial Models | Horizontal Flow | 1 | PVDF | $165.00 | Add to cart | ||
| F-30300P | F-300 45-240 GPM 3.00″ PIPE | Imperial Models | Horizontal Flow | 3 | PVDF | $165.00 | Add to cart | ||
| F-30050M | F-300 50-350 LPM 50MM METRIC | Metric Models | Horizontal Flow | 50 | PVDF | $165.00 | Add to cart | ||
| F-30800P | F-300 300-2200 GPM 8.00″ PIPE | Imperial Models | Horizontal Flow | 8 | PVDF | $235.00 | Add to cart | ||
| F-30032M | F-300 30-150 LPM 32MM METRIC | Metric Models | Horizontal Flow | 32 | PVDF | $165.00 | Add to cart | ||
| F-30250P | F-300 29-150 GPM 2.50″ PIPE | Imperial Models | Horizontal Flow | 2.5 | PVDF | $165.00 | Add to cart | ||
| F-30200P | F-300 20-120 GPM 2.00″ PIPE | Imperial Models | Horizontal Flow | 2 | PVDF | $165.00 | Add to cart | ||

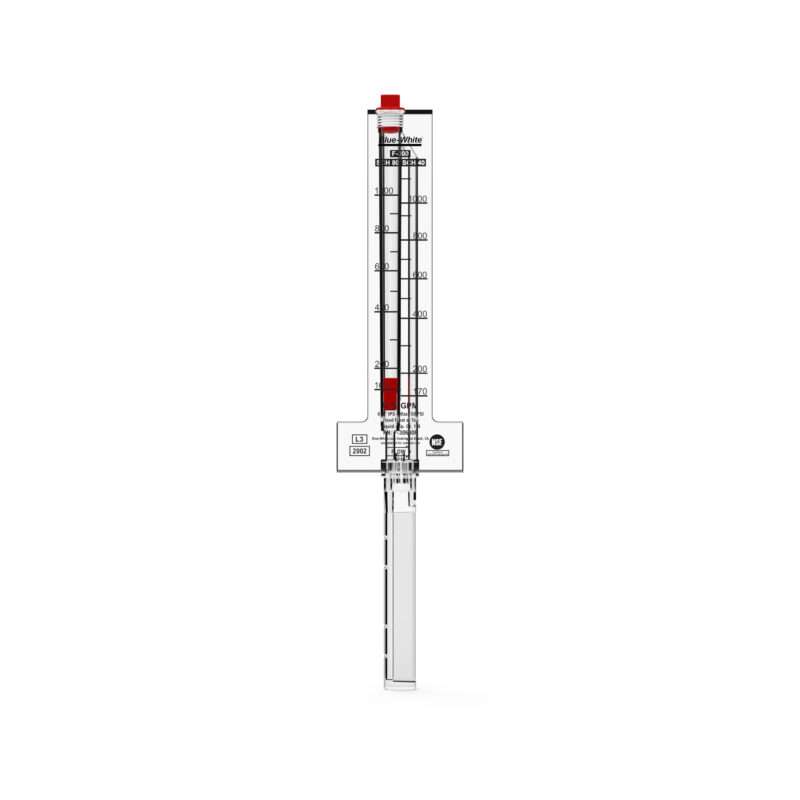

| F-30600P | F-300 170-1100 GPM 6.00″ PIPE | Imperial Models | Horizontal Flow | 6 | PVDF | $235.00 | Add to cart | ||
| F-30090M | F-300 200-800 LPM 90MM METRIC | Metric Models | Horizontal Flow | 90 | PVDF | $165.00 | Add to cart | ||
| F-30075M | F-300 150-700 LPM 75MM METRIC | Metric Models | Horizontal Flow | 75 | PVDF | $165.00 | Add to cart | ||
| F-30150P | F-300 10-70 GPM 1.50″ PIPE | Imperial Models | Horizontal Flow | 2.5 | PVDF | $165.00 | Add to cart | ||
| D-30200P | D-300 20-110 GPM 2.00″ PIPE DWN | Imperial Models | Downwards Flow | 2 | PVDF | $165.00 | Add to cart | ||
| F-30063M | F-300 100-475 LPM 63MM METRIC | Metric Models | Horizontal Flow | 63 | PVDF | $165.00 | Add to cart |
Order Info
Meter Ranges
Horizontal Pipe Installation
Models for U.S. IPS SCH 40 & 80 Pipe (ASTM 1785)
| MODEL NO. | PIPE SIZE | PIPE MATERIAL | SCH 40 (GPM) | SCH 80 (GPM) |
|---|---|---|---|---|
| F-30100P | 1” IPS | PVC | 5 – 35 GPM | 4 – 26 GPM |
| F-30125P | 1 ¼” IPS | PVC | 9 – 50 GPM | 8 – 40 GPM |
| F-30150P | 1½” IPS | PVC | 10 – 70 GPM | 10 – 60 GPM |
| F-30200P | 2” IPS | PVC | 20 – 120 GPM | 18 – 100 GPM |
| F-30250P | 2½” IPS | PVC | 29 – 150 GPM | 25 – 130 GPM |
| F-30300P | 3” IPS | PVC | 45 – 240 GPM | 40 – 215 GPM |
| F-30400P | 4” IPS | PVC | 75 – 420 GPM | 70 – 375 GPM |
| F-30600P | 6” IPS | PVC | 170 – 1100 GPM | 160 – 1000 GPM |
| F-30800P | 8” IPS | PVC | 300 – 2200 GPM | 275 – 1950 GPM |
Horizontal Pipe Installation (Metric)
Models for METRIC Pipe (DIN 8062)
| MODEL NO. | PIPE SIZE | PN10 (LPM) | PN16 (LPM) |
|---|---|---|---|
| F-30032M | 32mm | 30 – 150 LPM | 30 – 130 LPM |
| F-30040M | 40mm | 70 – 310 LPM | 60 – 270 LPM |
| F-30050M | 50mm | 50 – 350 LPM | 50 – 300 LPM |
| F-30063M | 63mm | 100 – 475 LPM | 75 – 400 LPM |
| F-30075M | 75mm | 150 – 700 LPM | 150 – 600 LPM |
| F-30090M | 90mm | 200 – 850 LPM | 200 – 800 LPM |
| F-30110M | 110mm | 600 – 1800 LPM | 550 – 1600 LPM |
Verticle Pipe Installation
Models for U.S. IPS SCH 40 & 80 Pipe (ASTM 1785)
| MODEL NO. | PIPE SIZE | SCH 40 (GPM) | SCH 80 (GPM) |
|---|---|---|---|
| D-30150P | 1½” IPS | 10 – 60 GPM | 10 – 50 GPM |
| D-30200P | 2” IPS | 20 – 110 GPM | 20 – 100 GPM |
| U-30150P | 1½” IPS | 10 – 60 GPM | 10 – 50 GPM |
| U-30200P | 2” IPS | 20 – 110 GPM | 20 – 100 GPM |
Watch
Product Videos

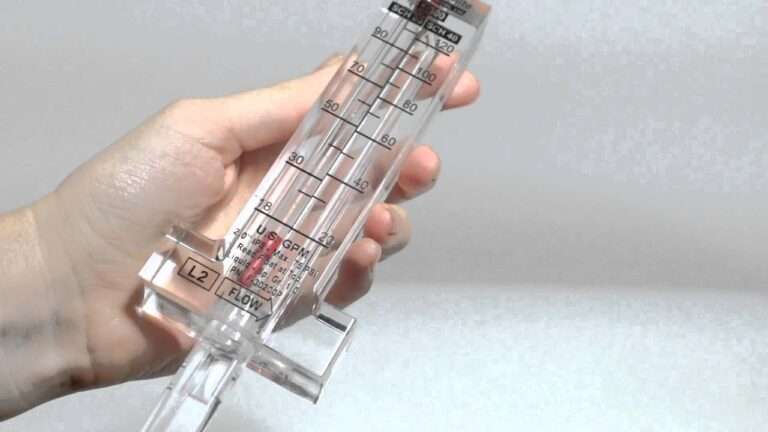

F-300 Evolved
