Terminal Box
Pump/Skid TB Terminal Boxes
Terminal Boxes provide a simple, pre-wired junction solution for pump wiring and facility integration. Pre-configured with M12 signal cables and compatible with ½” conduit, these compact, corrosion-resistant enclosures simplify upgrades from pumps with integral conduit connections.
Easy to order with “1” Series, “S” Series, “2” Series, and C2/C3 pumps—or as an option with skid systems—Terminal Boxes help streamline installation while ensuring long-term durability. The NEMA 4X-rated enclosure offers reliable protection in demanding chemical environments.
Technical Overview:
Enclosure
NEMA 4X
Connection
Pre-wired M12 Cables
Warranty
1 Year
Chemical Resistance
Acceptable in chemical areas
Mounting
Simple and Maintenance Friendly
Product Compatibility
A1/M1, A2/M2, A3/M3, A4/M4, A5/M5,
CD1/MD1, CD3/MD3, C2/C3
CD1/MD1, CD3/MD3, C2/C3
Literature
Converter Box Literature
3D Visualizer
[bwi-visualize]
Features
- Simple junction box for wiring pumps.
- Pre-wired with necessary M12 signal cables.
- Simplifies installation when upgrading from pumps that use
integral conduit connections. - Easy to order with “1” Series, “S” Series pumps, “2” Series, C2/
C3 pumps, or as an option to skid systems. - Corrosion resistant NEMA 4X enclosure ensures compatibility
in harsh environments.
What’s Included
-
- Terminal Box
- M12 Cables, IP67, 10 ft length (“S” Series – Qty 6, “1” Series – Qty 3)
- Four (4) mounting tabs included
- Dimensional drawing with wiring guide
Specifications
Part Number

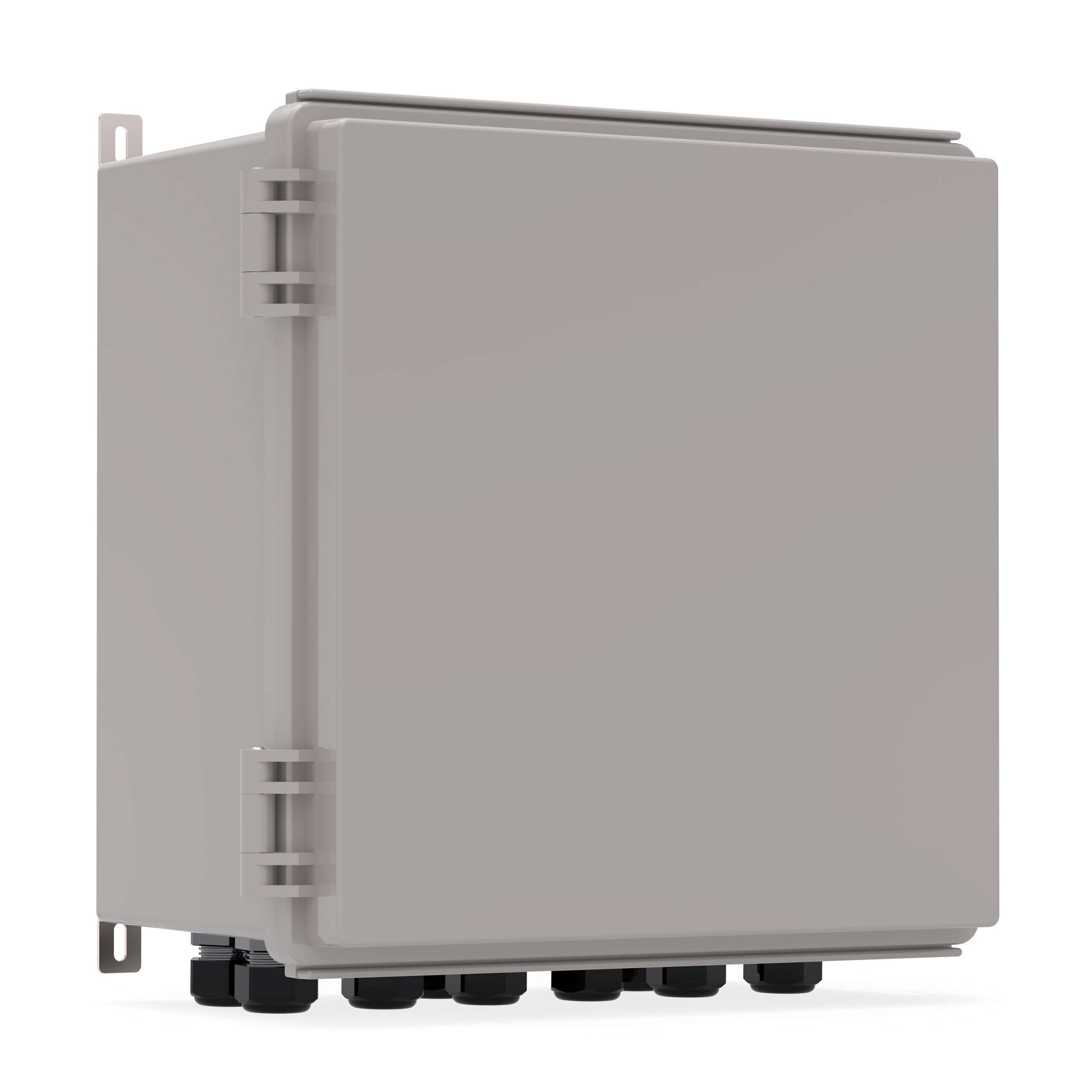

- TB-1 Single Pump, TB-2 Dual Pump, TB-3 Triple Pump
Pump Compatibility
- A1/M1, A2/M2, A3/M3, A4/M4, A5/M5 FLEXFLO® Peristaltic Pumps
- CD1/MD1, C2/C3 or CD3/MD3 CHEM-FEED® Diaphragm Pumps
Enclosure NEMA
- 4X (POLYCARBONATE/FIBERGLASS)
Cables
- M12 Cables (10 feet long) for “S” Series and “1” Series units. Shielded, IP 67 rated.
Mounting Brackets and Hardware
- Stainless Steel
Terminal Blocks
- Push-in connection
Wiring Fittings/Cut-out
- Three (3) 3-cord Cord Grips and One (1) capped .875 “ cutout for 1/2” conduit (per pump)
Temperature 14 °
- F to 115 °F (-10 °C to 46 °C)
Approximate Shipping Weight
- Single: 15 lb. (6.8 Kg), Dual: 20 lb. (9.1 Kg), Triple: 25 lbs (11.3 Kg)
