Industrial / Municipal
Custom Engineered
Skid Systems
Standard skid systems don’t always fit every project. When your specifications call for something more, Blue-White designs and builds custom engineered skid systems — matched to your pipe size, pressure, chemistry, footprint, and pump configuration.
A skid system built around your exact requirements.
Tell us your pipe size, pressure, pump type, and materials of construction — our team will scope a custom engineered skid built to your exact specification.
Technical Overview
| Specification | Details |
|---|---|
| Pipe Size | Up to 2″ pipe |
| Pressure | Up to 150 PSI |
| Pump Compatibility | All types of peristaltic and diaphragm pumps |
| Skid Materials | LDPE rotationally molded frames, HDPE welded sheet |
| Piping Materials | PVC, CPVC, PVDF, Chem Proline PE, stainless steel (tubing), Alloy 20 (tubing) |
| Warranty | 2 years (same as standard) |
| Standards | Can be designed to fully utilize NSF 61 components and piping. Factory tested. |
Standard skids don't always fit the spec
Blue-White's standard skid systems are easy to order, consistent, reliable, and cost-effective, with strong lead times. But they don't always meet the exact specifications of certain projects. Customers left without options may source skids elsewhere or attempt to build their own — sacrificing quality, time, money, and the benefits of a single source.
Engineered to your exact requirements
Blue-White has the capability to provide custom engineered skids built around your project's needs. We equip distributors, reps, engineers, and plant managers with the information, resources, and support needed to quote and deliver — so you never have to look elsewhere.
Key Features
Every custom skid is assembled from a proven set of configurable capabilities — matched to your pipe size, chemistry, footprint, and pump requirements.
Built around your exact process requirements.
Unlimited Configurations
Exact solution for your customers' needs.
Multiple Materials
Construction options for max chemical resistance.
Single or Multiple Pumps
Duty / back-up, modular, or shared inlet configurations.
Engineered for protection, even in the tightest footprints.
Enclosed Skids
Ensures ultimate safety and user protection.
Compact Designs
Flexible dimensions to fit the toughest space restrictions.
Spill Containment
Built into skids to meet specified volume, segregated as needed.
Fits your facility standards, backed by a single source.
Variety of Component Brands
Valves, flow meters, and more — matched to facility standards.
Combined or Multiple Inlets/Outlets
Flexible configurations, duty/back-up, and multiple injection points.
Single Point of Contact
Peace of mind with single source responsibility.
Skid Styles
From cost-effective molded frames to fully enclosed containment systems, Blue-White builds a skid style to fit any footprint, budget, or safety requirement.

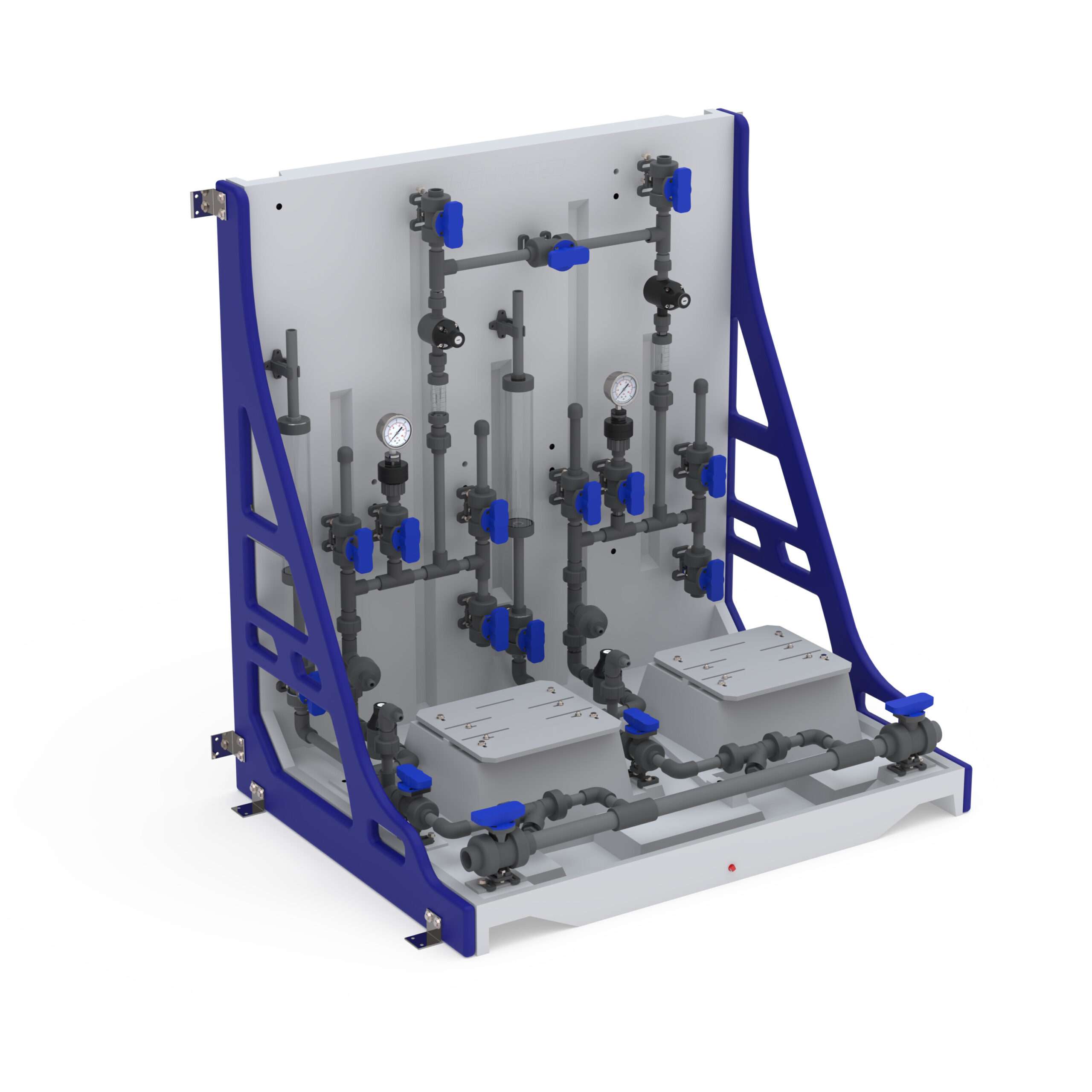

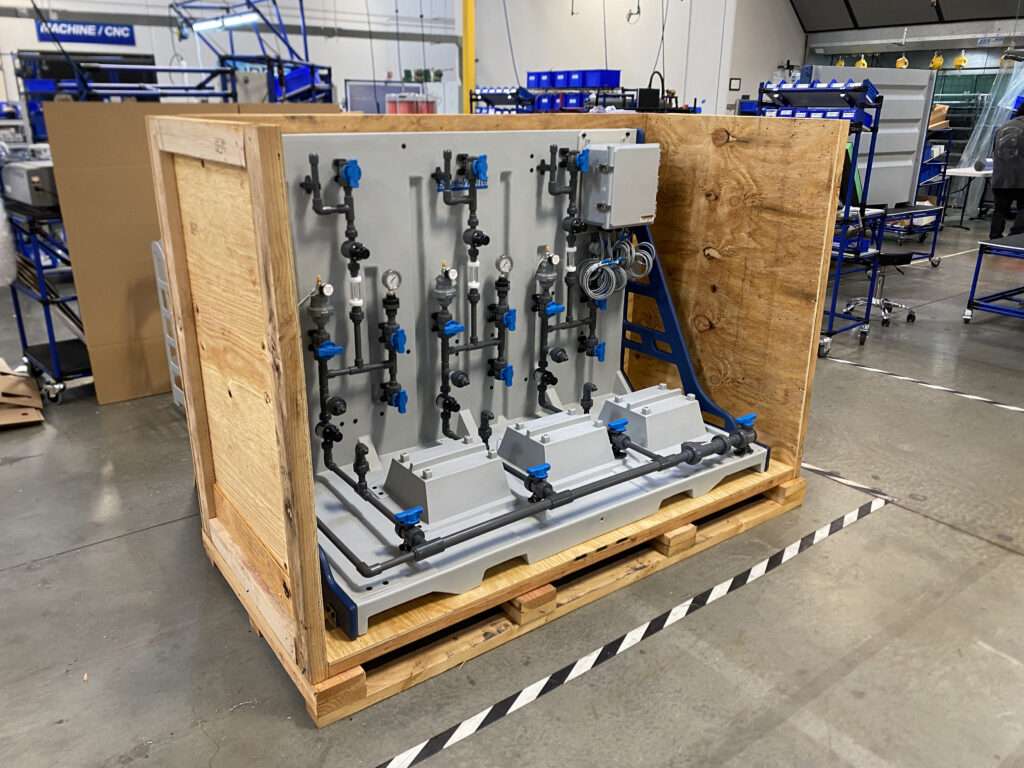

Molded Polyethylene Frames
Rotationally molded LDPE frames deliver a reliable, ready-to-ship skid at the best cost and lead time.

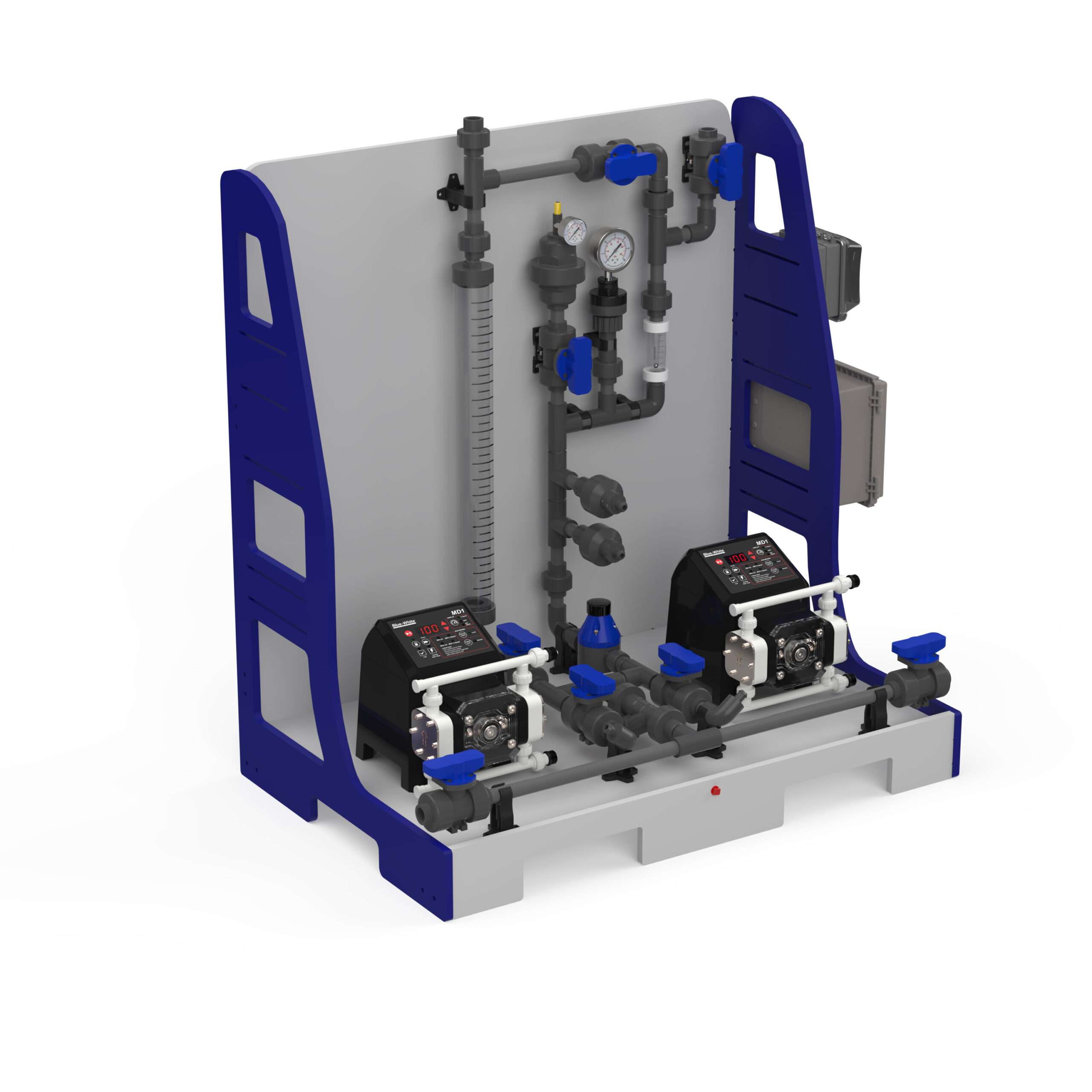

Welded HDPE Frames
Welded construction opens up the design for larger footprints and configurations standard frames can't accommodate.

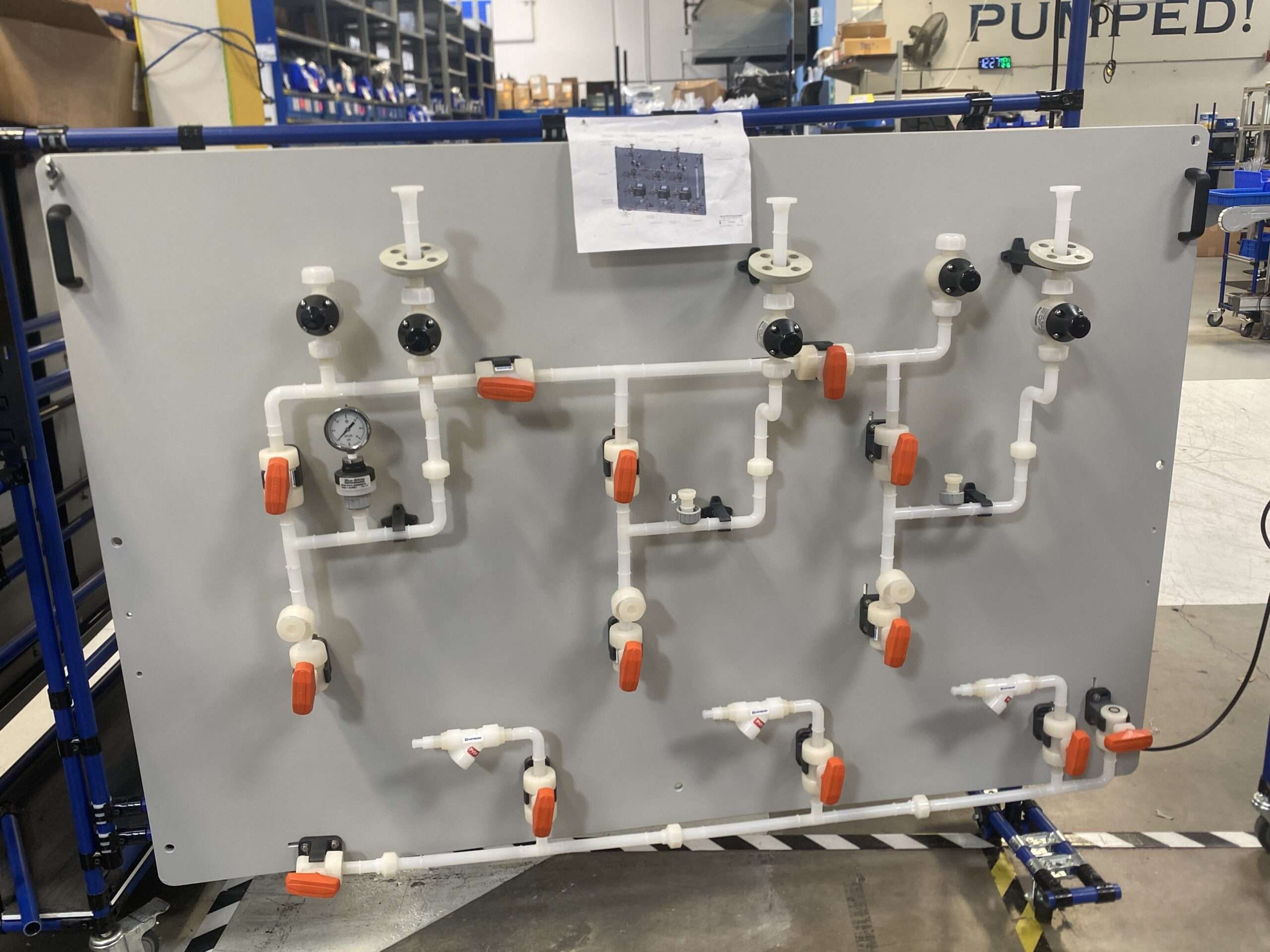

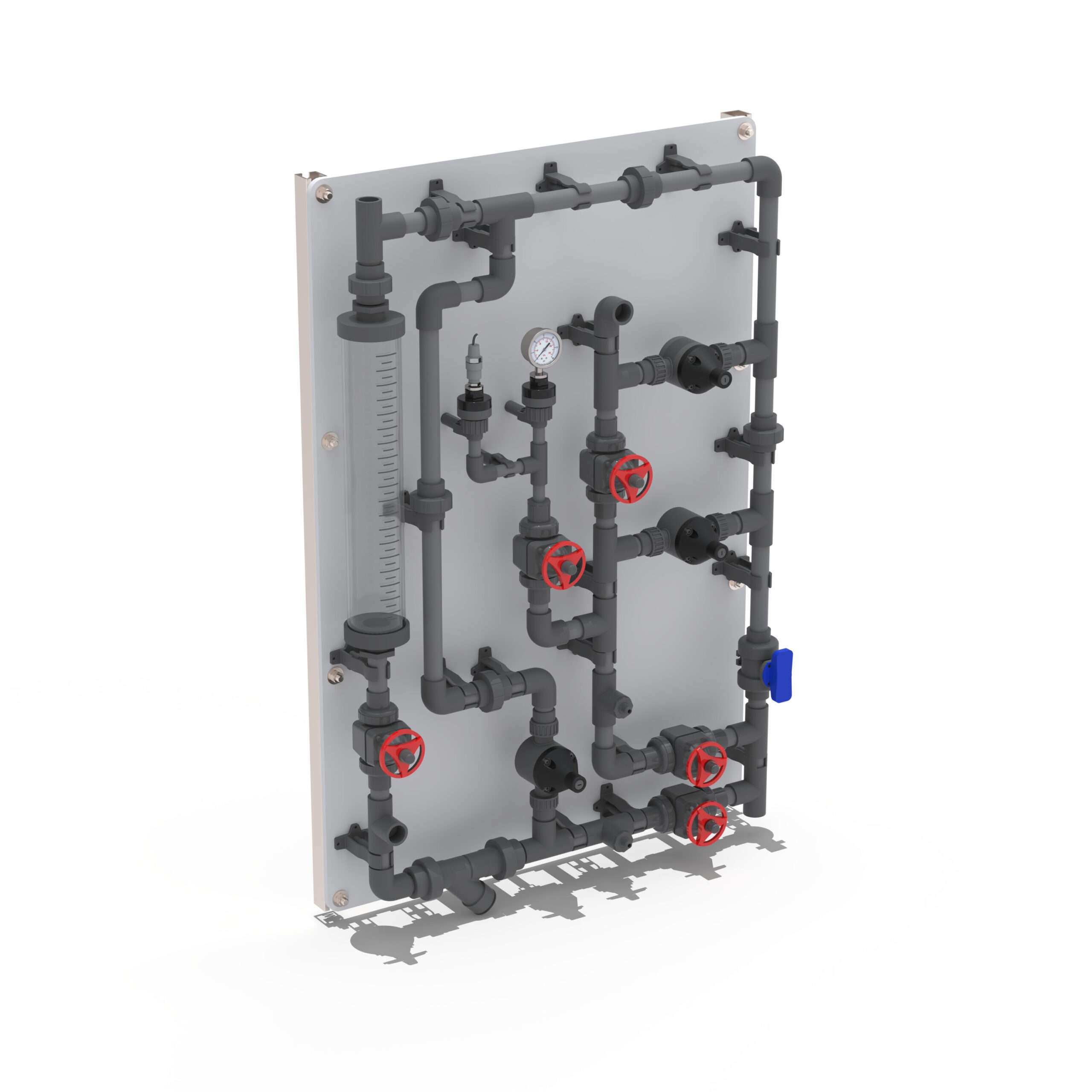

Wall Panels
A compact, wall-mounted layout that frees up floor space for simpler, smaller-footprint installations.

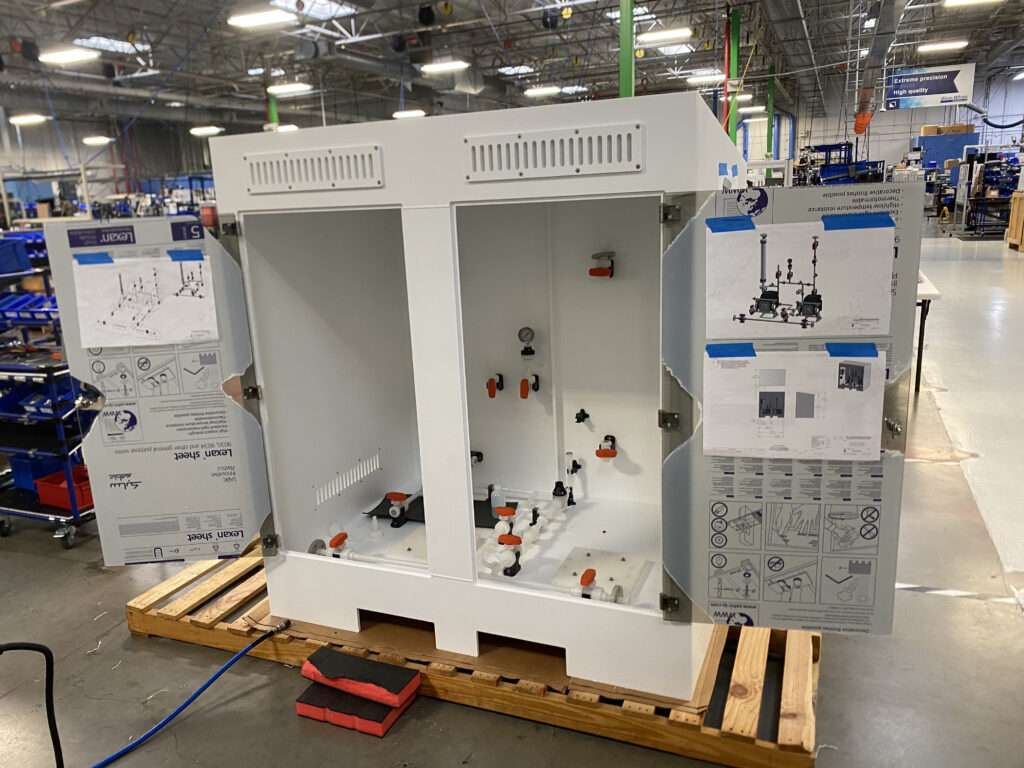

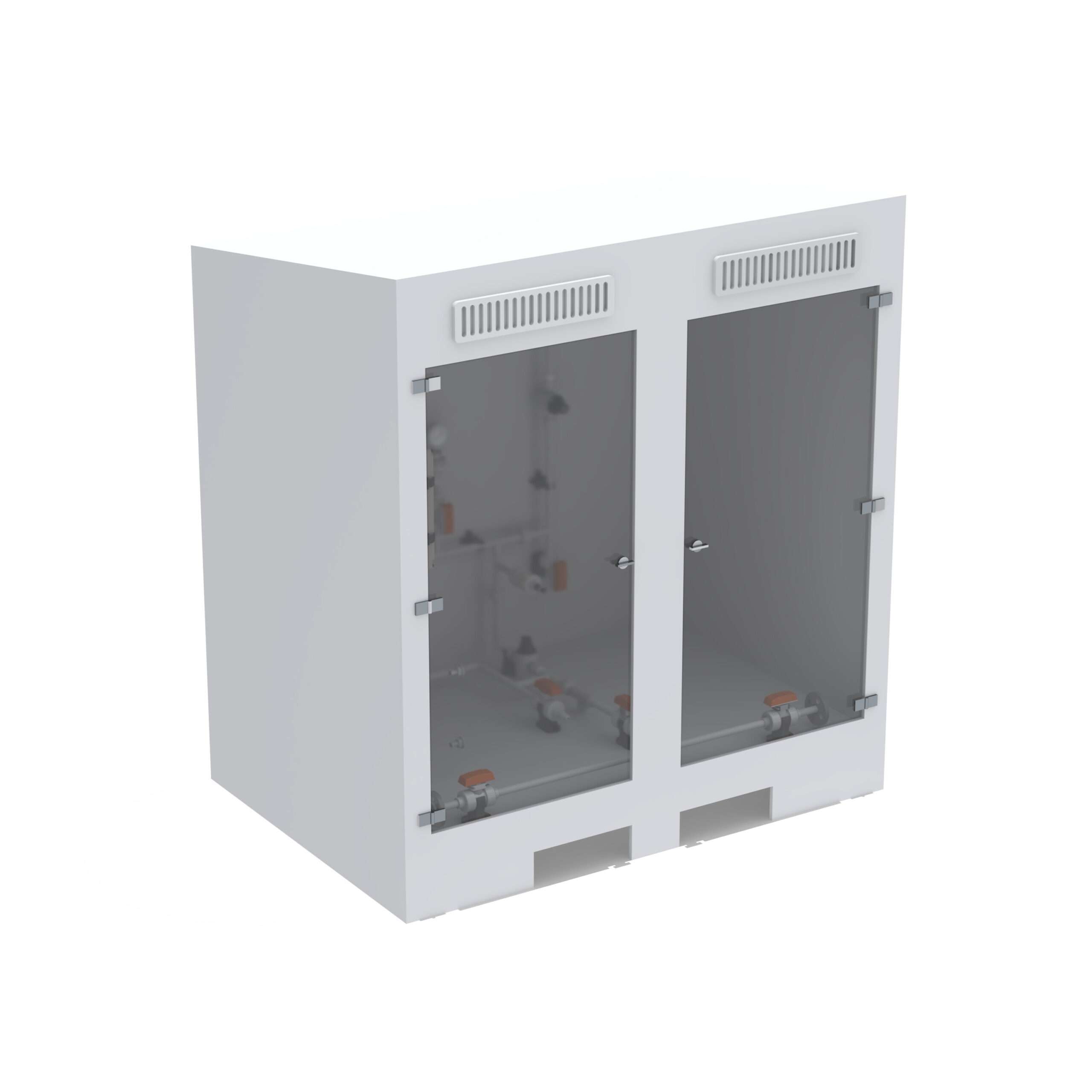

Enclosed Systems
Fully enclosed housing protects components and operators while providing built-in containment for maximum safety.
View Example Configurations Below
Click a configuration below to view its interactive 3D model.
Features and Benefits
Features and Benefits
Features and Benefits
Features and Benefits
Features and Benefits
Features and Benefits
Features and Benefits
Features and Benefits
Features and Benefits
Features and Benefits
Getting your custom quote
Blue-White makes it simple to move from specification to a fully vetted, factory-tested skid — with a single point of contact throughout. No back and forth, no guesswork — just a knowledgeable review of your requirements and a proposal built around them.
Design & Maintenance
Built to spec Build to last
