Tube Failure Detection

Should a pump tube rupture FLEXFLO® Peristaltic Pumps are equipped with Blue-White’s patented, built-in Tube Failure Detection System (TFD).

This technology detects a wide range of conductive chemicals with no false triggering. If the TFD detects tube failure, the pump will automatically shut off and energize a relay switch. This permits communication with external equipment, such as a back-up pump, SCADA system or alarm. It also serves to prevent chemical spills and added downtime.

U.S. patents: 7,001,153 and 7,284,964

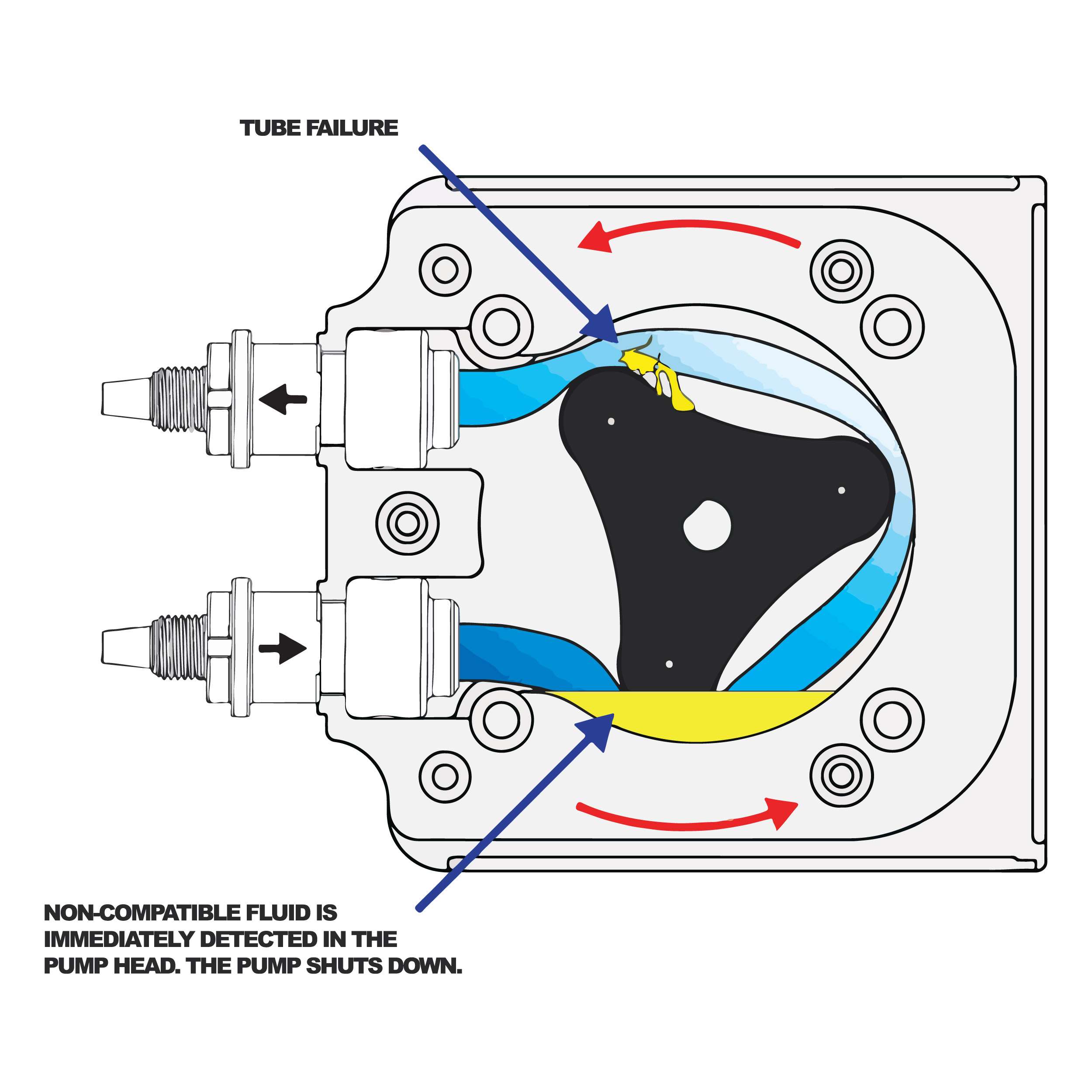

tfd illustration

A breakthrough technology for peristaltic pumps

The TFD system will detect a wide range of chemicals (i.e. chlorine, acids, soaps, etc.).

If a chemical is detected in the pump-head, the pump will automatically shut off

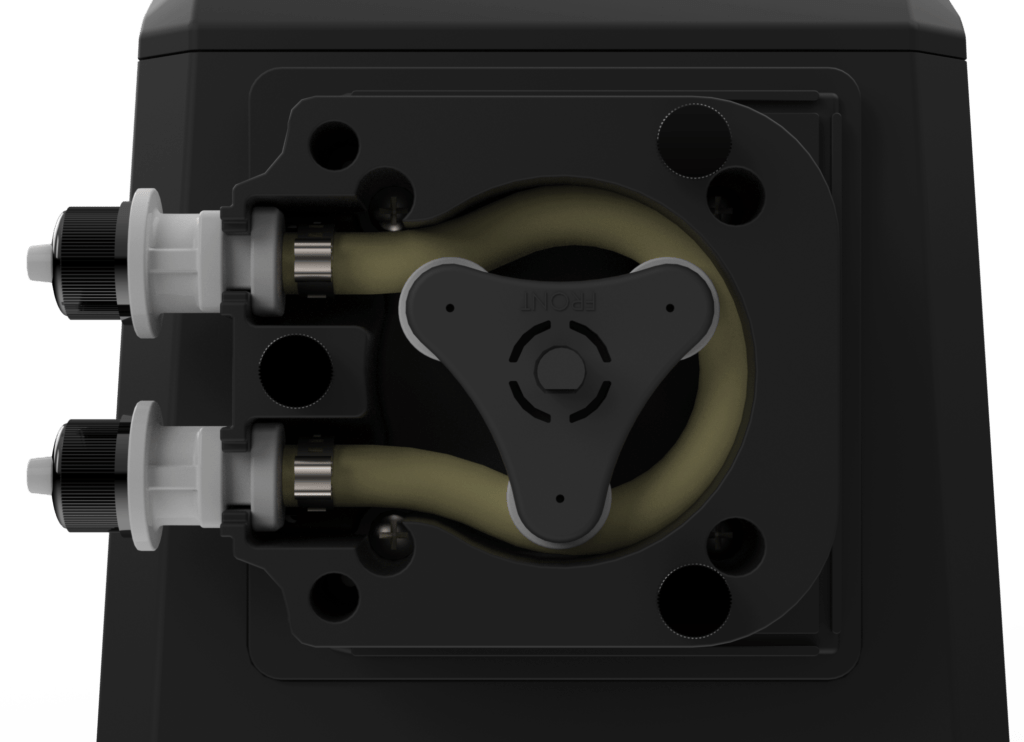

weftec m1 03

Detects tubing failure

Prevents chemical spills

Standard on all peristaltic pumps

No false triggering

Featured Pumps

FLEXFLO® A1 Peristaltic Metering Pump for Industrial applications!

A1

GPH LPH
.001 - 5.6 .002 - 21.2
PSI Bar
100 6.9

A2 scaled

A2

GPH LPH
.02 - 17.2 .07 - 65.1
PSI Bar
125 8.6

FLEXFLO® A3 Peristaltic Metering Pump for Industrial applications

A3

GPH LPH
.001 - 33.3 .003 - 126
PSI Bar
125 8.6

A4 scaled

A4

GPH LPH
.01 - 158.5 .04 - 600
PSI Bar
125 8.6
