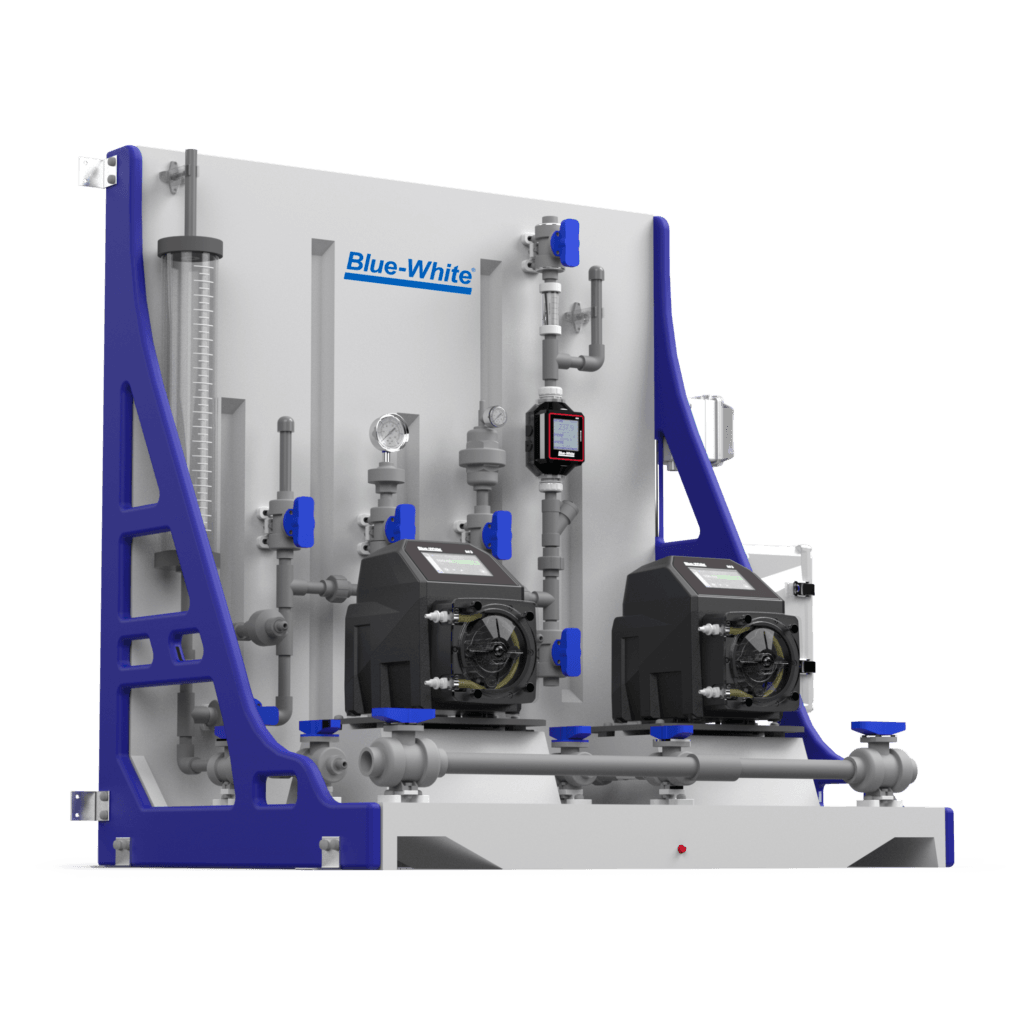

weftec duplex skid 02
weftec duplex skid 02

CHEM-FEED® CFPS-2 Duplex Skid System

Ships fully assembled for quick installation

Watch Video

CFPS-2 Technical Overview

System Type
Duplex pump system
Product Compatibility
M1, M2, M3, M4, MD1, MD3, MC2, MC3
Frame Material
Polyethylene
Mounting Position
Floor or Wall
PSI
150
Bar
10.3

Local, Easy-to-Access Wiring Connections

Terminal Box (optional): Pumps pre-wired for easy access to all electrical signal wires

Electrical Outlet Box (optional): Designed for use in wet, damp, or dry locations

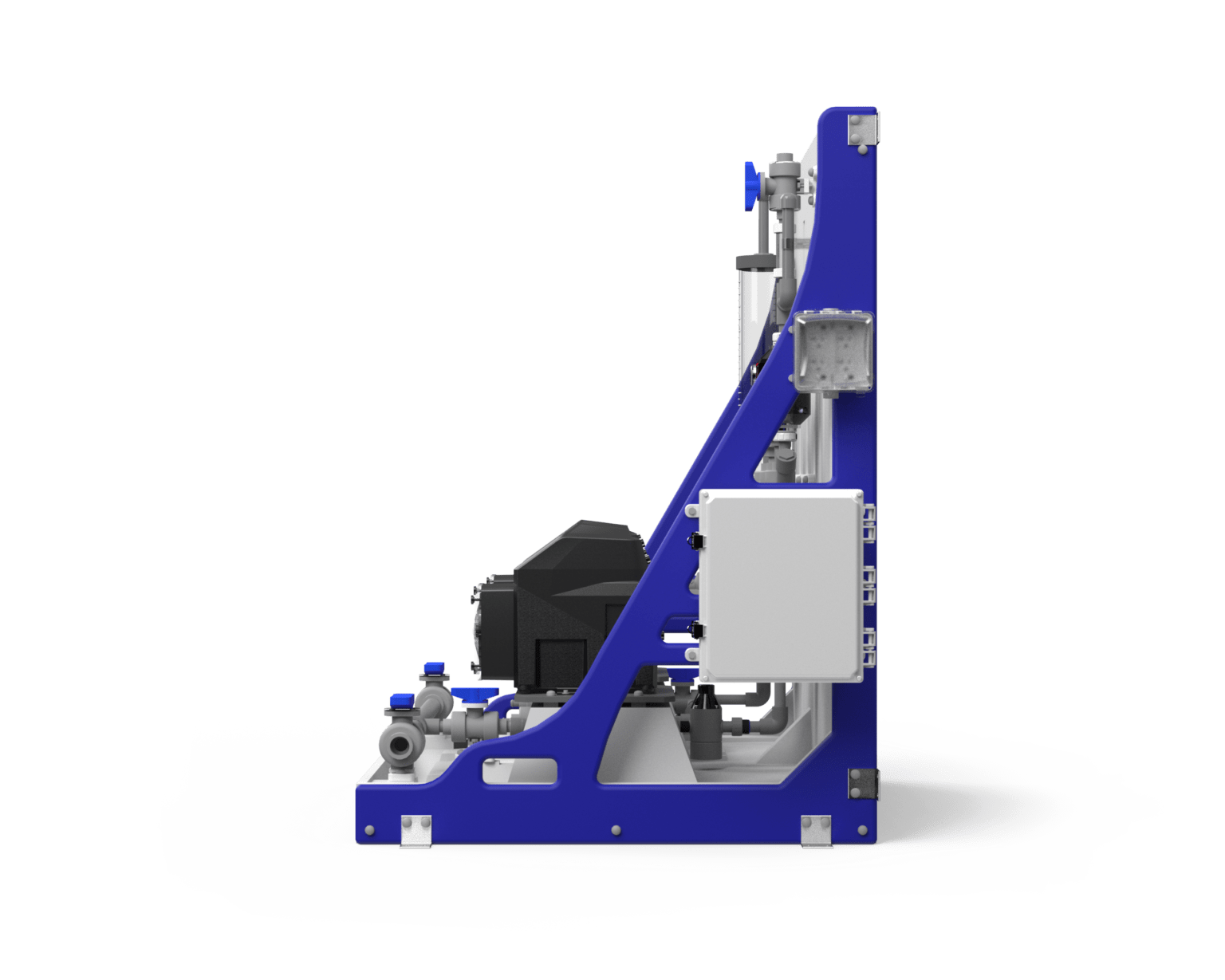

weftec duplex skid 03

Plug and Play

Ships fully assembled for quick installation

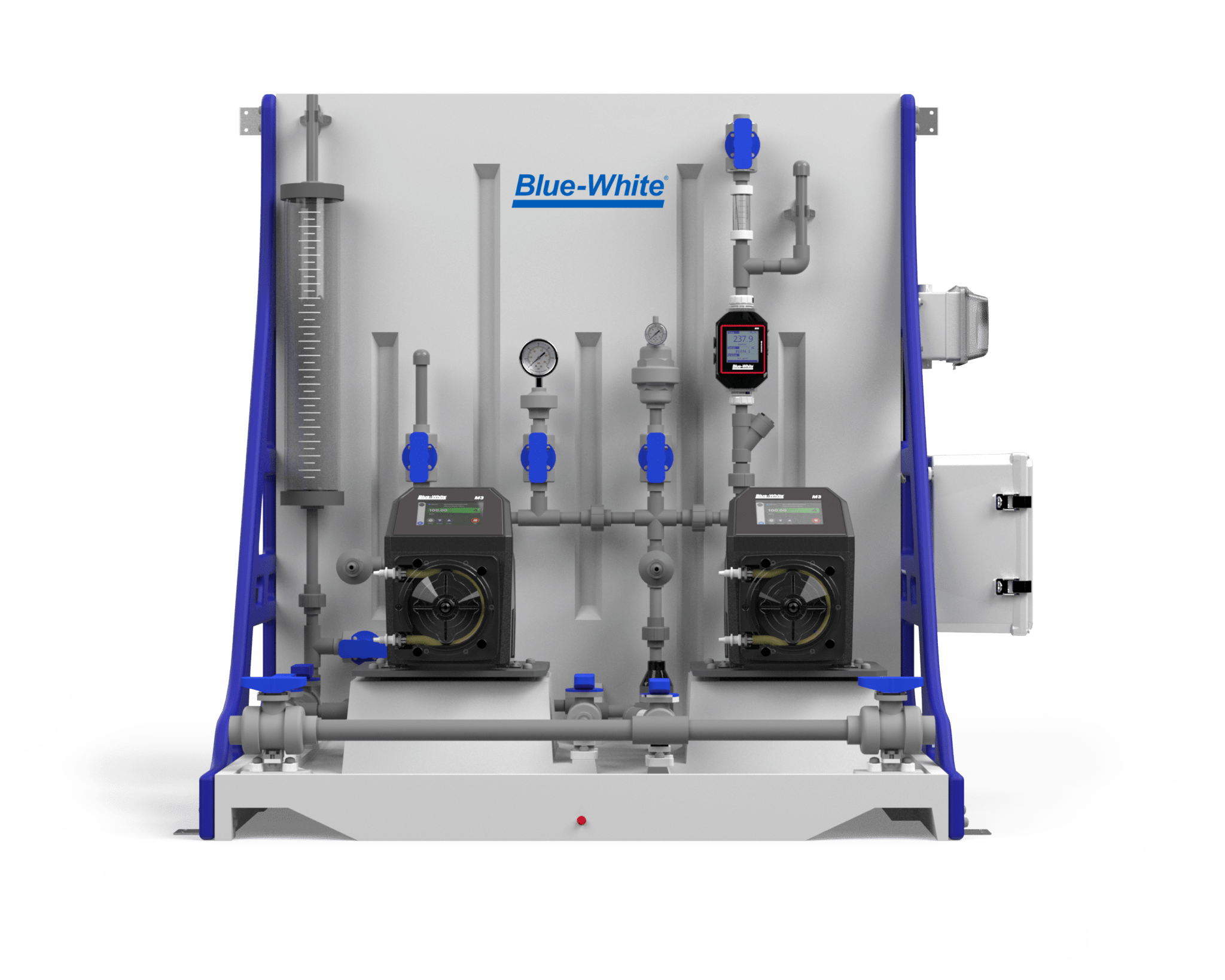

weftec duplex skid 01

Calibration Cylinder (Optional)

Pressure Gauge (Optional)

Chemical Metering Pump (Optional)

Chemical Input #1

Chemical Input #2

Y Strainer (Optional)

Chemical Feed Flow Meter (MS6 - Optional)

Pulsation Dampener (optional)

Mounting bracket

Chemical Output

Flow Indicator (optional)

GFCI Outlets (optional)

Terminal Box (optional)

Drain plug
