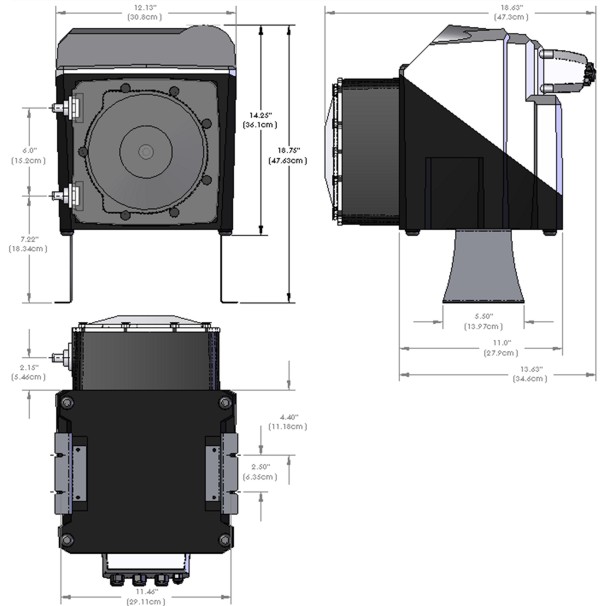

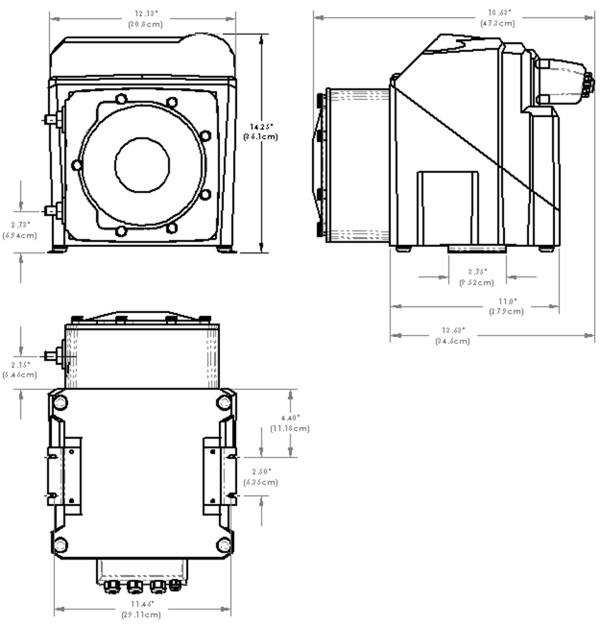

A4 Flex-Pro® Peristaltic Metering Pump Dimensions A4 Dimensional Drawing with Standard Brackets. Download DXF drawing - PDF drawing A4 Dimensional Drawing with Extended Brackets. Download DXF drawing - PDF drawing   Flex-Pro® pump ships with standard Stainless Steel mounting brackets (shown). Brackets allow the pump to be securely mounted to most any surface; floor, shelf, or skid. Optional: Extended brackets are available. Extended brackets raise the pump 4-1/2" for easy pump access. Bolt hole pattern remains the same as standard brackets. For Solid Model (STEP, ParaSolid, SolidWorks) drawings, please contact the factory.
