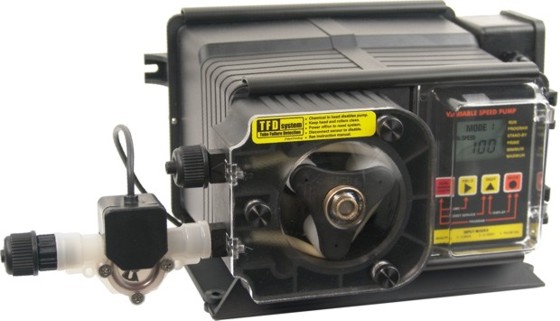

Peristaltic Pump
with FVS (Flow Verification System)
|
|
|
|
Note: A diaphragm pump requires
the sensor to be mounted on the discharge (output) side of the
pump head.
|
Installing the FVS
Flow Monitor
|
|
-
The Flow Verification Sensor
(FVS) should be installed on the inlet (suction) side of the
pump tube. The sensor includes a PVC tubing insert, located
inside the sensor's female thread connection, that is designed
to seal the sensor onto the pump tube inlet adapter.
-
Thread the sensor onto the pump
tube until the tubing insert is snug against the pump tube inlet
fitting. Do not over tighten.
-
Connect the RED, BLACK, and WHITE
wires from the sensor to the RED, BLACK, and YELLOW wires
located in the pump's junction box.
|
|
Caution:
Always wear protective clothing, face shield, safety glasses and gloves when
working on or near your metering pump.
Additional precautions should be taken depending on the solution being
pumped. Refer to MSDS precautions from your solution supplier. |
|
Note: All
diagrams are strictly for guideline purposes only. Always consult an
expert before installing the metering pump on specialized systems.
The metering pump should be serviced by qualified persons only. |
|
