Flow Verification Sensor (FVS) Dimensions

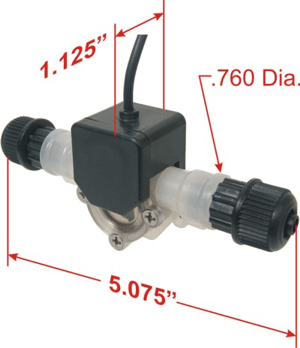

FVS with 3/8" Compression Tube Fittings

  • For 3/8" tube connection

  • Flow can go either direction

  • PVDF (Kynar) tube fittings

  • Overall height dimension = 2.125"

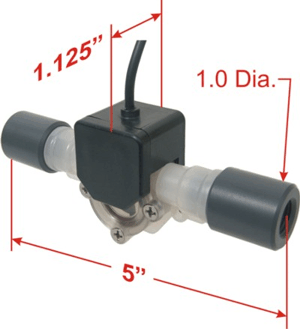

FVS with 1/4" Female NPT Fittings

  • For 1/4" NPT connections

  • Flow can go either direction

  • PVC fittings

  • Overall height dimension = 2.125"

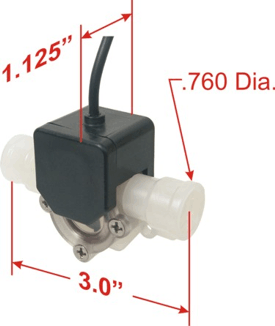

FVS without Fittings

  • Flow can go either direction

  • Overall height dimension = 2.125"
