Variable Speed Models
(continuous
pulse free output)
|
|
Continuous pumping, even while adjusting the
percentage of output. See image below.

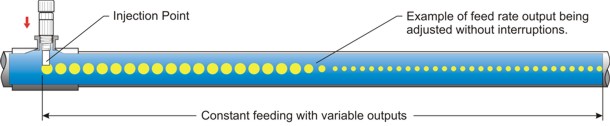

Graphical representation of the variable speed
diaphragm pump
injection characteristics.
Note: Your chemical or solution is mixed in the fluid. This image is
only illustrating the feed characteristics.
|
|
 |
|
Fixed Speed Models
(intermittent cycle time output)
|
|
|
You control the pumps feed by using
timers (built-in or external). See image below. Usually
fixed speed outputs can be
adjusted by:
- Selecting the pumphead diaphragm size.
- Manual stroke length adjustment (cam
style).
- Choosing the desired RPM (revolutions per minute).

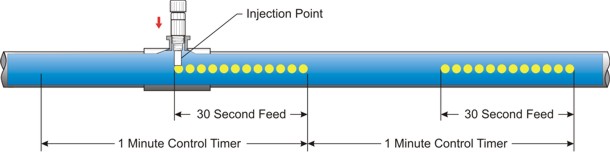

Graphical representation of the fixed speed
diaphragm pump injection characteristics.
Note: Your chemical or solution is mixed in the fluid. This image is
only illustrating the feed characteristics. |
|
 |
|
|
