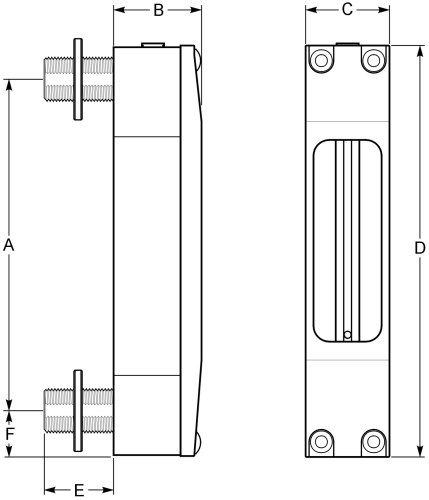

F-650 Non-adjustable Dimensional

F-650 Non-adjustable Series
Letter

Dimensions
65 mm tube

 Dimensions
150 mm tube
A 5-1/4 in. (133.4 mm) 9-1/2 in. (241.3 mm)
B 1-3/8 in. (34.9 mm) 1-3/8 in. (34.9 mm)
C 1-1/4 in. (31.8 mm) 1-1/4 in. (31.8 mm)
D 6-1/2 in. (165.1 mm) 10-7/8 in. (276.2 mm)
E 1 in. (25.4 mm) 1 in. (25.4 mm)
F 3/4 in. (19.05 mm) 3/4 in. (19.05 mm)
