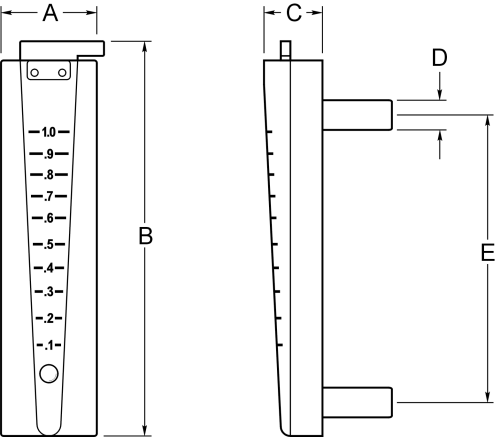

F-750 Dimensional

F-750  /  F-751   Nonadjustable
Letter

Dimension
A

1 in.
(25.4 mm)
B

3-5/16 in.
(100 mm)
C

5/8 in.
(15.9 mm)
D

5/16 in.
(23.8 mm)
E

3 in.
(76.2 mm)

F-750A  /  F-751A   Adjustable
Letter

Dimension
A

1-1/16 in.
(27 mm)
B

4-1/8 in.
(104.8 mm)
C

5/8 in.
(15.9 mm)
D

5/16 in.
(23.8 mm)
E

3 in.
(76.2 mm)

F-750 Series Flowmeter

  • Temperature: 100°F / 37°C at 0 pressure

  • Pressure: 75 psig / 10 BAR at 70°F / 21°C

  • Accuracy (full scale): ± 10%

  • Connections: PVC 1/4" gluing or clamping to flexible tubing
    (reducer adapters available for 1/8" tubing)

  • O-rings: Viton

  • Maximum Pressure Drop: 2 PSI
