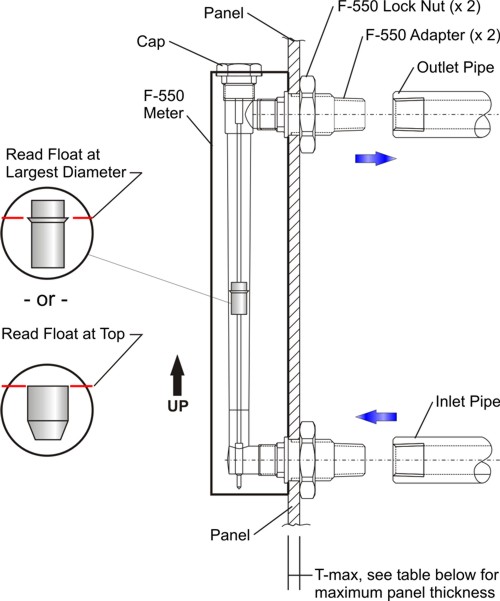

F-550 Panel Mount Rotameter Installation
|
|
|
 |
| Meter |
T-max, Maximum
panel thickness |
Recommended
thru hole size |
| F-55250xx |
1/2" |
11/16" |
| F-55375xx |
1/2" |
11/16" |
| F-55500xx |
1/2" |
11/16" |
| F-55376xx |
1/2" |
27/32" |
| F-55750xx |
13/16" |
1-21/64" |
| F-55100xx |
13/16" |
1-21/64" |
| F-55200xx |
13/16" |
1-21/64" |
|
|
Please note: Your Flowmeter will be clearly marked if you need to "Read
Float at Largest Diameter" or "Read Float at Top." |
|
Note: All
diagrams are strictly for guideline purposes only. Always consult an
expert before installing the Flowmeter on specialized systems. The
Flowmeter should be serviced by qualified persons only. |
