Chem-Feed, C-600 Diaphragm Pump

C-600 Series Chem-Feed® Diaphragm Pumps

Fixed Speed Diaphragm Pump

Economical and versatile.
All ball bearing, permanently lubricated gear motor for smooth, quiet, powerful operation.
Turndown Ratio is 27:1

C-600P Product Information

Double-ball inlet and outlet cartridge type check valves
Max feed rate
- 16.2 Gallons Per Hour
- 61.3 Liters Per Hour
Max pressure
- 125 PSI
Diaphragm material = Teflon® or EP
Easy access, side mounted mechanical feed rate adjustment
Exploded View / Parts List PDF
Tech. Data Sheet PDF
Instruction Manual PDF (PN 80000-017)
Dimensions
Larger Image

Formerly C-3000

C-600HV (High Volume) Product Information

Acrylic pump head
Max feed rate
- 47.1 Gallons Per Hour
- 178.3 Liters Per Hour
Max pressure
- 20 PSI
Diaphragm material = Ethylene-Propylene
O-ring material = Ethylene-Propylene
1/2" ID barbed tubing connections
Exploded View / Parts List PDF
Tech. Data Sheet PDF
Instruction Manual PDF (PN 80000-017)
Dimensions
Larger Image

Other Information:

Installation Drawings:

Other Information:

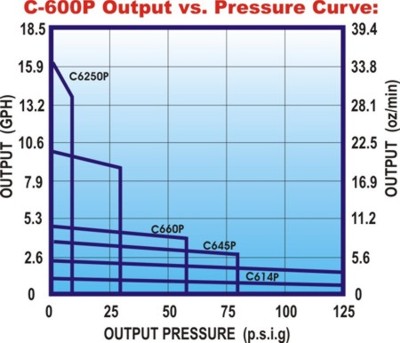

Pump Curve for the C-600P series pump:

Now you can buy C-600P pump parts online.

Listings and Certifications:

	Blue-White at NSF website.
	Blue-White at CSA website.
	International
	Motor UL recognized component (file #E131474) and meets UL 1004 and UL2111. Blue-White at UL website.

Caution: Always wear protective clothing, face shield, safety glasses and gloves when working on or near your metering pump.
Additional precautions should be taken depending on the solution being pumped. Refer to MSDS precautions from your solution supplier.

Note: All diagrams are strictly for guideline purposes only. Always consult an expert before installing the metering pump on specialized systems. The metering pump should be serviced by qualified persons only.
